Compex PS2216 1D Quick Install Manual

Quick Install Guide

Compex
16-Port 10/100 Mbps
Fast Ethernet
Desktop Switch
PS2216 1D
PS2216 6D(RoHS compliant)
M-0348-V1.7C
Version 1.7
1. Introduction

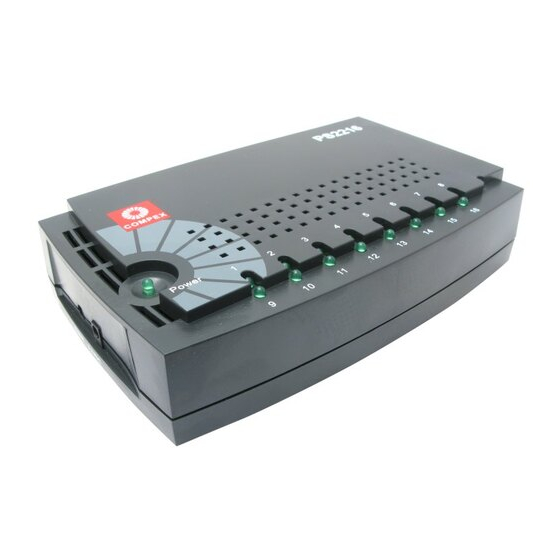

Figure 1
Ideal for home and small offices, this Fast Ethernet Switch provides 16
10/100Mbps ports capable of delivering full or half duplex transmission with
flow control. This cost-effective switch allows the setting up of priority ports,
trunking groups or VLAN groups. In addition, its full auto negotiation
functionality that self configures for the highest possible operation mode
between nodes, coupled with its collision-free packet switching capability
makes this a perfect device for your expanding network. The switch has a
feature that can be set to turn-off response to Winsmart from the Winsmart
utility.
2. Packaging Contents
Actual product appearance may slightly differ depending on the hardware
version.
•
1 x Compex PS2216
•
1 x Power Adapter
•
1 x Read-Me-First note
•
1 x Product CD (includes Remote Management Tool – "Winsmart"
utility & Winsmart QIG)
For more details on how to activate VLANs, Trunking and Priority Ports,
please refer to the "Winsmart" QIG on the Product CD.

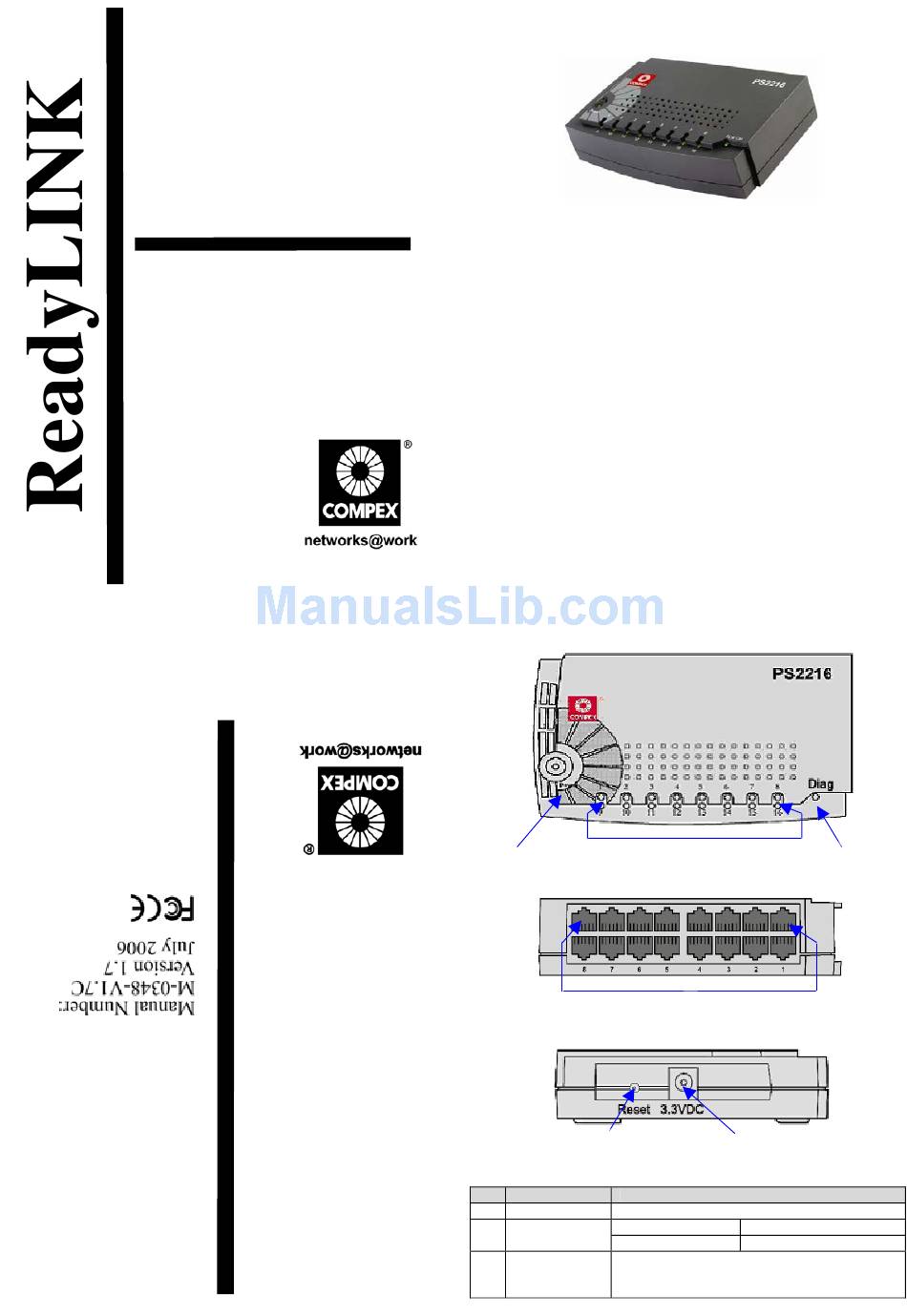

3. Panel Views and descriptions
1
Figure 2
Figure 3
6
Indicator
1 Power LED ON indicates switch is receiving power.
2 Port LED STEADY
BLINKING
3 Diag When power on, DIAG lights up for 1-2 second
then goes off. This indicates switch configuration
loaded successfully and switch startup normally.
Compex PS2216
2
Top View
4
Back Panel View
5
Figure 4 Side View
Description
Link
Activity
3
