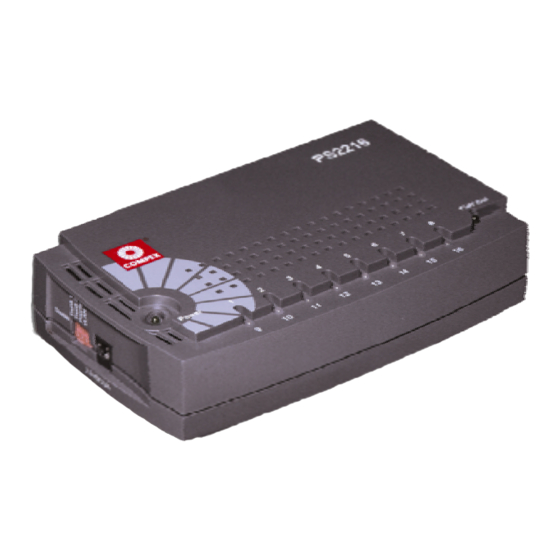

POCKET SWITCH PS2216
16-PORT COMPACT FAST ETHERNET SWITCH
The Compex PS2216 pocket switch is small in size but rich in features. The
WinSmart utility provided with PS2216 enables users to easily configure the
advance features of the switch such as Port-Based Virtual LAN, Port Trunking
and Port Priority making it the most feature rich switch in its category. The
Port-Based Virtual LAN feature allows setting up of 14 individual smaller
th
segments with the 9 & 16
feature not only improves network management, but enhances privacy of the
individual Virtual LAN. Port Trunking improves the up-linking bandwidth and
transfer speed between switches providing better performance for your
network. Port Priority gives quality of service to your network traffic like
video-on-demand services. It is the cost effective switch for small and
medium size offices.
High-Performance - With its backplane capacity of 3.2Gbps, data transfer is at
an average of 200 Mbps at each of the 16 ports at full duplex mode allowing
every node to perform at their maximum capability.
Segment your Network - The PS2216 switch is able to segment network into
14 individual virtual local area networks (VLAN). The 9
common port for all the Virtual LANs.
Cascading - Port Trunking provides the ability to scale up to a higher
bandwidth with the next layer of switch. Port Trunking feature enables uplinking
of 4 ports to another switch that ensure faster and higher data bandwidth.

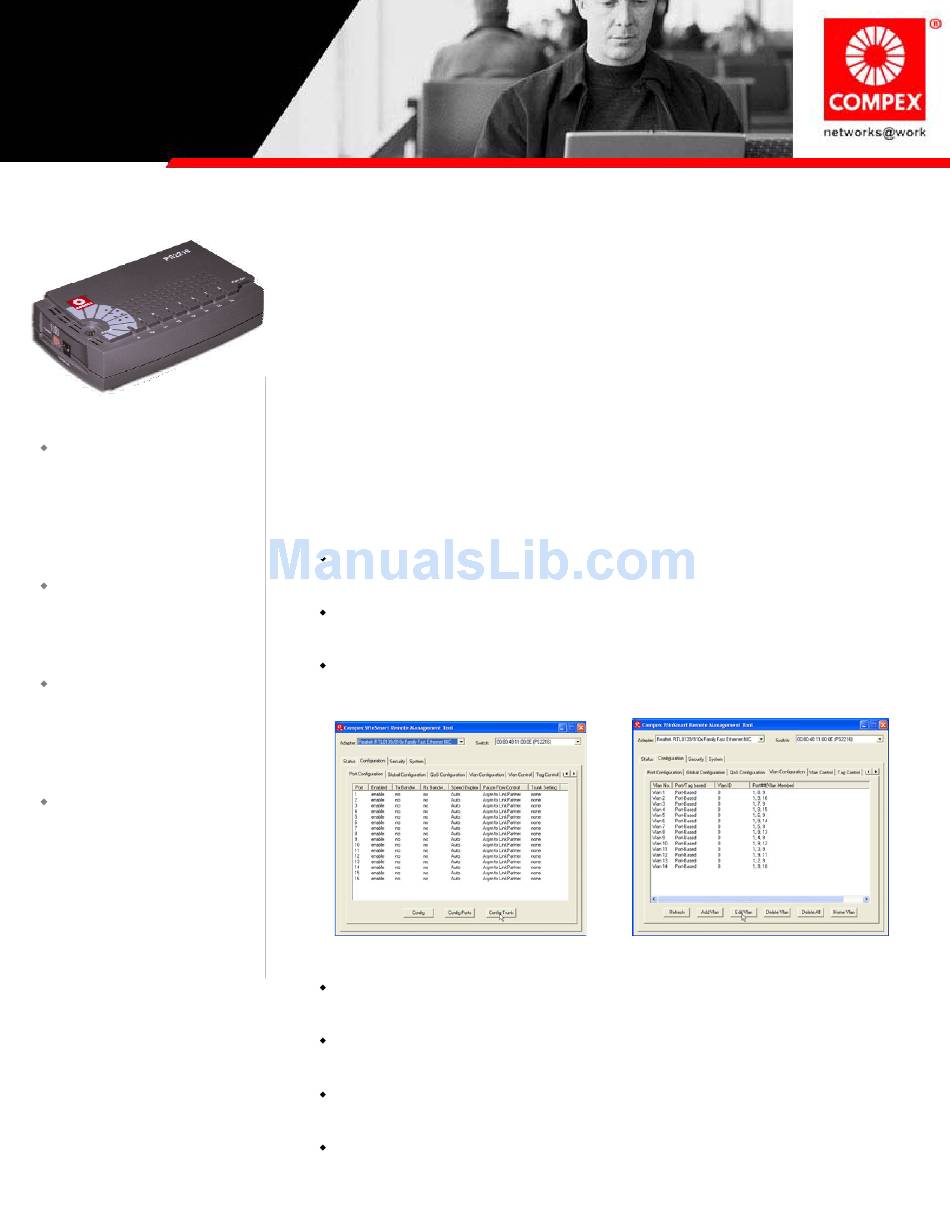

Fig. 1 Port VLAN Configuration Screenshot
Quality of Service - The Port Priority feature allows quality of service for
bandwidth-intensive
applications.
Plug and Play Operations - The PS2216 can operate out of the box with no
further configuration needed. Auto MDI/MDIX is featured in every port that
allows any type of Category 5 Ethernet cable to be used.
Switching Architecture - Full bandwidth, non-blocking and collision-free frame
forwarding enables data packets to be transfer at maximum performance
speed.
Port Priority - Giving quality of service to bandwidth-intensive network services
like video-on-demand.
th
port as the common port for all Virtual LANs. This
Fig. 2 Port Trunking Configuration Screenshot
network traffic like
th th
& 16 port being the
video-on-demand, database
