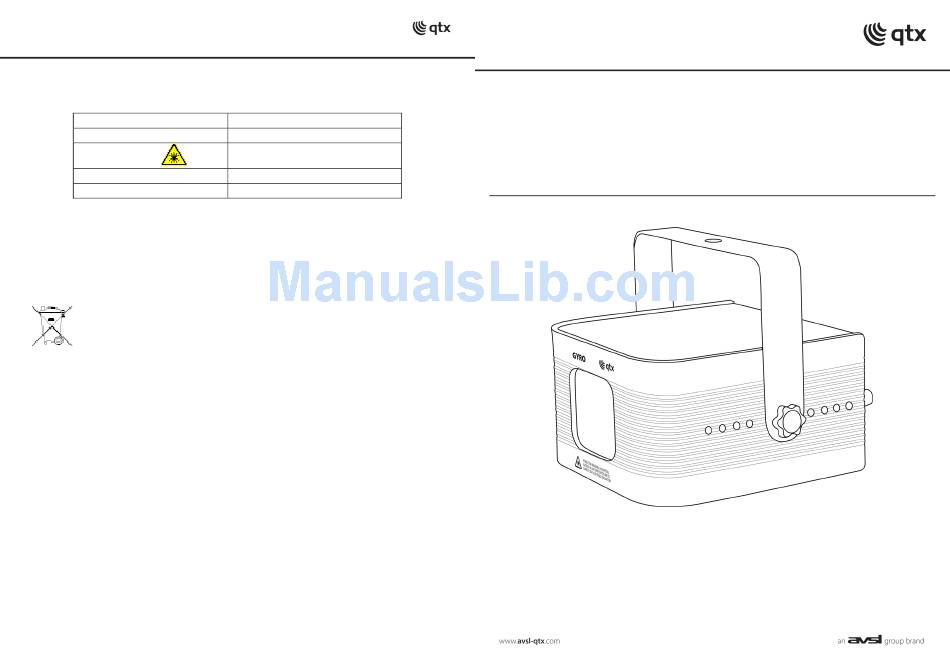

TECHNICAL SPECIFICATION
Voltage : 230Vac, 50/60Hz
Fuse : 2A Slow blow
Laser Class : 3B
Red Laser: 100mW 638nm
Green Power : 50mW 532nm
IMPORTANT NOTE: This product conformed to Laser & LED Safety standard
BSEN60825-1 2007 incorporating corrigendum 2008
DISPOSAL:
Please dispose of the unserviceable device according to the current statutory requirement
Errors and omissions excepted.
Copyright© 2012. AVSL Group Ltd.
Blue : 300mW 455nm
DMX Channels : 6
Dimensions : 190 x 190 x 110mm
Power Consumption : 45W
Weight : 2.4kg
152.761UK User Manual
IMPORTANT SAFETY NOTICE
Please read this manual before operating
VERSION 1.0

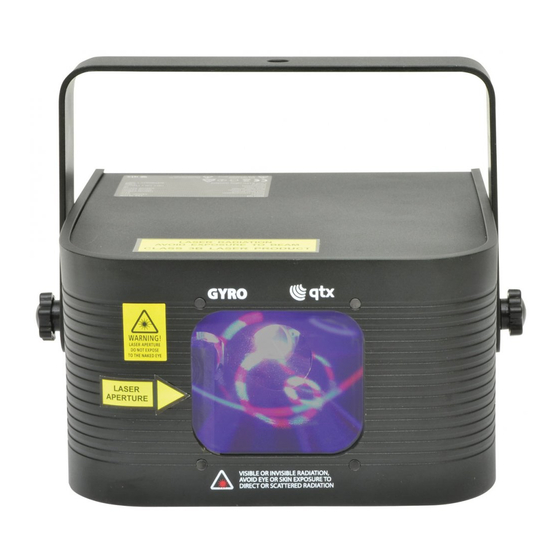

GYRO
RGB LASER
Order ref: 152.761UK
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Qtx GYRO
Summary of Contents for Qtx GYRO
- Page 1 TECHNICAL SPECIFICATION GYRO Voltage : 230Vac, 50/60Hz Blue : 300mW 455nm RGB LASER Fuse : 2A Slow blow DMX Channels : 6 Order ref: 152.761UK Dimensions : 190 x 190 x 110mm Laser Class : 3B User Manual Red Laser: 100mW 638nm...
-
Page 2: Dmx Channel
DMX CHANNEL DESCRIPTION VALUE 000-010 Blackout 011-062 Sound to light 063-127 Auto mode 1 (Mode) DMX 512 Select gobo (Only CH2 128-192 activated) DMX 512 Control mode (all other 190-255 channels activated) Laser Gobo select (ONLY when CH1 in 000-255 2 (X axis DMX Select gobo mode) rotation) - Page 3 The fixture is equipped with 3-pin XLR connectors for DMX input and output. The SE connectors are wired in parallel. Only use a shielded twisted-pair cable designed for 3-pin XLR- Thank you for purchasing this Gyro laser. plugs and connectors in order to connect the controller with the fixture or one fixture with another.
- Page 4 OPERATION FOR GYRO CAUTION • Please read this manual fully before installing or operating this product as it contains important safety information relating to its installation and operation. Press the “FUNC” button to enter setup mode followed by the “UP” & “DOWN” keys to select the mode you desire.
-
Page 5: Installation And Mounting Instructions
IMPORTANT INFOMATION: REAR PANAL GYRO LASER: This product is a Class 3B laser and should only be installed and used by persons who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of... - Page 6 VERTICAL BIRDS EYE VIEW: LAYOUT GYRO LASER: 1. Mounting bracket 2. Thumb screw 3. Laser Aperture 152.761UK User Manual 152.761UK User Manual...
-
Page 7: Troubleshooting
TROUBLESHOOTING VERTICAL CROSS SECTIONAL VIEW: If the unit is not functioning properly Check that the IEC cable is connected properly Check that the mains power switch is on. Check the fuse hasn’t blown (see below guide) Check that the unit isn’t in DMX mode. Check the safety key is turned to the on position. -
Page 8: Package Contents
CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE PACKAGE CONTENTS: CONNECTED: Please check the contents to ensure that the product has been received in good condition. Use the supplied IEC lead to connect to the main power supply as follows: Laser x 1unit User’s Guide x 1pc Wire...
