TinyMover
Item ref: 150.462UK
User Manual
2-in-1 40W LED Mini Moving Head
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.

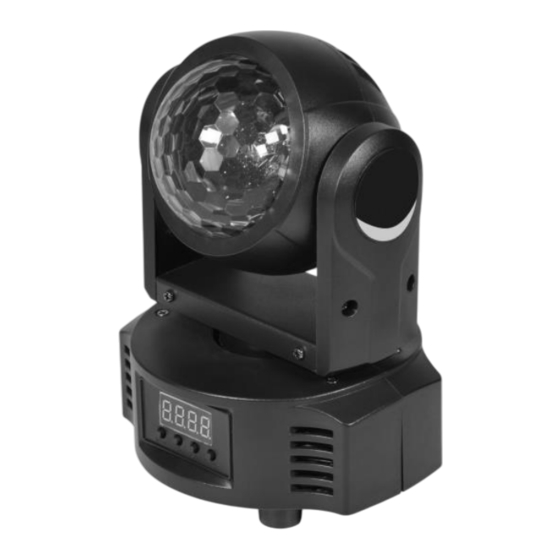

Perfect for smaller venues, this compact yet surprisingly bright 2-in-1 mini moving head features RGBW
PAR lights and ball effect. Easily operated using internal auto or sound to light programs or by 14/18
channel DMX connection for more precise control, the TinyMover can be free standing or mounted to
trussing using the supplied brackets and provides bright and colourful coverage for such a small unit.
In the box:
Your TinyMover should arrive with you in a single carton in good condition. The carton should contain
1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event
of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then
check the unit before continuing use.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
www.avsl.com
150.462UK User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TinyMover and is the answer not in the manual?

Questions and answers

Related Manuals for Qtx TinyMover

Summary of Contents for Qtx TinyMover

  • Page 1 In the box: Your TinyMover should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket, 1 x UK IEC mains lead and 1 x manual.

  • Page 2: Led Display

    Placement: • Use the included mounting bracket to fix to a stand or lighting truss. • Keep away from damp or dusty environments. • Ensure adequate air-flow around the fixture housings. • Ensure adequate access to controls and connections. • Do not aim LED or laser output directly into line of sight, as this can result in eye injury.

  • Page 3: Manual Control Menu

    DMX mode: The TinyMover can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit.

  • Page 4: Specifications

    18 Channel: Channel Value Description 0-255 PAN adjust 0-255 PAN fine adjust 0-255 Tilt adjust 0-255 Tilt fine adjust 0-255 Motor speed 0-255 Master dimmer 0-255 LED ball red dimmer 0-255 LED ball green dimmer 0-255 LED ball blue dimmer 0-255 LED ball white dimmer 0-255...
  • Page 5 Overheating/ Check DMX controller is on correct fixture/page cutting out Check master dimmer value Check correct DMX address is set Check DMX connection and leads Ensure adequate ventilation and unit is not too close to a heat source This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
