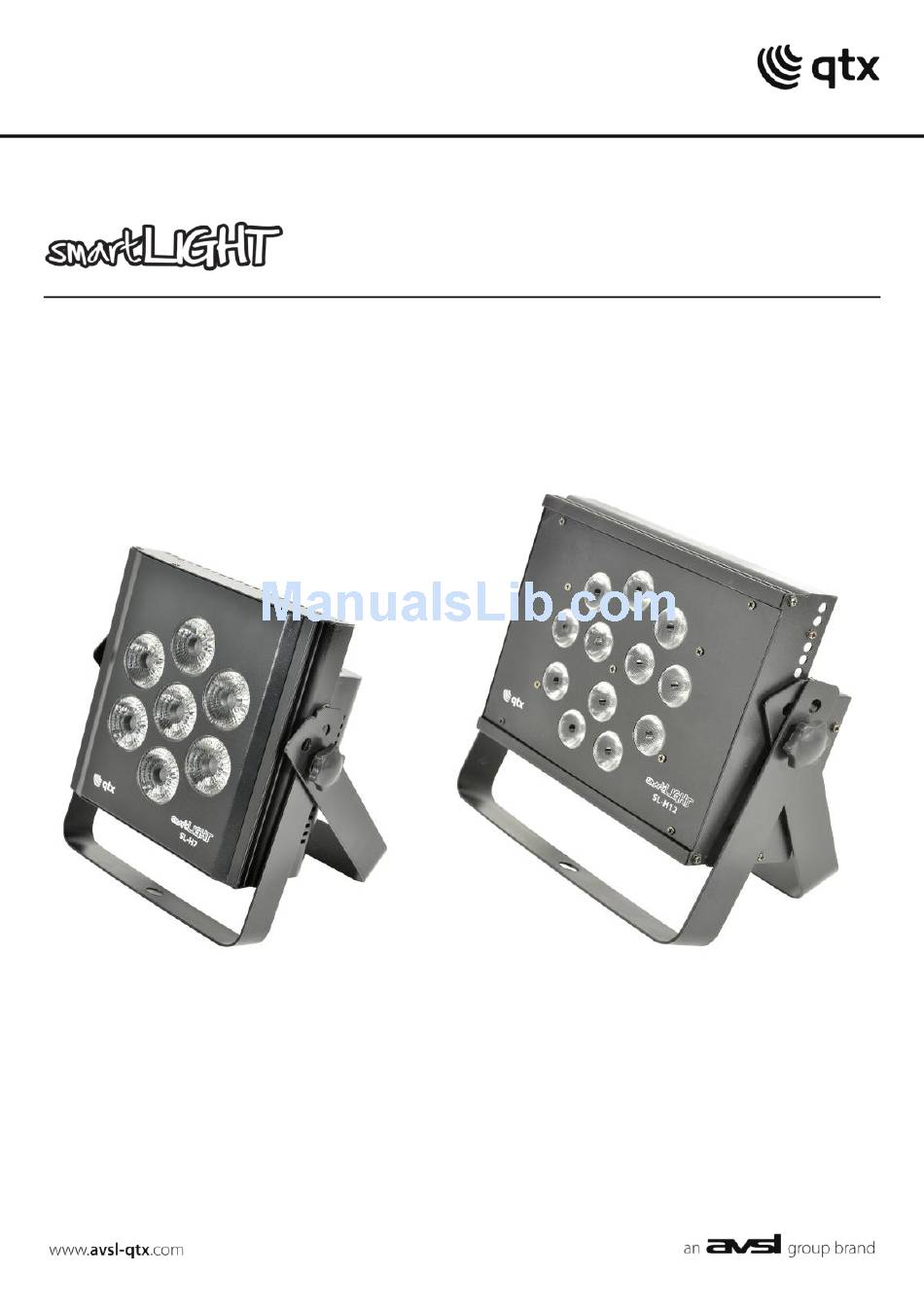

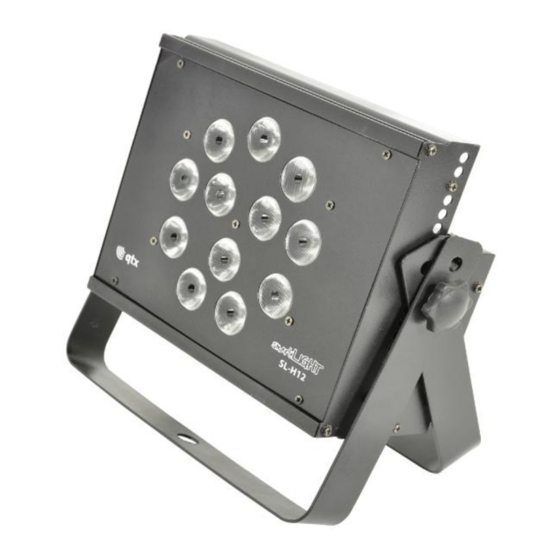

- Page 1 SL-H7 / SL-H12 Item ref: 154.020UK, 154.021UK RGBWAV Lighting Fixtures...
- Page 2 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the SmartLIGHT series 6-colour lights as part of your effect lighting setup. These fixtures use RGBWAV LEDs to provide a seamless mix of colours including pastel and warm colours and a violet component with UV content.
- Page 3 Setting up Install the SL-H7 or SL-H12 by using the mounting bracket on trussing or as a floor stand. Experiment with positioning and distance to get the best coverage for the area to be lighted. For DMX or master/slave control, link DMX out to DMX in using good quality DMX leads. Connect to mains using the appropriate IEC lead, checking that the supply voltage is correct.
-
Page 4: Dmx Operation
Static colours Auto and Sound programs Warm White Colour jump cycling through CL01 to CL15 Colour scroll through deep colours Green Orange Colour scroll through pastel colours Blue Pink Colour fade in / fade out ...
