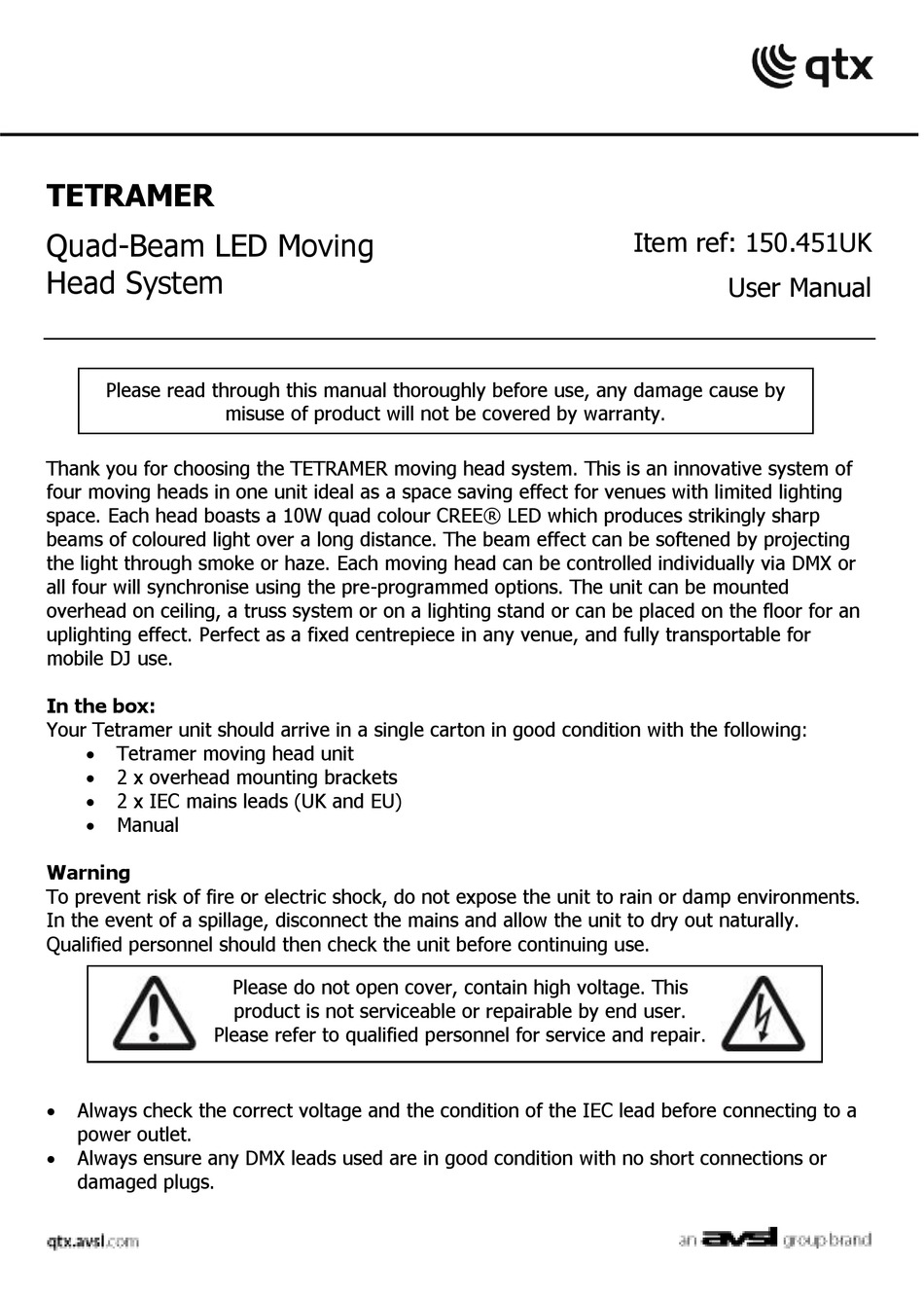

Qtx TETRAMER User Manual

TETRAMER
Quad-Beam LED Moving
Head System
Please read through this manual thoroughly before use, any damage cause by

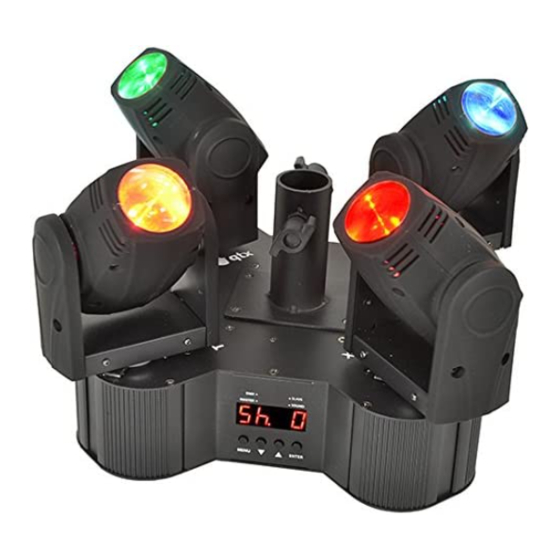

Thank you for choosing the TETRAMER moving head system. This is an innovative system of
four moving heads in one unit ideal as a space saving effect for venues with limited lighting
space. Each head boasts a 10W quad colour CREE® LED which produces strikingly sharp
beams of coloured light over a long distance. The beam effect can be softened by projecting
the light through smoke or haze. Each moving head can be controlled individually via DMX or
all four will synchronise using the pre-programmed options. The unit can be mounted
overhead on ceiling, a truss system or on a lighting stand or can be placed on the floor for an
uplighting effect. Perfect as a fixed centrepiece in any venue, and fully transportable for
mobile DJ use.
In the box:
Your Tetramer unit should arrive in a single carton in good condition with the following:
 Tetramer moving head unit

2 x overhead mounting brackets
 2 x IEC mains leads (UK and EU)
 Manual
Warning
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments.
In the event of a spillage, disconnect the mains and allow the unit to dry out naturally.
Qualified personnel should then check the unit before continuing use.
Please refer to qualified personnel for service and repair.
 Always check the correct voltage and the condition of the IEC lead before connecting to a
power outlet.
 Always ensure any DMX leads used are in good condition with no short connections or
damaged plugs.
misuse of product will not be covered by warranty.
Please do not open cover, contain high voltage. This
product is not serviceable or repairable by end user.
er or professional when unit malfunction.
Item ref: 150.451UK
User Manual
