AT800 Series User Manual

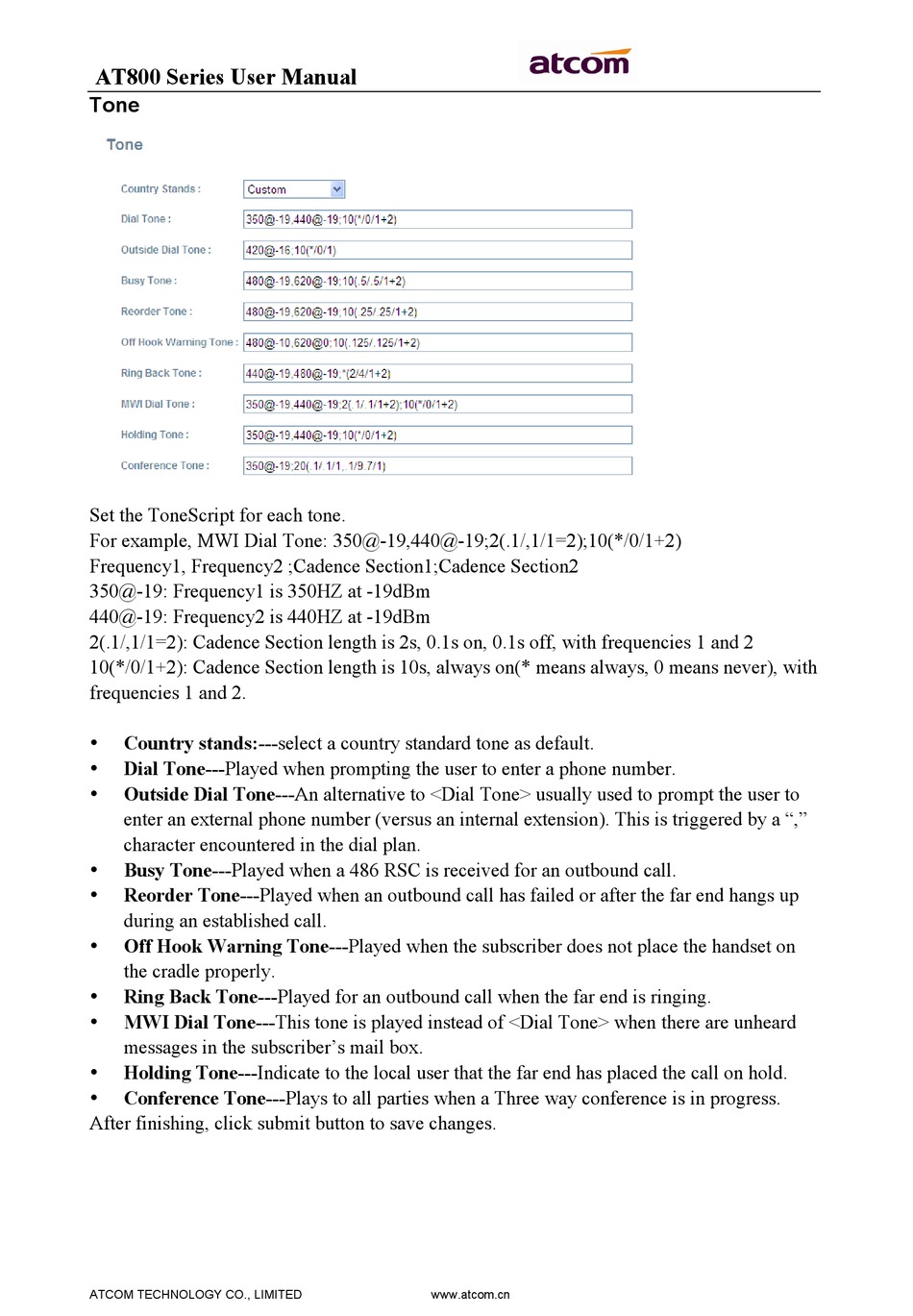

Tone

Set the ToneScript for each tone.
For example, MWI Dial Tone: 350@-19,440@-19;2(.1/,1/1=2);10(*/0/1+2)
Frequency1, Frequency2 ;Cadence Section1;Cadence Section2
350@-19: Frequency1 is 350HZ at -19dBm
440@-19: Frequency2 is 440HZ at -19dBm
2(.1/,1/1=2): Cadence Section length is 2s, 0.1s on, 0.1s off, with frequencies 1 and 2
10(*/0/1+2): Cadence Section length is 10s, always on(* means always, 0 means never), with
frequencies 1 and 2.
 Country stands:---select a country standard tone as default.
 Dial Tone---Played when prompting the user to enter a phone number.
 Outside Dial Tone---An alternative to <Dial Tone> usually used to prompt the user to
enter an external phone number (versus an internal extension). This is triggered by a ","
character encountered in the dial plan.
 Busy Tone---Played when a 486 RSC is received for an outbound call.

Reorder Tone---Played when an outbound call has failed or after the far end hangs up
during an established call.

Off Hook Warning Tone---Played when the subscriber does not place the handset on
the cradle properly.

Ring Back Tone---Played for an outbound call when the far end is ringing.
 MWI Dial Tone---This tone is played instead of <Dial Tone> when there are unheard
messages in the subscriber's mail box.
 Holding Tone---Indicate to the local user that the far end has placed the call on hold.
 Conference Tone---Plays to all parties when a Three way conference is in progress.
After finishing, click submit button to save changes.
