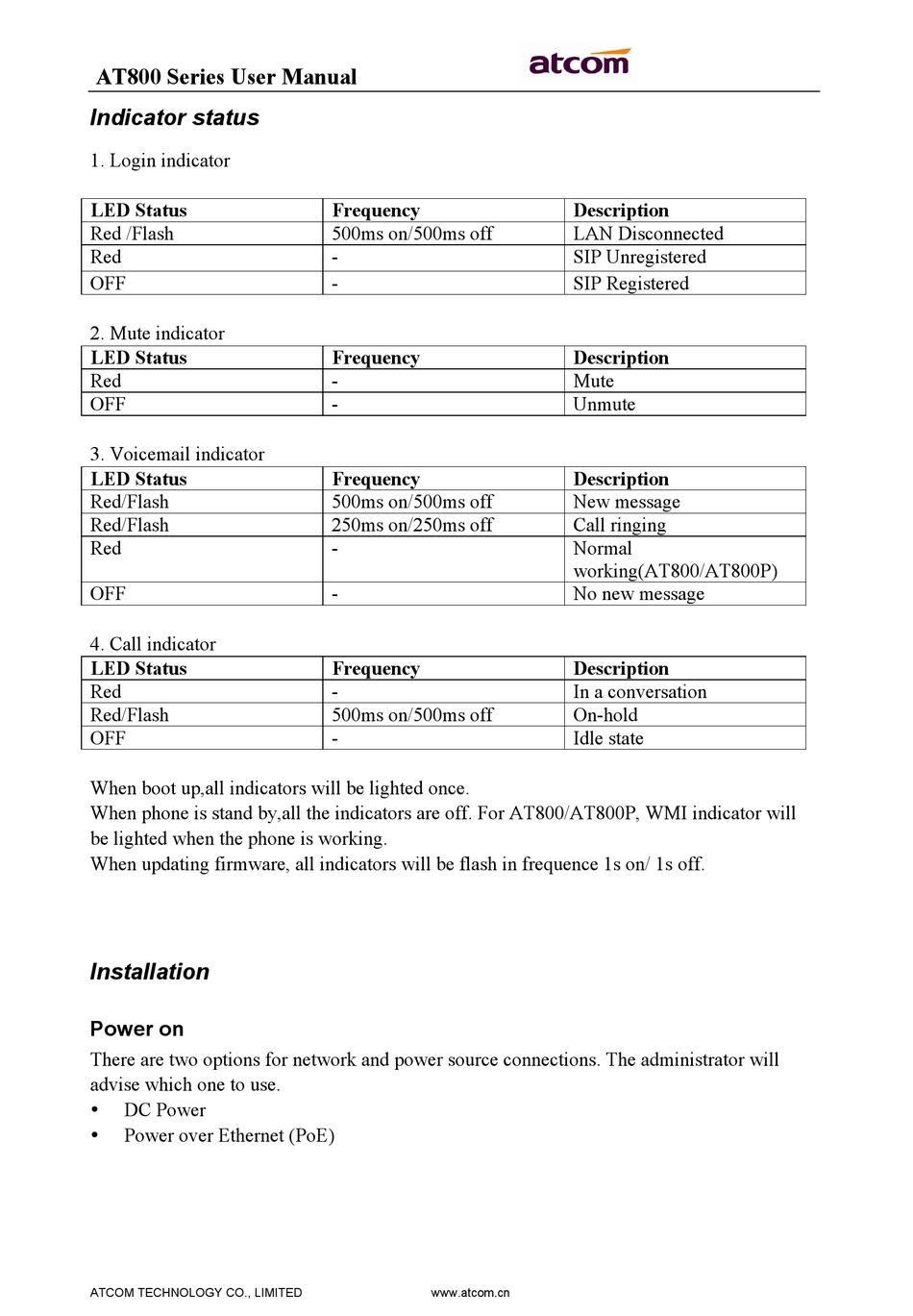

Indicator status

1. Login indicator
LED Status
Red /Flash
Red
OFF
2. Mute indicator
LED Status
Red
OFF
3. Voicemail indicator
LED Status
Red/Flash
Red/Flash
Red
OFF
4. Call indicator
LED Status
Red
Red/Flash
OFF
When boot up,all indicators will be lighted once.
When phone is stand by,all the indicators are off. For AT800/AT800P, WMI indicator will
be lighted when the phone is working.
When updating firmware, all indicators will be flash in frequence 1s on/ 1s off.

Installation

Power on

There are two options for network and power source connections. The administrator will
advise which one to use.

DC Power
 Power over Ethernet (PoE)
