Sip Register - ATCOM AT800DP User Manual

AT800 Series User Manual

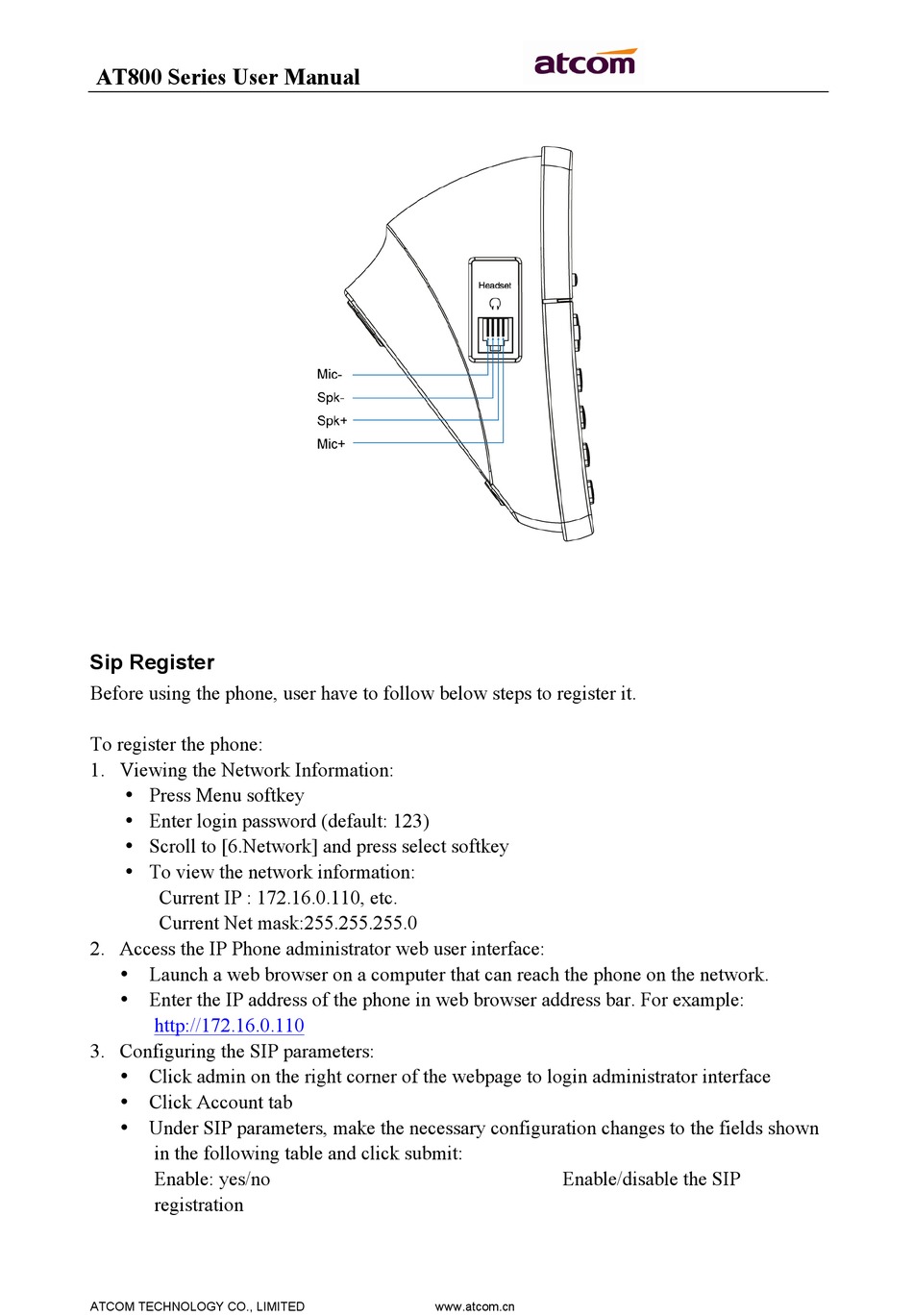

Sip Register

Before using the phone, user have to follow below steps to register it.
To register the phone:
1. Viewing the Network Information:
 Press Menu softkey
 Enter login password (default: 123)
 Scroll to [6.Network] and press select softkey
 To view the network information:
Current IP : 172.16.0.110, etc.
Current Net mask:255.255.255.0
2. Access the IP Phone administrator web user interface:
 Launch a web browser on a computer that can reach the phone on the network.
 Enter the IP address of the phone in web browser address bar. For example:
http://172.16.0.110
3. Configuring the SIP parameters:
 Click admin on the right corner of the webpage to login administrator interface
 Click Account tab
 Under SIP parameters, make the necessary configuration changes to the fields shown
in the following table and click submit:
Enable: yes/no
registration
ATCOM TECHNOLOGY CO., LIMITED
Enable/disable the SIP
www.atcom.cn
