PR Lighting XR 230 SPOT PR-2200 Manual

Hide thumbs Also See for XR 230 SPOT PR-2200:
Table of Contents

Advertisement

Quick Links

See also: User Manual

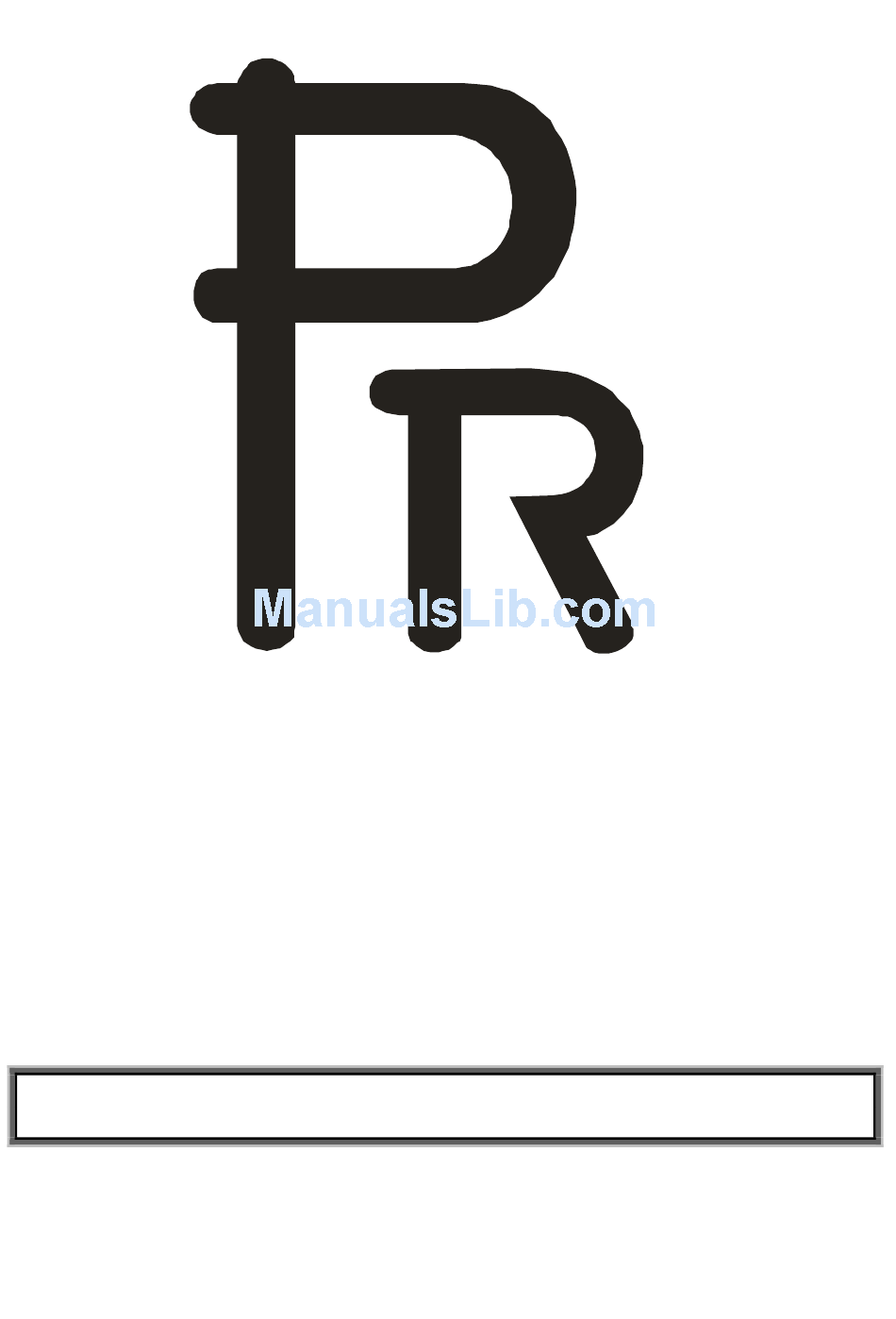

XR 230 SPOT
PR-2200
This product manual contains important information about the safe installation and use of this projector. Please
read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-light ing.com
1/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR 230 SPOT PR-2200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XR 230 SPOT PR-2200

Summary of Contents for PR Lighting XR 230 SPOT PR-2200

  • Page 1 PR-2200 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-light ing.com 1/23...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS STAND-ALONE MODE MASTER/SLAVE MODES OPERATION MENU ERROR MESSAGE REPLACING GOBOS DMX PROTOCOL MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR Warning Safety Cord Please run the safety cord Clamp through two holes for safety. Handle Digital Control Panel Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp.

  • Page 5: Power Supply – Mains

    POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before connection with mains power, make sure that the voltage and frequency marked on the rating plate of the projector match what are supplied. It is recommended that each projector be supplied separately so that they may be individually switched on and off. IMPORTANT: It is essential that each projector is correctly earthed (yellow/green twin wire) and the electrical installation conforms to all relevant standards.

  • Page 6: Dmx Terminator

    DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 7: Stand-Alone Mode

    STAND-ALONE MODE Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector will run in Stand-Alone mode automatically. MASTER/SLAVE MODE Without using a controller, many projectors can run synchronously in the Master/Slave mode by linking them with each other.
  • Page 8 When DMX is Lost Hold Last value Fan Operate Mode Normal Fan Operate Mode (Quieter) (Hot Environment) Factory Settings Fixture Type (Press button (WARNING: Never change the fixture type or the system will be DOWN/UP/ENTER at the same damaged!) time to enter the sub-menu) Color Positions STEPPED Color Positions...
  • Page 9 Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Full Display Contrast Display Contrast XX(1~21) Language= English Display Language Language= Chinese Lamp Hours= Reset Lamp Hours Lamp Hours Are You Sure(UP/DOWN) Total Hours= Total Hours Display Board=...
  • Page 10 X Fault Y Fault Factory Setup Factory Setup Factory Setup Test Modes Self Test Self Test Self Test On Command Sent Lamp Status S= X C= X Lamp On Lamp Manual Control Turn Lamp On Turn Lamp Off Wireless Mode XLR First Wireless Mode XLR Only...

  • Page 11: Error Message

    Head Fan Test Head Fan Test Head Fan Test Head Fan Test Head Fan Test Head Fan Test Head Fan Test Head Fan Test Head Fan Test Box Fan Test Box Fan Test Box Fan Test Box Fan Test Box Fan Test Box Fan Test Box Fan Test Box Fan Test...
  • Page 12 Sensor Err S2-M1 Rotating Gobo wheel (2# drive board motor 1) error Sensor Err S2-M2 Gobo rotation (2# drive board motor 2) error Sensor Err S2-M3 Effect Wheel (2 drive board motor 3) error Sensor Err S3-M1 Focus (3# drive board motor 1) error Sensor Err S3-M2 Zoom(3# drive board motor 2) error Sensor Err S3-M3...

  • Page 13: Replacing Gobos

    REPLACING GOBOS rotating gobo wheel Replacement of rotating gobos: disconnect from power, loosen the four fastfit screws of the side cover rotator like figure 1, pull out the rotators by finger as figure 2. figure 2 rotator garter spring gobo figure 1 DMX PROTOCOL Short...
  • Page 14 Yellow fine 000-255 Yellow in 16 Bit Magenta 000-255 Magenta ( linear 0~100%) Magenta fine Magenta in 16 Bit 000-255 000-008 White 009-016 Color 1 017-024 Color 2 025-032 Color 3 033-040 Color 4 041-048 Color 5 049-056 Color 6 057-064 Color 7 065-073...
  • Page 15 93-99 Gobo 13 100-106 Gobo 14 107-113 Gobo 15 114-120 Gobo 16 121-127 Gobo 17 128-146 Rotation (clockwise from slow to fast) Reverse Rotation(anti-clockwise from 147-165 slow to fast) 166-170 Shake of Gobo 1 171-175 Shake of Gobo 2 176-180 Shake of Gobo 3 181-185 Shake of Gobo 4...

  • Page 16: Maintenance

    232-239 Shake of Gobo 7 240-247 Shake of Gobo 8 248-255 Shake of Gobo 9 000-128 Gobo Indexing (0°-540°) 129-188 Rotation (Clockwise from slow to fast) Gobo Rotation 189-195 Stop Reverse rotation (Anti-Clockwise from 196-255 slow to fast) Gobo Rotation 0-255 Gobo Rotation in 16 Bit Fine...

  • Page 17: Lubrication

    LUBRICATION To ensure the smooth rotation of the rotating gobos and movement of the lens for focusing, it is recommended that the bearings for the rotating gobos and the 2 sliding tracks for the focusing lens holder be lubricated every two months. Use only high quality, high-temperature grease .

  • Page 18: Technical Data

    TECHNICAL DATA VOLTAGES: 100V~240V AC，50/60Hz POWER CONSUMPTION: 350W@ 220V LAMP: OSRAM SIRIUS HRI 230W Colour Temperature 8000K Manufacturers Rated Lamp Life 3000hours COLOURS: CMY linear color mixing system with Marco 1 Color Wheel with 14colors plus white With variable speed bi-directional rainbow effect Stepping/linear color changing FIXED GOBO WHEEL: 1 Fixed gobo wheel : 17gobos+ White...
  • Page 19 SHUTTER: Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT: Pan 540º, Tilt 270º with auto position correction BEAM ANGLE: Zoom: 3.8°-42°, linearly adjustable CONTROL: DMX512, 3 pin and 5 pin interfaces 20 channels in short mode, 25channels in standard mode and 31 channels in extended mode Self-test mode OTHER FUNCTIONS: Adjustable Pan &...
  • Page 20 42° Lux 3.8°Lux 13402 5956 3350 1489 53607 2144 3.8° 42° DISTANCE(m) 1.99 DIAMETER(m) 0.33 1.65 0.66 0.99 1.32 DIAMETER(m) 23.77 3.96 19.81 7.92 11.89 15.85 20/23...
  • Page 21 ELETRICAL DIAGRAM: 21/23...
  • Page 22 omponent Order Codes NAME PART NO. QUANTITY REMARK Pan Motor 030040233 Tilt Motor 030040233 Dimmer/Strobe Motor 030040213 CYM Motor 030040228 Rotating Gobo Wheel Motor 030040231 Fixed Gobo Wheel Motor 030040221 Color Wheel Motor 030040221 Iris Motor 030040230 Rotator Motor 030040221 Focus Motor 030040232 030040221...
  • Page 23 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020212 Version: 20140108 (Preliminary） 23/23...
