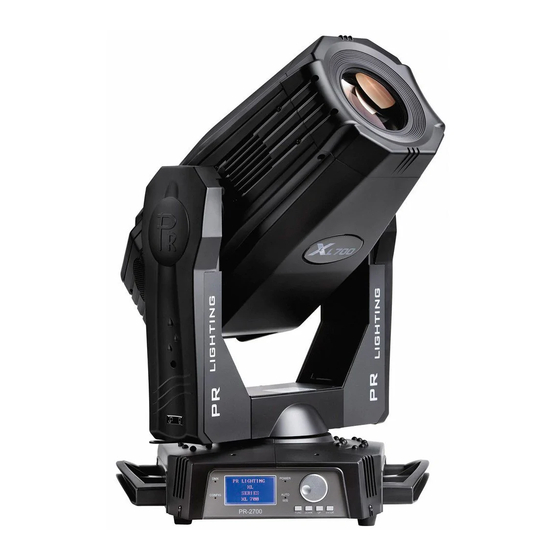

XL 700
PR-2700
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XL 700

Summary of Contents for PR Lighting XL 700

  • Page 1 XL 700 PR-2700 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support a weight of XL 700.
  • Page 5 Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XL 700 accepts digital control signals in protocol DMX512 (1990).

  • Page 6: Dmx Terminator

    TO SET THE DMX START ADDRESS Each XL 700 must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.
  • Page 7 Press button FUNC to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has been enabled. Press button FUNC, it will return to the upper menu one by one.

  • Page 8: Operation Menu

    XL 1200 FS time to enter the sub-menu) system will be damaged!) Fixture type= XL 1200 Wash Fixture type= XL 700 Wash Fixture type= XL 1800 Colour Positions Option Settings STEPPED Colour Positions Colour Positions...
  • Page 9 CMY Invert CMY Invert CMY Invert Defaults Defaults Defaults Restore Defaults Display On Always Display Mode Display Off After Delay Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Dimming Display Options Disp Dim Level Disp Dim Level...
  • Page 10 Self Test Self Test self test Status = XXX Lamp Status Lamp Manual Control = Control Turn Lamp On Turn Lamp Off 10/24...

  • Page 11: Error Messages

    ERROR MESSAGES In the course of launch, XL 700 examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 CYM-cyan (1# drive board motor 1) error Sensor Err S1-M2...

  • Page 12: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-010 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-255 Open 000-007 Black Dimmer 008-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-016 White 017-035...
  • Page 13 152-157 Rainbow rotation speed 5 158-163 Rainbow rotation speed 6 164-169 Rainbow rotation speed 7 170-175 Rainbow rotation speed 8 176-181 Rainbow rotation speed 9 182-187 Rainbow rotation speed 10 188-195 Stop in current position Rainbow reverse rotation speed 196-201 1(slowest) 202-207 Rainbow reverse rotation speed 2...
  • Page 14 205-207 Gobo 3 shake 4（fastest） 208-210 Gobo 4 shake 1(slowest) 211-213 Gobo 4 shake 2 214-216 Gobo 4 shake 3 217-219 Gobo 4 shake 4（fastest） 220-222 Gobo 5 shake 1(slowest) 223-225 Gobo 5 shake 2 226-228 Gobo 5 shake 3 229-231 Gobo 5 shake 4（fastest）...
  • Page 15 Fine 000-051 Clear 052-102 103-153 Prism / Frost Frost 154-204 Prism 1 205-255 Prism 2 000-120 Prism index （0~540°） 121-127 Reverse rotation speed 1 (slowest) 128-135 Reverse rotation speed 2 136-143 Reverse rotation speed 3 144-151 Reverse rotation speed 4 152-159 Reverse rotation speed 5 160-167...

  • Page 16: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 18: Technical Data

    TECHNICAL DATA VOLTAGES: 100V/120V/200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 830W@220V LAMP: PHILIPS MSR 700 SA/2 DE Colour Temperature 7500°K Socket SFc10-4，double ended Manufacturers Rated Lamp Life 750 Hours replacement OSRAM SharXS HTI 700 W/D4/60 Colour Temperature 6000°K Socket SFc10-4，double ended Manufacturers Rated Lamp Life 750 Hours replacement COLOURS: Smooth CYM colour mixing system with macros...
  • Page 19 FOCUS: DMX controlled focus DIMMER: 0-100% linearly adjustable SHUTTER: Double shutter blades, 0.3~12 F.P.S Macros HEAD MOVEMENT: Pan 450º, Tilt 270º with auto position correction BEAM ANGLE: 12°～34°, linearly adjustable CONTROL: DMX512, 3 pin interface 20 channels in short mode, 24 channels in standard mode, and 31 channels in extended mode. Self-test mode OTHER FUNCTIONS: Adjustable Pan &...
  • Page 20 SIZES: See at below LIGHT OUTPUT: 34° （ lux ） 3220 12° （ lux ） 23260 5810 2580 1450 DISTANCE (m) 1.07 2.14 3.21 4.28 5.35 12° DIAMETER (m) 34° DIAMETER (m) 3.03 6.06 9.09 12.12 15.15 20/24...
  • Page 21 DMX-SENS2 DMX-SENS1 LED4 LED1 LED3 LED2...

  • Page 22: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK POWER SUPPLY 190010098 MAINS FILTER 193020008 20A 115/250VAC THERMOSTAT 190010035 120℃ 16A/250V 16A 250V/20A 125VAC SWITCH 190010050 BALLAST 040070081 MHS700A5Z RC IGNITOR 040090043 575~1200W LAMP 100050061 MSR 700W SA/2 DE TILT DRIVE BELT 290151241 HTD-750-3M PAN DRIVE BELT...
  • Page 23 23/24...
  • Page 24 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 321010256 Last Revision: 28:05:2007 24/24...
