  • Page 1 B2-SUB Manual (3.2 EN)
  • Page 2 EU conformity of loudspeakers (CE symbol)..........8 WEEE Declaration (Disposal)................8 General Information B2-SUB Manual Version 3.2 EN, 03/2010, D2091.E .03 Copyright © 2008 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference.

  • Page 3: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. B2-SUB Manual (3.2 EN) Safety precautions - 1...

  • Page 4: B2-Sub

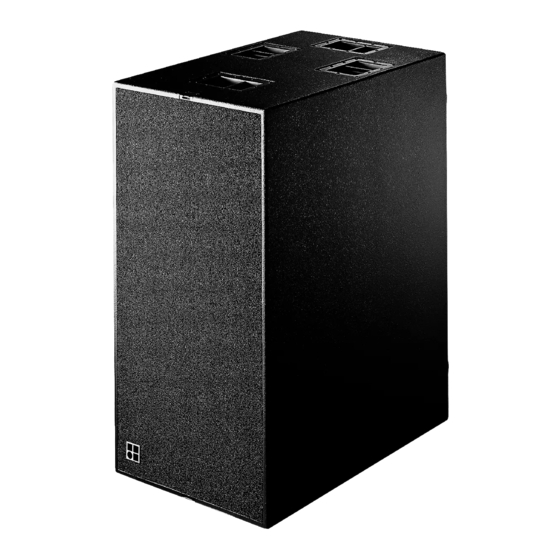

    B2-SUB The B2-SUB is an actively driven subwoofer which uses a pair of 18" LF drivers mounted in a bandpass horn cabinet. The B2-SUB cabinet is constructed from marine plywood and has an impact resistant paint finish. The front of the loudspeaker cabinet is fitted with a rigid metal grill covered with a replaceable acoustically transparent foam.

  • Page 5: Operation With D12

    B2-SUB cabinet to be driven by the respective channel. Controller settings In standard mode the B2-SUB can be used as subwoofer for the d&b C- and Q-Series systems (CUT mode). The upper cut-off frequency of 100 Hz (like Q-SUB) is lower than the cut-off frequency of an A1 mainframe with B2 Controller, which was tuned for the use with the d&b...

  • Page 6: Operation With A1

    Operation with A1 One B2-SUB cabinet can be driven by a single A1 mainframe fitted with B2-CO I N F R A a B2-SUB controller module. In standard mode the A1/B2 system is dedicated for the use with d&b F2 systems.

  • Page 7: Technical Specifications

    ..............NL8 (Z0056.600): 1+/1– (Pin 3–: SenseDrive) ..............NL8 (Z0056.601): 4+/4– (Pin 3–: SenseDrive) optional....................1 x CACOM (A1) Pin assignments printed on the controller module rear panel Weight......................102 kg (225 lb) Fig. 7: B2-SUB cabinet dimensions in mm [inch] B2-SUB Manual (3.2 EN) Page 7 of 8...

  • Page 8: Manufacturer's Declarations

    Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to - B2-SUB Z0056 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
