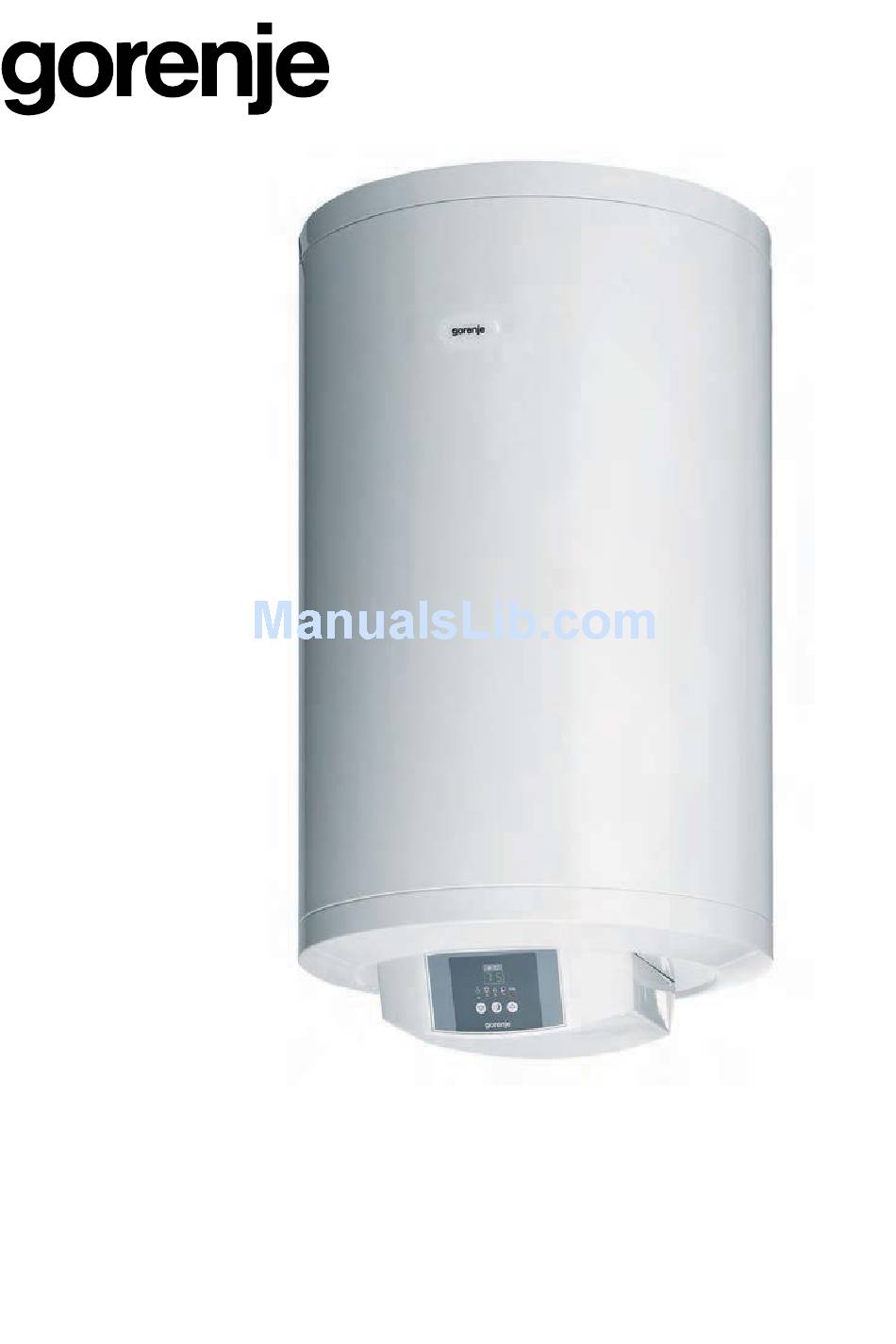

- Page 1 GBFU 50-150EDD/V9...
- Page 2 Dear buyer, we thank you for purchase of our product. PRIOR TO INSTALLATION AND FIRST USE OF THE ELECTRIC WATER HEATER, PLEASE CAREFULLY READ THESE INSTRUCTIONS. This water heater has been manufactured in compliance with the relevant standards and tested by the relevant authorities as indicated by the Safety Certificate and the Electromagnetic Compatibility Certificate.
- Page 3 TECHNICAL PROPERTIES OF THE APPLIANCE Type GB 50 GB 80 GB 100 GB 120 GB 150 GBFU 50 GBFU 80 GBFU 100 GBFU 120 GBFU E150 Model EDD/V9 EDD/V9 EDD/V9 EDD/V9 EDD/V9 Volume [ l ] Rated pressure [ MPa ] Weight / Filled with water [ kg ] 24/74 30/110...
- Page 4 In case the existing plumbing does not enable you to pipe the dripping water from the return safety valve into the drain, you can avoid the dripping by installing a 3-litre expansion tank on the inlet water pipe of the boiler. In order to provide correct operation of the relief valve, periodical inspections of the relief valve must be carried out by the user.
- Page 5 CAUTION: Prior to each reach in the inner of the water heater it must absolutely be disconnected from the electric network! OPERATION AND MAINTENANCE After connecting to water and power supply, the heater is prepared for use. The water heater features an that enables of water temperature of in water heater tank. The electronic regulator allows manual adjustment of temperature in range from 35ºC to 85ºC, settings to cost saving operation mode and temperature adjustment to prevent freezing.
- Page 6 Manual temperature setting: - Use the key and select the operating mode (yellow control lamp under is on). - The display always shows the last setting of the water temperature; except on first turn on of appliance when factory setting 35ºC is displayed. - Use the key to select new temperature.
- Page 7 display E4 – low temperature, freezing (water heater doesn’t operate) display E5 – overheating (temperature > 100ºC) – (failure of electronic regulator) Freezing protection: When the water heater is not in use for longer periods of time, it should be protected from freezing by setting the temperature to .
- Page 8 Gorenje 02/2009 290469...
