Summary of Contents for Matrox Millenium II for Mac

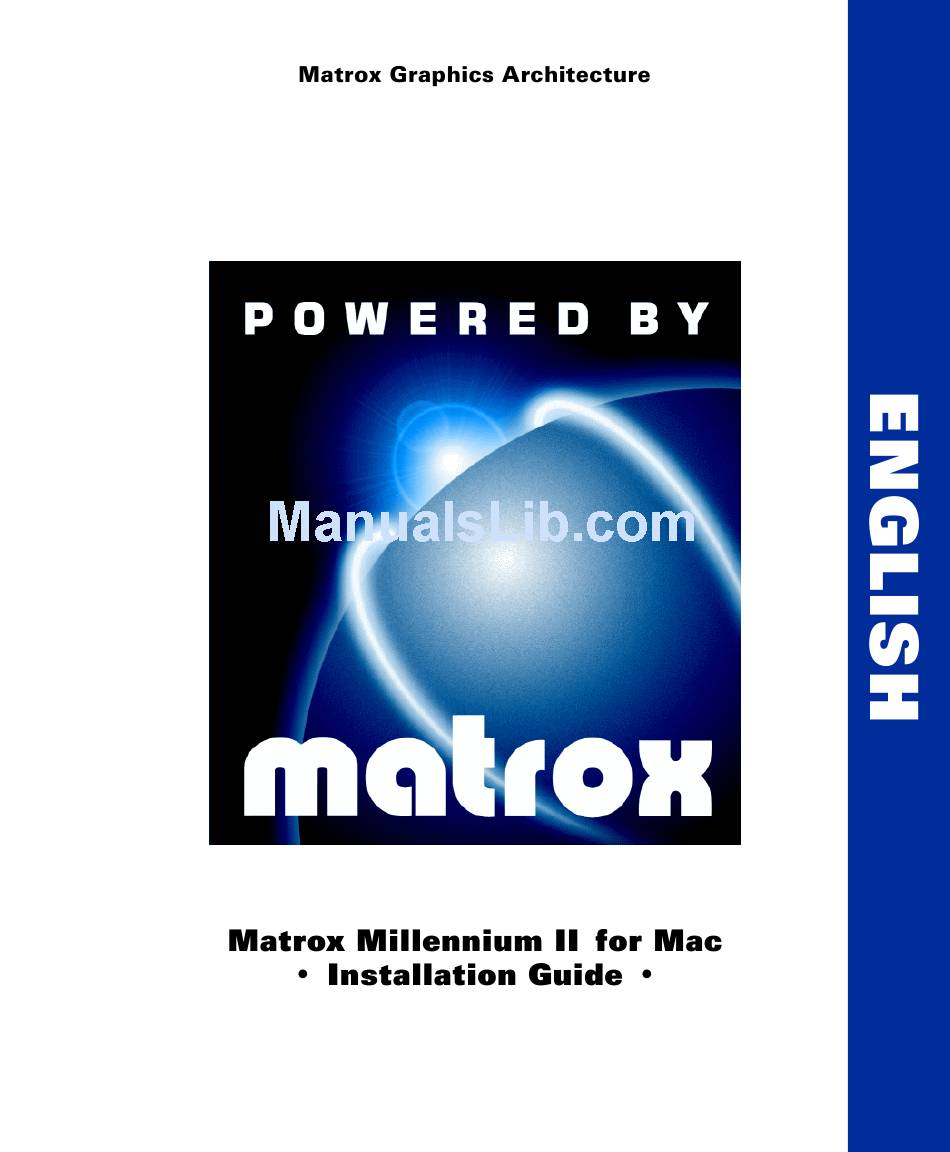

- Page 1 10546-101-0110 1997.10.10...
- Page 2 Copyright © 1997 Matrox Graphics Inc. • (English) All rights reserved. • (Français) Tous droits réservés. • (Deutsch) Alle Rechte vorbehalten. • (Italiano) Tutti i diritti riservati. • (Español) Reservados todos los derechos. ® ® Matrox Electronic Systems Ltd........Matrox , Matrox Mystique Matrox Graphics Inc.
- Page 3 However, no responsibility is assumed by Matrox Graphics Inc. for its use; nor for any infringements of patents or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of Matrox Graphics Inc.
- Page 4 Thank you for purchasing a Matrox Millennium II card for your Macintosh* computer. Millennium II is a high-performance graphics card that plugs into a PCI expansion slot inside your computer. Your Millennium II card features: Matrox 64-bit graphics chip to accelerate 2D and 3D graphics and digital video Hardware-based texture-mapping and bus mastering for more 3D acceleration Display resolution support up to 1800 ×...
- Page 5 PCI slots in your computer). Push the card in firmly and evenly until it’s fully seated in the slot. Replace the screw to secure the bracket of your Millennium II card to the computer chassis. Bracket screw Motherboard Millennium II card PCI slot Matrox Millennium II for Mac – Installation Guide...
- Page 6 Your hardware and software are now installed. See the next section for information on how to change your display settings. * To uninstall the driver, simply remove these files from your system. Matrox Millennium II for Mac – Installation Guide...
- Page 7 Control Panel Matrox PowerDesk Matrox Cards This lists all the Matrox graphics cards in your computer. Select a card in the list to change settings for it. Resolutions Click this box to select a display area from 640 × 480 to 1800 ×...
- Page 8 Use this feature to assign keyboard shortcuts for , and for opening the PanLOCK PixelTOUCH control panel. Matrox PowerDesk Information Click this box to see information related to your graphics card and how to contact Matrox customer support. Matrox Millennium II for Mac – Installation Guide...
- Page 9 89–104 60–70 1. Maximum refresh rates can be obtained while using an 8- or 16-bit color palette. Maximums may not be attainable at the highest display resolutions with a 32-bit color palette. Matrox Millennium II for Mac – Installation Guide...
- Page 10 Monitor connector pinouts Analog red output Ground Analog green output Not connected Analog blue output SDA (DDC) Not connected TTL horizontal sync 5–8 Ground TTL vertical sync +5 V (DDC) SCL (DDC) Matrox Millennium II for Mac – Installation Guide...
- Page 11 Solution – Make sure the monitor’s power cable is firmly in place. Solution – Make sure the 15-pin connector to your Matrox graphics card is firmly in place. Solution – If you are using an Apple monitor, make sure the adapter is firmly attached to your monitor cable and your Millennium II card.
- Page 12 Cause – You may be using a fixed-frequency monitor. To confirm this, see your monitor manual. Solution – You may need a special adapter. For more information, please contact Matrox Technical Support. Matrox Millennium II for Mac – Installation Guide...
