Important Notes - Rotel RB-1091 Owner's Manual

Mono power amplifier

Hide thumbs Also See for RB-1091:

Table of Contents

RB-1091 Mono Power Ampliﬁer

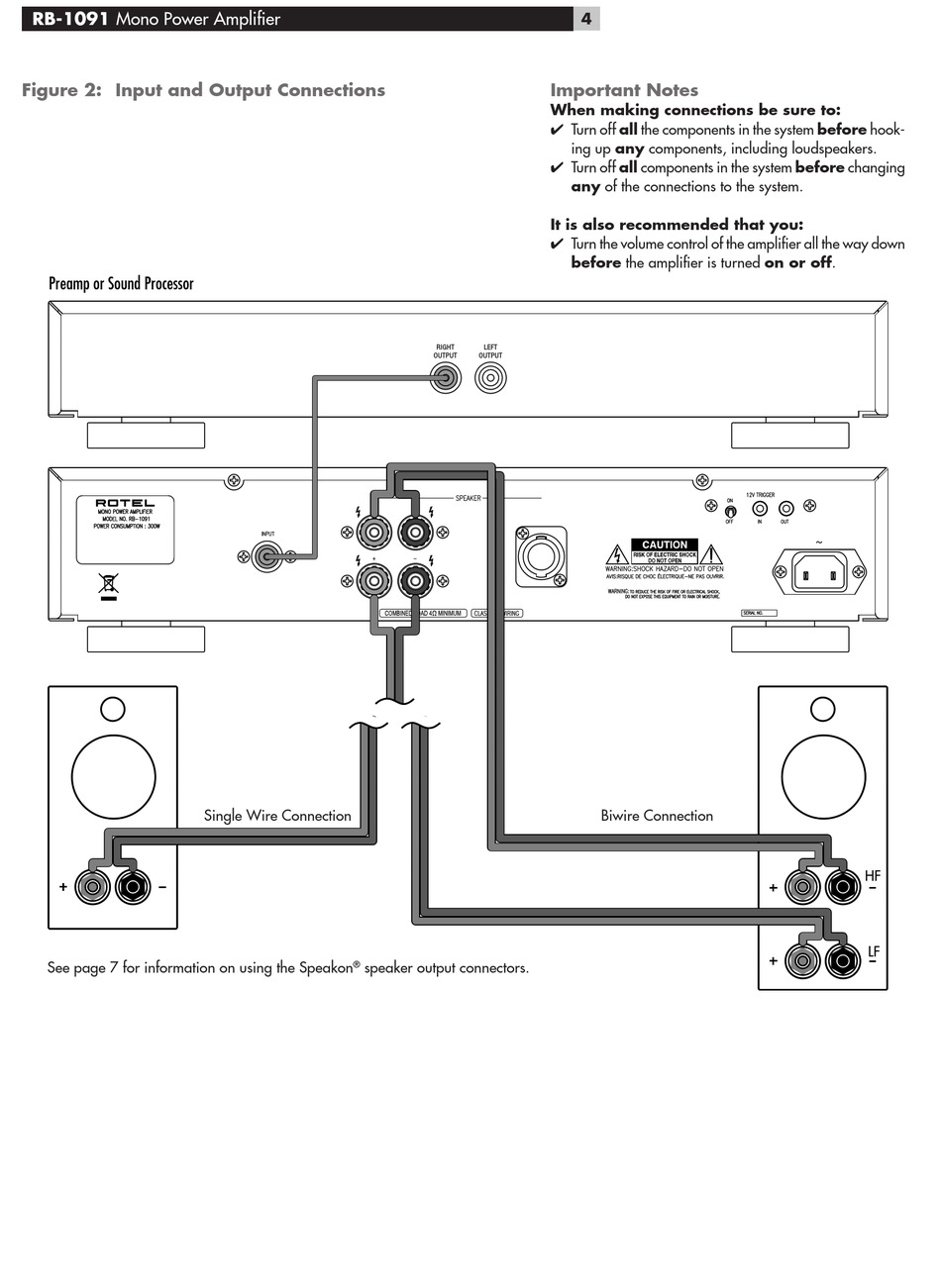

Figure 2: Input and Output Connections

Anschlussdiagramm

Prises d'entrées et de sorties

Schema di collegamento

Conexiones de Entrada y de Salida

De in- en uitgangsaansluitingen

In- och utgångar

Подключение входов и выходов

��

See page 7 for information on using the Speakon

Single Wire Connection

speaker output connectors.

Important Notes

When making connections be sure to:

Turn off all the components in the system before hook-

✔

ing up any components, including loudspeakers.

Turn off all components in the system before changing

✔

any of the connections to the system.

It is also recommended that you:

Turn the volume control of the ampliﬁer all the way down

✔

before the ampliﬁer is turned on or off.

��

Biwire Connection

��
