RB-1091
Mono Power Amplifier
Amplificateur de Puissance Monophonique
Mono-Endstufe
Finale di Potenza Mono
Etapa de Potencia Monofónica
Mono Eindversterker
Monoslutsteg
Моно усилитель мощности
Owner's Manual
Manuel d'utilisation
Bedienungsanleitung
Manuale di Istruzioni
Manual de Instrucciones
Gebruiksaanwijzing
Instruktionsbok
Инструкция По Эксплуатации

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB-1091 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rotel RB-1091

Summary of Contents for Rotel RB-1091

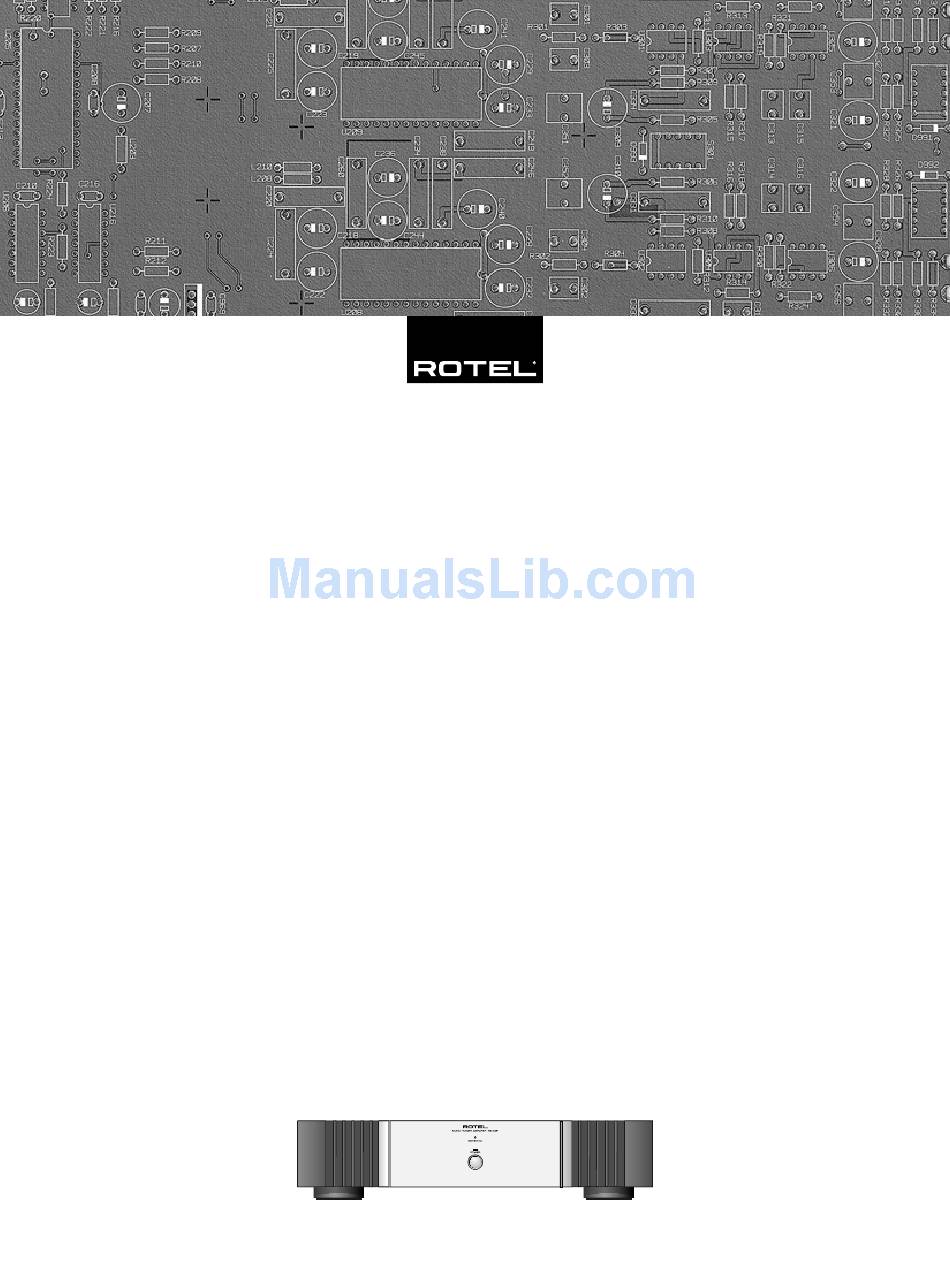

  • Page 1 Owner’s Manual Manuel d’utilisation Bedienungsanleitung Manuale di Istruzioni Manual de Instrucciones Gebruiksaanwijzing Instruktionsbok Инструкция По Эксплуатации RB-1091 Mono Power Amplifier Amplificateur de Puissance Monophonique Mono-Endstufe Finale di Potenza Mono Etapa de Potencia Monofónica Mono Eindversterker Monoslutsteg Моно усилитель мощности...

  • Page 2: Important Safety Information

    Please use Class 2 Wiring when connecting the speaker terminals of the unit to ensure proper insulation and minimize the risk of electrical shock. Rotel products are designed to comply with international Place the unit on a fixed, level surface strong enough to directives on the Restriction of Hazardous Substances (RoHS) in support its weight.

  • Page 3: Figure 1: Controls And Connections

    English Figure 1: Controls and Connections\ Commandes et branchements Bedienelemente und Anschlüsse Pannello frontale e posteriore Controles y Conexiones De bedieningsorganen en aansluitingen Kontroller och anslutningar Органы управления и разъемы для подсоединения � � � � � � � � �...

  • Page 4: Important Notes

    RB-1091 Mono Power Amplifier Figure 2: Input and Output Connections Important Notes Anschlussdiagramm When making connections be sure to: Prises d’entrées et de sorties Turn off all the components in the system before hook- ✔ Schema di collegamento ing up any components, including loudspeakers.

  • Page 5: Table Of Contents

    Rotel dealer for answers to any questions you Input Signal Connection ..... 6 toroidal power transformers manufactured in might have. In addition, all of us at Rotel wel- Rotel’s own factory. come your questions and comments. Speaker Connection ........ 7 Speaker Selection Rotel’s reputation for excellence has been...

  • Page 6: Ac Power And Control

    RB-1091 Mono Power Amplifier AC Power and Control Protection Indicators Turn On/Off Mode Selector The RB-1091 can be turned on and off auto- AC Power Input matically by using its “12V Trigger” system. Thermal and protection circuits protect the am-...

  • Page 7: Speaker Connection

    ® terminals. Having two sets of terminals makes NL2FC two-contact connector is connected The RB-1091 has two sets of dual binding post it easy to biwire a speaker. The speaker in a similar way. See the instruction sheet speaker connection terminals. In addition there...

  • Page 8: Troubleshooting

    Total Harmonic Distortion (20Hz-20kHz, 8 ohms) necessary changes. If you are unable to get Continuous Rated Power < 0.03% sound from the RB-1091, refer to the sugges- One-Half Rated Power < 0.03% tions for the following conditions: One Watt per Channel <...
