Technical
Manual
Table of Contents
Specification.....................................1
Parts List ..........................................2~5
Destination Setting...........................6
Wiring Diagram ...............................7
PCB Assembly .................................8
Schematic Diagram..........................9
Specification
Power Configurations
Watts/Channel
Total Harmonic Distortion (20Hz-20kHz, 8 ohms)
Continuous Rated Power
One-Half Rated Power
One Watt per Channel
Power Output (4 Ohms, 0.09% THD)
Output Peak Current
Intermodulation Distortion 60 Hz:7 kHz, 4:1
Damping Factor (8 ohms)
Amp Gain
Input Sensitivity/Impedance
Frequency Response
Signal to Noise Ratio (IHF A)
Power Requirements
USA
Europe
Power Consumption
Dimensions (W x H x D)
Panel Height (for rack mounting)
Weight (net)
10-10 SHINSEN-CHO , SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Quality Uncompromised
1 x 500 Watts
500 watts, with 20KHz filter, 8 ohm load,
20-20 kHz, 0.03% THD
< 0.03%
< 0.03%
< 0.03%
1000 watts
40A
< 0.03%
400
27.2dB
2.2 V / 11.1 k ohms
10 - 40 KHz (±3dB)
118 dB
120 Volts, 60 Hz
230 Volts, 50 Hz
300 Watts
34 Watts - Idling
3 Watts - Standby
432 x 92 x 407 mm
17
/
x 3
/
x 16
1
5
8
8
80 mm, 3
/
in
1
8
7.8 kg, 17.2 lb.
®

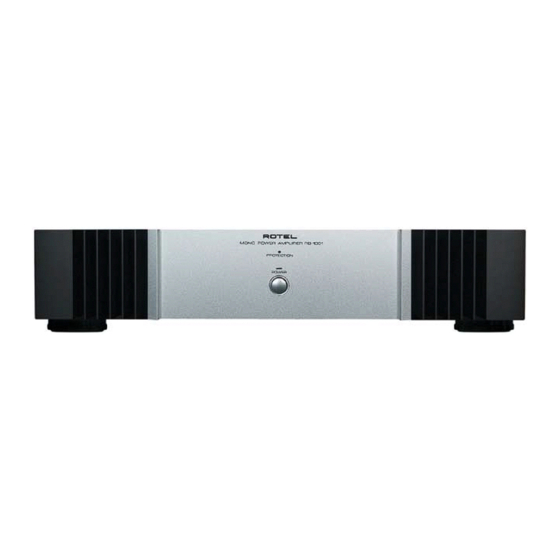

MONO POWER AMPLIFIER
RB-1091
/
in
1
8
Serial. NO.
Y-387A-0610/pdf
Advertisement
Table of Contents
Related Manuals for Rotel RB-1091
Summary of Contents for Rotel RB-1091
-
Page 1: Table Of Contents
Quality Uncompromised ® Technical MONO POWER AMPLIFIER RB-1091 Manual Table of Contents Specification........1 Parts List ..........2~5 Destination Setting......6 Wiring Diagram .......7 PCB Assembly .........8 Schematic Diagram......9 Specification Power Configurations 1 x 500 Watts Watts/Channel 500 watts, with 20KHz filter, 8 ohm load, 20-20 kHz, 0.03% THD... - Page 2 RB-1091 Appearance Please be requested: When the fault are in the 1000ASP module, replace the module and send back the modules later.
-
Page 3: Parts List 1/2
RB-1091 Parts List 1/2 SYMBOL PARTS NO. DESCRIPTION 016 X-1438A01-02 PCB ASSY 501 X-1438-B PCB ASSY (SUB TRANSFORMER) 013 4TTU-13 PCB SUPPORT T101 022 T-1075N02 SUB TRANSFORMER IC101 031 PC817X2 IC (PHOTO COUPLER) PC817X2 Q101 032 TC3708-ST TRANSISTOR 2SC3708AA-ST D102,103,104,106,107... - Page 4 RB-1091 Parts List 2/2 SYMBOL PARTS NO. DESCRIPTION 072 C-4621A03 AC CORD SET (SJT AWG16) for RAA 072 C-4622A02 AC CORD SET for AUSTRALIA 072 C-4624A03 AC CORD SET for EUROPE 072 C-4623A02 AC CORD SET for UK 081 VP3-10A00...
- Page 5 Addendum List for Black and Silver RB-1091 SYMBOL PARTS DESCRIPTION 011 FP-589-B BLACK PANEL ASSY 011 FP-589-S SILVER PANEL ASSY 011 VP3-01A00 H/S PANEL H150 013 VP3-03A00 SUB PANEL HOLDER (BLK) 013 VP3-03A01 SUB PANEL HOLDER (SLV) 012 RV4-09A00 PUSH BUTTON 14F (BLK)
-
Page 6: Destination Setting
RB-1091 Destination setting 1. find the FUSE in the 092 ICEPOWER1000ASP. 2. Set the Fuse to the destination country voltage on the PCB. 3. Replace the fuse value to the destination. 5HT10-R for 115V and 5HT6.3 for 230V. 4. Rewire the Jumper wire on the PCB 016 X-1438A01. Use J101 for 115V and J102 for 230V. -
Page 7: Wiring Diagram
RB-1091 Wiring Diagram Wiring-1 CNT ASSY PCB,etc 1000ASP X-1444-01 X-1438-01 068 C-4897A02 K203 PIN JACK (9P-2P3P 160mm) 068 C-4896A02 X-1444-01(K201) (4P 300mm) 068 C-4896A04 X-1444-01(202) (6P-3P 200mm) 068 C-4588A09 K101 X-1438-02(K103) (3P 420mm) 068 C-4666A06 AC1-2(BRN) 1000ASP(P3) (connector) (6P 170mm) -
Page 8: Pcb Assembly
RB-1091 PCB Assembly Output and Protection PCB 016 X-1444A01 - 03 016X-1444A01 K205 L201 K201 K202 RY201 016 X-1444A03 S901 Sub Transformer PCB 016 X-1438A01 -02... -
Page 9: Schematic Diagram
RB-1091 Schematic Diagram FUSE C30B...
