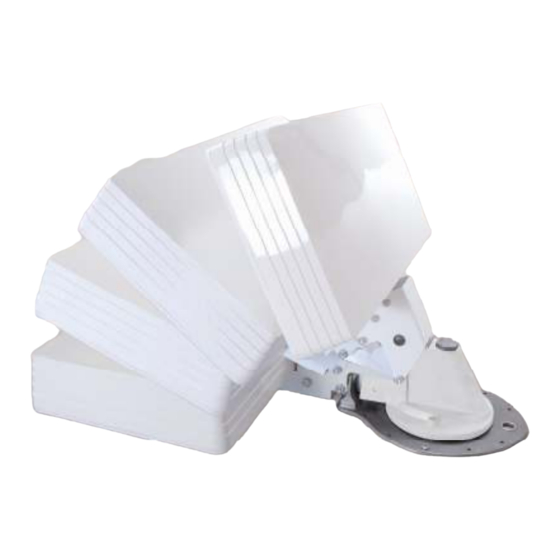

Crank-up satellite antenna

Advertisement

Flat-Sat
Crank-up Satellite Antenna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flat-Sat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Camos Flat-Sat

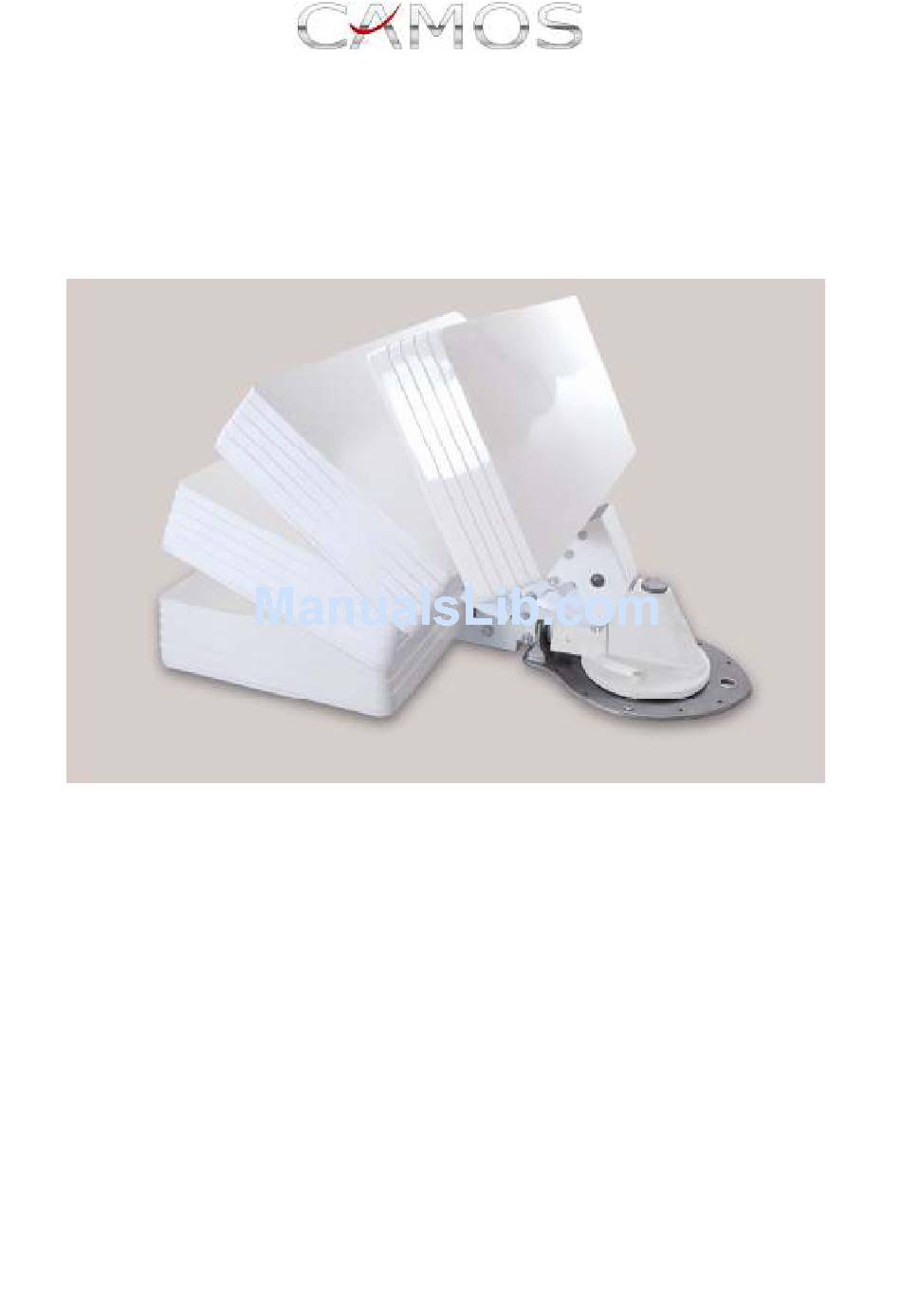

  • Page 1 Flat-Sat Crank-up Satellite Antenna...
  • Page 2 1. Contents: Quantity Description Antenna Selfsat HD 10 Lift and Rotation Unit (pre-assembled) Ceiling Support plates Ceiling plate Rotation handle Elevation handle Spring Washer Graduation disc Antenna cable 5m one side with F-series connector F-connector Protector Gel Cable entry box Screws 2.
  • Page 3 3. Installation Planning Decide where you wish to mount your satellite system. Location of the lift assembly must allow antenna to point towards the rear of the vehicle when resting in the travel position, and must clear all roof mounted equipment when being raised, lowered or rotated. The inside ceiling must be clear of obstructions to ceiling plate and handle.
  • Page 4 4. Mounting Using a 38mm diameter hole saw, cut a hole through the roof and ceiling for the centre shaft. Apply a layer of approx. 0,5 cm thick of adhesive such as Sikaflex® on the bottom of the base plate. Follow the manufacturer’s guidelines for surface preparation, application and curing.
  • Page 5 5. Connecting the Antenna Connect the coaxial cable to the antenna and tighten. Feed the cable sidewise through the lift assembly, then insert cable through gland in rear of roof entry box and push cable into vehicle. Leave 70 cm of cable (see indication) from antenna to roof entry.
  • Page 6 The graduation disc also will be used to indicate the approximate direction and position of the desired satellite. With the enclosed compass find out the direction north and turn the Indicator "N" into this direction. Turn the indicator of rotation handle into the area of desired satellite, which appears highlighted in colour on the graduation disc.
  • Page 7 Align the pointers on the ceiling plate and rotation handle before you lower the Antenna. Technical Details: Model: Camos SelfSat Top Frequency range : 10.7 - 12.75 GHz Polarisation Dual Linear ( horizontal and vertical ) Gain 33 dBi bei 12.75 GHz...
