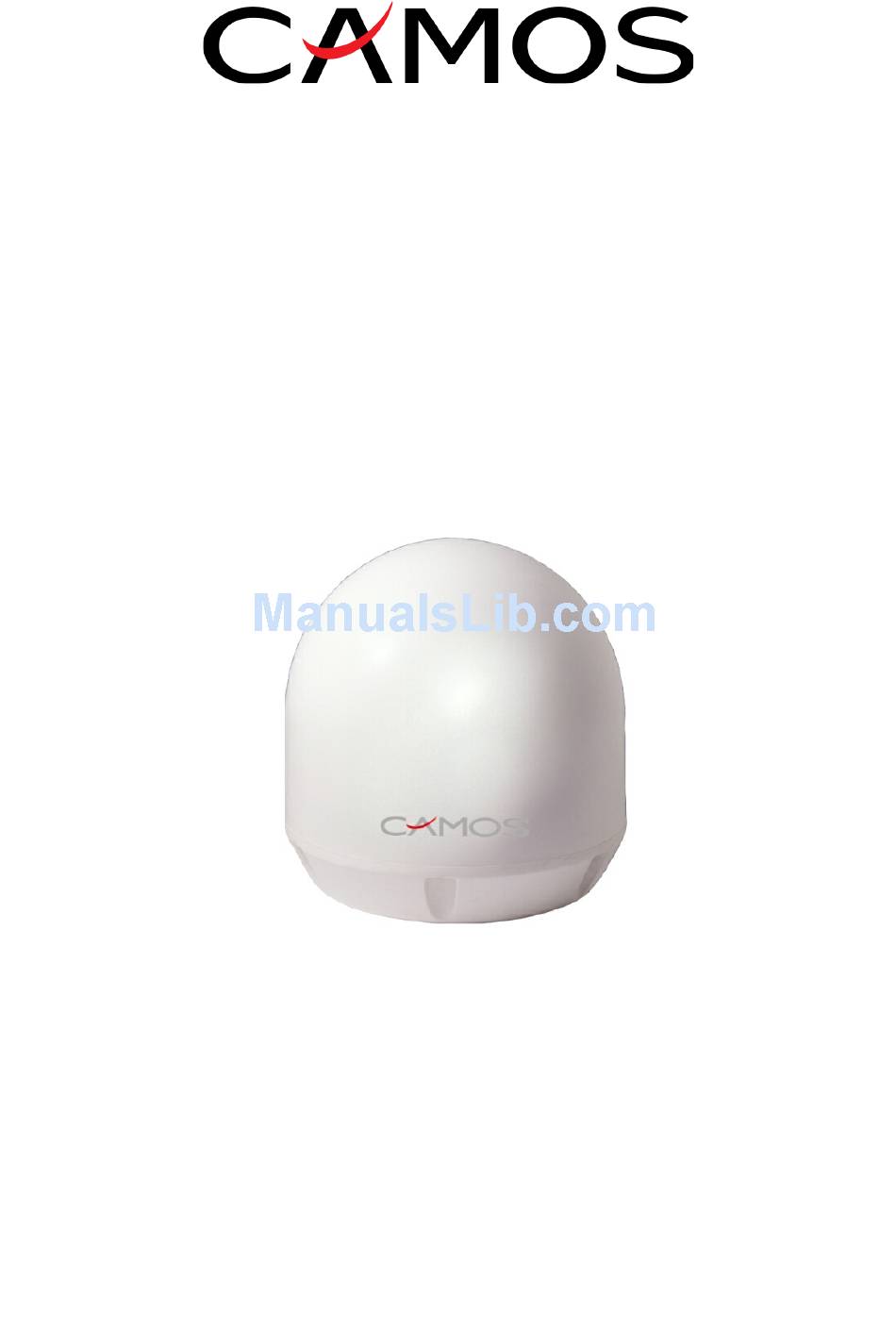

CSA-600 Multi
Fully automatic, auto-tracking marine Satellite antenna
with 3 multi-outputs
Instruction Manual
Ver. 1.5
Thank you for purchasing our product.
Please read this instruction manual carefully before installing
and operating this antenna!
Please write down the serial number of this antenna.
In case of queries please inform us of this number:
Serial No: _________________________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camos CSA-600 Multi
Summary of Contents for Camos CSA-600 Multi
- Page 1 CSA-600 Multi Fully automatic, auto-tracking marine Satellite antenna with 3 multi-outputs Instruction Manual Ver. 1.5 Thank you for purchasing our product. Please read this instruction manual carefully before installing and operating this antenna! Please write down the serial number of this antenna.
-
Page 2: Installing Your Antenna
The Camos CSA-600 enables reception on the move of the major European satellites including THOR 2/3, ASTRA 1, ASTRA 2, HOTBIRD, SIRIUS and ATLANTIK BIRD3. If you want to watch TV or access the Internet via satellite, even when your boat is moving, here’s the equipment you need. - Page 3 Before mounting we recommend to test the antenna at the selected mounting place! In some cases it may happen that the antenna does not work properly. After checking please mount the antenna as follows: 1. Put the antenna on the selected mounting place and adjust if necessary. The mounting place must be even and there should be no obstructions which may interfere with reception of the satellite signal.
- Page 4 Control box 3x Satellite- receiver 3x Monitor or TV with AV input 4. Instead of the 3 receiver you can also connect a satellite multi switch to the antenna. This enables you to use more than 3 receiver with the antenna. Please pay attention that the multi switch is able to be connected directly with "Quad LNB", not only "Quattro LNB".
- Page 5 5. Operating the antenna 1. Selecting a satellite / Search mode Push the "SATELLITE SELECT" button several times until the desired satellite indicator lights up. ASTRA 2-N Select this position when you are in the northern part of ASTRA2 footprint. ASTRA 2-S Select this position when you are in the southern part of ASTRA2 footprint.
-
Page 6: Technical Data
Power supply: 10 - 30V / 3A max. Operating temperature: -22° C to +55° C Radome diameter: 67,6cm Radome Height: 68,4cm Tracking rate: max. 50° per second Weight (without control box): appr.15kg IMC GmbH (Camos Europe) Carl-Zeiss-Str. 7 D-22946 Trittau...
