CSA-1300P/1400P
Automatic, auto-adjusting Satellite antenna
Instruction Manual
Thank you for purchasing our product.
Please read this instruction manual carefully before mounting
and operating this antenna!
Pls write down the serial number of this antenna.
In case of questions pls inform us of this number:
Ser.-Nr.: _________________________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camos CSA-1300P
Summary of Contents for Camos CSA-1300P

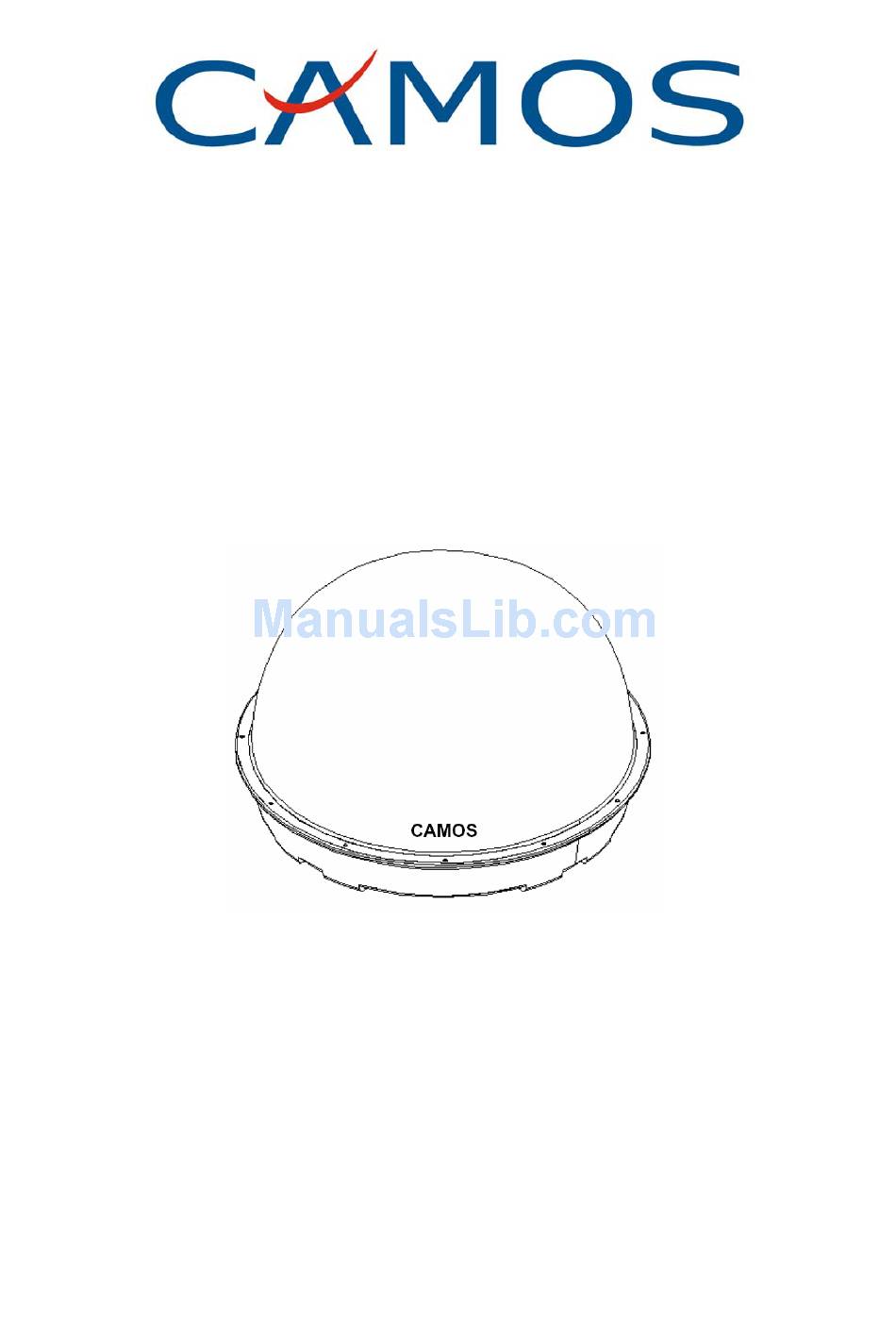

- Page 1 CSA-1300P/1400P Automatic, auto-adjusting Satellite antenna Instruction Manual Thank you for purchasing our product. Please read this instruction manual carefully before mounting and operating this antenna! Pls write down the serial number of this antenna. In case of questions pls inform us of this number:...
-
Page 2: Installing Your Antenna

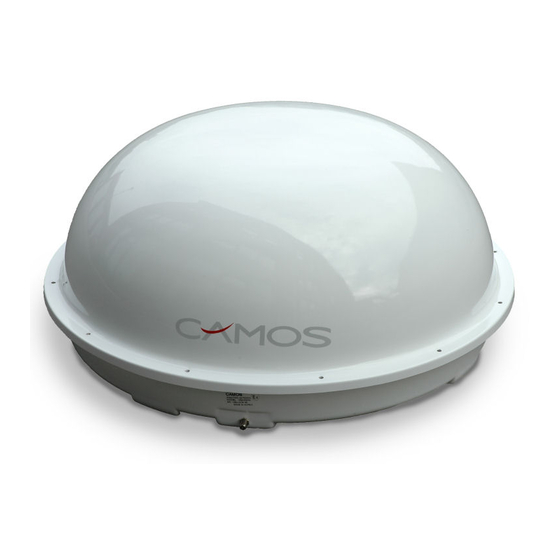

The Camos CSA-1300P/1400P enables reception of the major European satellites like ASTRA1, ASTRA2, HOTBIRD, SIRIUS, ATLANTIK BIRD 3 and HISPASAT. If you want to watch TV or access the Internet via satellite, here’s the equipment you need. The sat-dome is compact in size, light in weight, reliable in operation and incredibly easy to operate and install: there are just two cables to run. - Page 3 screw hole antenna foot antenna dome 4. Replace the antenna. Clean the mounting place and the antenna feet with the supplied special cleaning fluid "Reiniger1" and the supplied fleece (pls wear the supplied Latex gloves!). Grind the marked fixing areas and antenna feet with sandpaper (not too much, the surface must be rough a little bit only), clean the surface and antenna feet with cleaning fluid 1 again and wait another 10 minutes.
- Page 4 12 V DC OUT RS-232 Control box (rearview) Power socket 4. Install your satellite receiver (CAMOS SVR-200 e.g.) according to it's user manual and connect it to the control box via the short white co-ax cable. Control box CSA-1300P/ 1400P...
- Page 5 4. Starting up and operating Satellite select LNB indicator Lock indicator pushbutton On/off switch Power Satellite indicators indicator 1. Switch on your satellite receiver and monitor/TV. Now you can switch on the control box. The green "LNB" indicator lights up after switching on the receiver. 2.
-
Page 6: Technical Data
-22°C to +55°C Antenna cable HQ co-ax, length 10m Diameter: appr. 69,5cm Height: appr. 30cm (CSA-130P)/ appr. 40cm (CSA-140P) Weight (without control box): appr. 9kg IMC GmbH (Camos Europe) Tel +49 4154 8083 - 0 Carl-Zeiss-Str. 7 www.camos-multimedia.com 22946 Trittau...
Need help?
Do you have a question about the CSA-1300P and is the answer not in the manual?
Questions and answers
Control Box Keeps Cycling through Satellite indicators
The Camos CSA-1300P control box keeps cycling through satellite indicators because the antenna has not yet locked onto the desired satellite. If the antenna does not immediately find the desired satellite, the "LOCK" indicator turns off, the indicator of the wrong satellite briefly lights up, and the antenna resumes searching. This process continues until the desired satellite is located and fine adjustment is completed.
This answer is automatically generated
