CSA-345

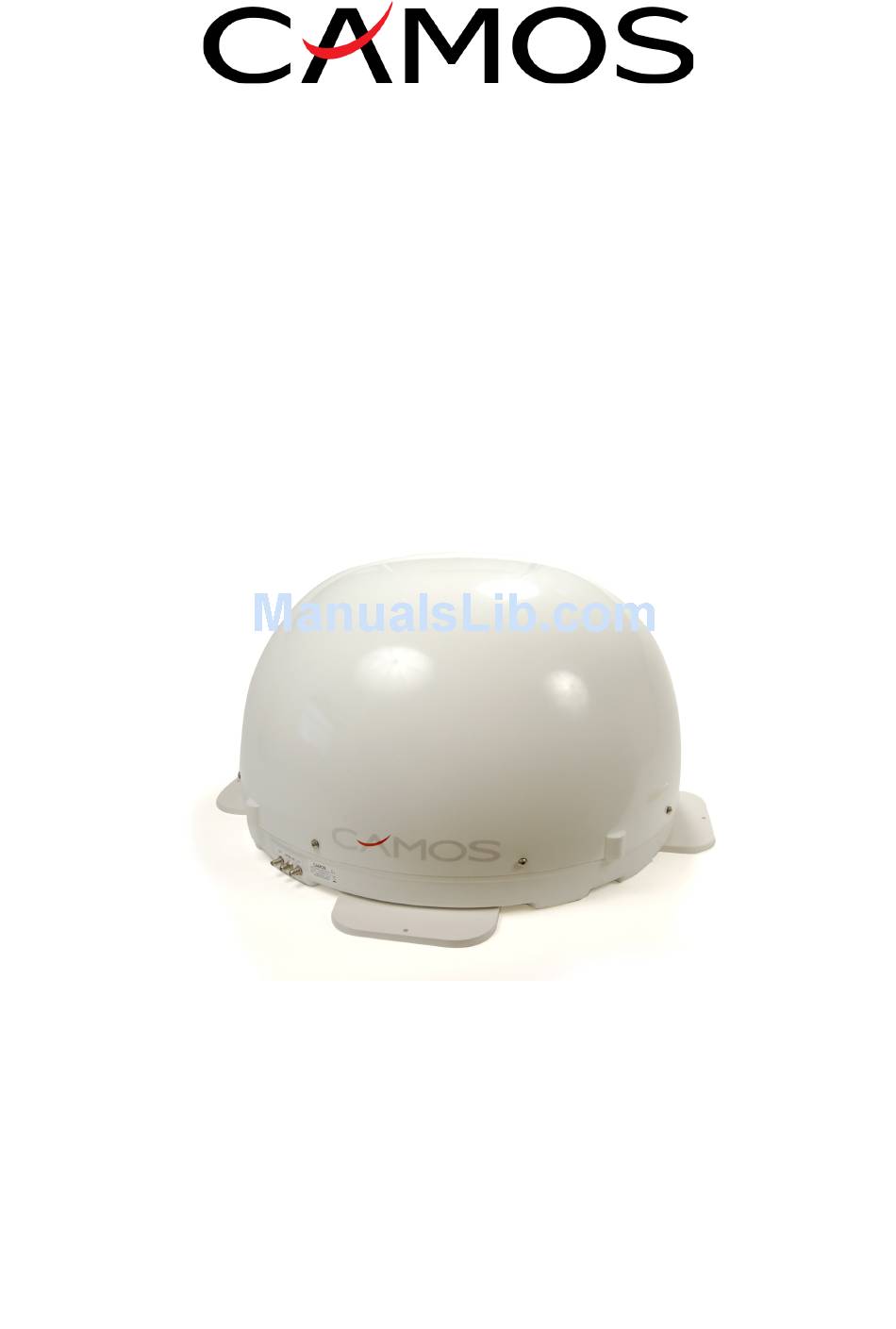

Fully automatic, auto-tracking Satellite antenna
with 3 multi-outputs
Instruction Manual
Ver. 1.5
Thank you for purchasing our product.
Please read this instruction manual carefully before installing
and operating this antenna!
Please write down the serial number of this antenna.
In case of queries please inform us of this number:
Serial No: _________________________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camos CSA-345
Summary of Contents for Camos CSA-345
- Page 1 CSA-345 Fully automatic, auto-tracking Satellite antenna with 3 multi-outputs Instruction Manual Ver. 1.5 Thank you for purchasing our product. Please read this instruction manual carefully before installing and operating this antenna! Please write down the serial number of this antenna.
-
Page 2: Installing Your Antenna
The Camos CSA-345 enables reception on the move of the major European satellites including all Astra-Satellites, Eutelsat/Hotbird, Sirius, Atlantik Bird3 and Hispasat. If you want to watch TV or access the Internet via satellite, even when your vehicle is moving, here’s the equipment you need. The sat-dome is compact in size, light in weight, reliable in operation and incredibly easy to operate and install: there’s just one co-ax cable... - Page 3 Before mounting we recommend to test the antenna at the selected mounting place! In some cases it may happen that the antenna does not work properly. After checking pls mount the antenna as follows: Preparation: 1. Assure that the roof of your vehicle is able to carry the antenna. If you are not sure pls fix a metal plate (Alu, appr.
- Page 4 3. Pls put the antenna (max. 5 minutes after applying the glue!) on the selected mounting place on the car roof. Press the antenna feet smoothly ontot the roof and fix the antenna with tape e.g. to avoid moving. After pressing the antenna feet onto the roof the minimum thickness of the glue layer must be appr.
- Page 5 Then connect one receiver (via the short co-ax cable) with the socket marked "RECEIVER" on the back of the control box, the other receivers pls connect directly with the remaining sockets of the antenna. CAMOS CSA-450 Control box CSA-345 3x Satellite-...
-
Page 6: Operating The Antenna
4. Starting up 1. Switch on your satellite receiver and monitor/TV. Then switch on the control box. 2. The antenna goes to search mode and, after a while, finds the desired satellite. 5. Operating the antenna 1. Selecting a satellite / Search mode Push the "SATELLITE SELECT"... -
Page 7: In Case Of Problems
2. Tracking mode When the antenna has found the selected satellite, the satellite indicator goes out for 1 second and lights up again. Now the satellite is logged in and the tracking indicator (TRACKING) lights up. Sometimes it happens that the antenna at first stops and locks onto a different satellite (depending on your position, signal strength and weather conditions). -
Page 8: Technical Data
Operating temperature: -22° C to +55° C Radome Diameter: 69,5cm Radome Heigh: approx.40cm Tracking rate: max. 50° per second Weight (without control box): appr.12,7kg IMC GmbH (Camos Europe) Carl-Zeiss-Str. 7 D-22946 Trittau GERMANY Tel 04154 / 8083 – 0 info@imc-multimedia.com www.camos-multimedia.com... - Page 9 Footprint ASTRA 1 digital) Frootprint Hotbird (digital) (no responsibility is taken for the correctness of this information)
