CSA-230M / CSA-240M

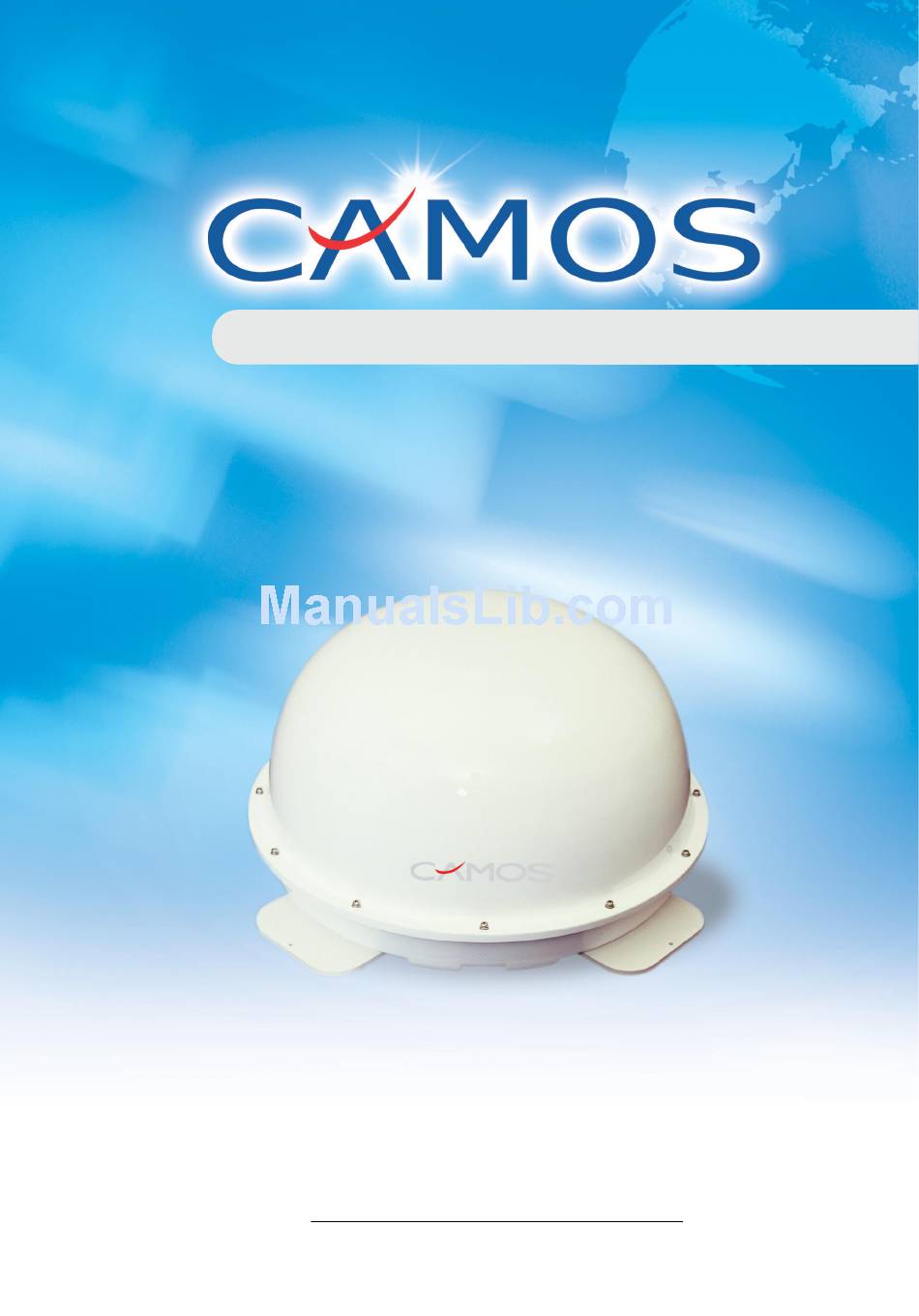

Full automatic, auto tracking Satellite antenna
Instruction Manual
Ver. 1.2
Thank you for purchasing our product.
Please read this instruction manual carefully before mounting
and operating this antenna!
Pls write down the serial number of this antenna.
In case of questions pls inform us of this number:
Ser. Nr.:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camos CSA-230M
Summary of Contents for Camos CSA-230M
- Page 1 CSA-230M / CSA-240M Full automatic, auto tracking Satellite antenna Instruction Manual Ver. 1.2 Thank you for purchasing our product. Please read this instruction manual carefully before mounting and operating this antenna! Pls write down the serial number of this antenna.
-
Page 2: Installing Your Antenna
The Camos CSA-230M / CSA-240M enables reception on the move of the major European satellites like ASTRA 1, ASTRA 2, HOTBIRD and SIRIUS. If you want to watch TV or access the Internet via satellite, even when your vehicle is moving, here's the equipment you need. - Page 3 Important! Pls absolutely keep to each individual point of mounting instruction! General: Pls take care of a suitable workplace, a garage or hall is better than a place outside. The ambient temperature during sticking the antenna should lie within a temperature between +5˚C to max.+25˚C. If you work outside avoid direct sunlight! Always keep to the instructions dealing with chemical products.
- Page 4 Sticking the antenna to your vehicle's roof: 1. Cut the tip of the supplied cartouche special glue "Spezialkleber 3" (pls wear the supplied Latex gloves!). 2. Apply evenly the glue onto the antenna feet (thickness of glue layer appr. 3 to 4mm) 3.
- Page 5 4. Install your satellite receiver (CAMOS SVR 200 e.g.) according to it's user manual and connect it to the control box via the short white co ax cable. Control box CSA-230M / CSA-240M Monitor SVR-200 (CAMOS CM-1040D e.g.) Satellite receiver 4.
- Page 6 5. Operating the antenna 1. Selecting a satellite / Search mode Push the "SATELLITE SELECT" button as often until the desired satellite indicator lights up. ASTRA 2 N Select this position when you are in the northern part of ASTRA2 footprint. ASTRA 2 S Select this position when you are in the southern part of ASTRA2 footprint.
-
Page 7: Trouble Shooting
12V / appr. 27W max. Operating temperature: -22˚C to +55˚C Diameter: 69,5cm Height: 29.5cm (CSA-230M) 39.5cm (CSA-240M) Weight (without control box): 12,4kg (CSA-230M) / 12,7kg (CSA-240M) IMC GmbH (Camos Europe) Carl-Zeiss Str. 3 22946 Trittau Tel 04154 / 8083-0 www.camos-multimedia.com...
