CSA-2300M / CSA-2400M
Full automatic, auto-tracking Satellite antenna
Instruction Manual
Ver. 1.5
Thank you for purchasing our product.
Please read this instruction manual carefully before mounting
and operating this antenna!
Pls write down the serial number of this antenna.
In case of questions pls inform us of this number:
Ser.-Nr.: _________________________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camos CSA-2300M
Summary of Contents for Camos CSA-2300M
- Page 1 CSA-2300M / CSA-2400M Full automatic, auto-tracking Satellite antenna Instruction Manual Ver. 1.5 Thank you for purchasing our product. Please read this instruction manual carefully before mounting and operating this antenna! Pls write down the serial number of this antenna. In case of questions pls inform us of this number:...
-
Page 2: Standard Accessory

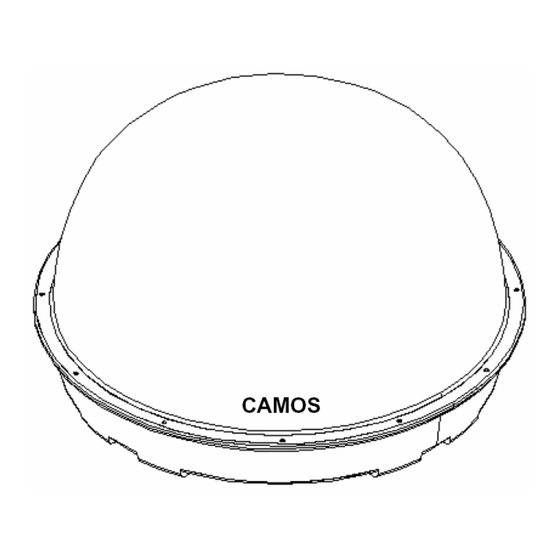

The Camos CSA-2300M / CSA-2400M enables reception on the move of the major European satellites like ASTRA 2, ASTRA 1, HOTBIRD , SIRIUS, AB3, Thor and Hispasat. If you want to watch TV or access the Internet via satellite, even when your vehicle is moving, here’s the equipment you need. - Page 3 screw hole antenna foot antenna dome 4. Replace the antenna. Clean the mounting place and the antenna feet with the supplied special cleaning fluid "Reiniger1" and the supplied fleece (pls wear the supplied Latex gloves!). Grind the marked fixing areas and antenna feet with sandpaper (not too much, the surface must be rough a little bit only), clean the surface and antenna feet with cleaning fluid 1 again and wait another 10 minutes.
- Page 4 Antenna socket (F) Control box (rearview) Power socket 4. Install your satellite receiver according to its user manual and connect it to the control box via the short white co-ax cable. Control box CSA-2300M / CSA-2400M Satellite receiver Monitor (CM-1510D e.g.)
-
Page 5: Operating The Antenna
4. Starting up 1. Switch on your satellite receiver and monitor/TV. Then switch on the control box. 2. The antenna goes to search mode and, after a while, finds the desired satellite. 5. Operating the antenna 1. Selecting a satellite / Search mode Push the "SATELLITE SELECT"... -
Page 6: In Case Of Problems
2. Tracking mode When the antenna has found the selected satellite, the satellite indicator goes out for 1 second and lights up again. Now the satellite is logged in and the tracking indicator (TRACKING) lights up. Sometimes it happens that the antenna at first stops and locks onto a different satellite (depending on your position, signal strength and weather conditions). -
Page 7: Technical Data
-22° C to +55° C Diameter: appr. 69,5cm Height: appr. 30cm (CSA-2300M) appr. 40cm (CSA-2400M) Weight (without control box): 10,1kg (CSA-2300M) / 10,4kg (CSA-2400M) IMC GmbH (Camos Europe) Carl-Zeiss-Str. 7 D-22946 Trittau GERMANY Tel 04154 / 8083 - 0 www.camos-multimedia.com...
