Camos CSA-10PA User Manual

Csa-10pa series
Hide thumbs
Table of Contents

Advertisement

Quick Links

CSA-10PA Series
User Manual
(CSA-10PA / CSA-10PA PLUS / CSA-10PA PRO)
http://www.camos-multimedia.com
IMC GmbH Nikolaus-Otto-Str. 16 D-22946 Trittau, Germany
Tel. +49 (0) 4154 / 7093202 - 0 Fax. +49 (0) 4154 / 7093202 - 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSA-10PA and is the answer not in the manual?

Questions and answers

Related Manuals for Camos CSA-10PA

Summary of Contents for Camos CSA-10PA

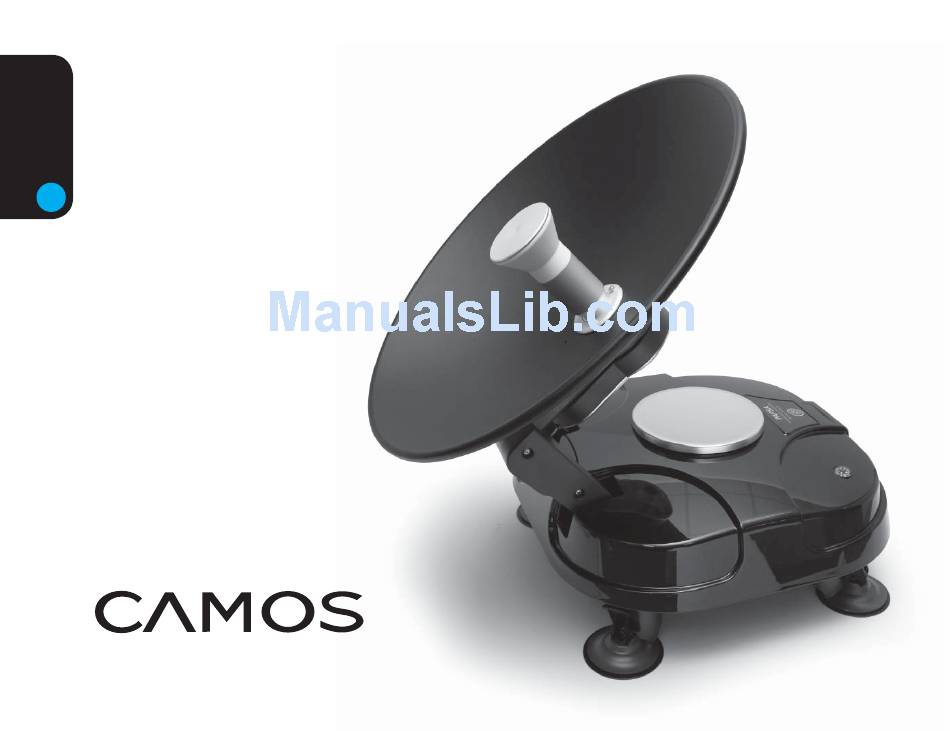

  • Page 1 CSA-10PA Series User Manual (CSA-10PA / CSA-10PA PLUS / CSA-10PA PRO) http://www.camos-multimedia.com IMC GmbH Nikolaus-Otto-Str. 16 D-22946 Trittau, Germany Tel. +49 (0) 4154 / 7093202 - 0 Fax. +49 (0) 4154 / 7093202 - 20...

  • Page 2: Table Of Contents

    011_Program Update 011_Connection diagram to update the Product 012_Update Process 013_Trouble Shooing 014_Loss of Signal / Rain Fade 015_References for the angles (Skew, Elevation & Azimuth) 016_Angle Data for the Main City of Each EU Country CSA-10PA Series User Manual Contents...

  • Page 3: For Safety & Property Of Users

    * All the instructions should be followed in order to avoid any technical problems. * Any electric or magnetic fi eld close to CSA-10PA may cause a bad reception or even cut off the signal completely. * Do not drill the plastic cover of the antenna, which seals the antenna from moisture.
  • Page 4 Packing Materials Check your package fi rst & All appearances of materials could be diff erent with the pictures. CSA-10PA & CS10PA PLUS Package CSA-10PA Pro Package Outdoor Antenna Power Inserter Outdoor Antenna Indoor Unit(IDU) Accessories Horn Feeder Cable Power Supply...

  • Page 5: Name Of Main Part - Odu

    LNB Cover ‘Up’ Button Upper limit Switch for selection ‘Down’ Button for selection ‘Set’ Button Compass to confi rm CSA-10PA PLUS Suction Leg No Function Panel CSA-10PA Pro * The color of picture should be diff erent with the product...
  • Page 6 Set Button to confi rm Down Button for selection SETTOP Connection Port Antenna Connection Port DC Power Jack Program Upgrade Port Power Inserter is for the CSA-10PA and CSA-10PA PLUS package. Antenna Port SETTOP Port Operation Display LED DC Power Jack Power Switch...

  • Page 7: Where To Install

    Where to Install? In order to receive a signal from the Satellite, CSA-10PA is to be installed in an open loop space (outside the house or the apartment), in the direction of the satellite towards the equator, for which, you can refer a compass to orient CSA- 10PA exactly toward the satellite.
  • Page 8 CSA-10PA Installation Connection Diagram CSA-10PA & CSA-10PA PLUS Package Indoor Outdoor ANT. SETTOP Connecter into... * If the signal strength is good, ODU can be indoor. DC in Power Inserter STB-1 Settop Power Supply (For Automotive) CSA-10PA Pro Package Use Feeder Cable...

  • Page 9: How To Set

    (Don’t remove the feeder cable between Set-Top and Dish) Parking Position When you have fi nished using the CSA-10PA or would like to set it to the parking position for transportation, plug in the power Example Picture supply and switch the IDU on using the power switch. This will automatically set the unit into the parking position.

  • Page 10: Operation Message On The Lcd Screen

    CSA-10PA Operation Message on the LCD screen LCD window shows current status of auto searching system. (For the package of CSA-10PA PLUS / CSA-10PA PRO) Elevation Angle / Location name Use up and down switch to set locations. H POL.
  • Page 11 CSA-10PA Program Update Connection diagram to update the Product User SAT Function Update to the Indoor Unit (IDU) You can set a specifi c satellite that you wish to watch via ‘Hyper Terminal’ or a such kind of terminal tool on your PC.
  • Page 12 6. When ‘DOWNLOAD’ is fi nished, let ‘DATA CABLE’ out and run ‘CSA-10PA’ When CSA-10PA’s power is ON already, then turn CSA-10PA OFF and ON again, DOWNLOAD will be processed. In ‘Com Port Select’ the possible Port Numbers (which can be used in your computer) are only shown.

  • Page 13: Trouble Shooting

    CSA-10PA Trouble Shooting There are a number of common issues that can aff ect the signal reception quality or the operation of the CSA-10PA. The following sections address these issues and potential solutions. Blown Fuse, Low Power, or Wiring If the antenna unit is installed but entirely non-responsive, there are three key factors to check as part of the troubleshooting process: 1.

  • Page 14: Loss Of Signal / Rain Fade

    CSA-10PA Loss of Signal / Rain Fade A tip for the horn assembling * The satellite signal may be lost temporarily due to unusually heavy rainfall. An optimally aligned antenna, along with the shortest possible cable run, minimizes the chances of “rain fade”.

  • Page 15: References For The Angles (Skew, Elevation & Azimuth)

    CSA-10PA References for the angles (Skew, Elevation & Azimuth) *CSA-10PA Series will detact the angles automatically. Refer this page just as your reference to get your satellite. Skew Angle Graduation Cross Polarization (Skew Angle) : Tilt your antenna to the specifi ed degree by looking to the degree graduation located on the back of the antenna bracket.

  • Page 16: Angle Data For The Main City Of Each Eu Country

    Angle Data for the Main City of Each EU Country Country City SAT. TURKSAT HELLAS EUTELSAT ASTRA ASTRA3 ASTRA1 EUTELSAT HOTBIRD EUTELSAT EUTELSAT SIRIUS4 THOR ATLANTIC HISPASAT 2A/3A SAT 2 W4/W7 2A/B/D W2M/SESAT1 6/8/9 3/5/6 BIRD 3 1C/1D EUROBIRD1 EUROBIRD16 42.0E 39.0E 36.0E...
