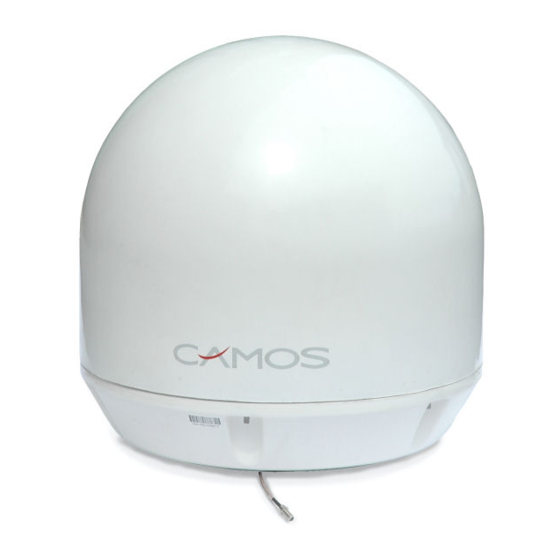

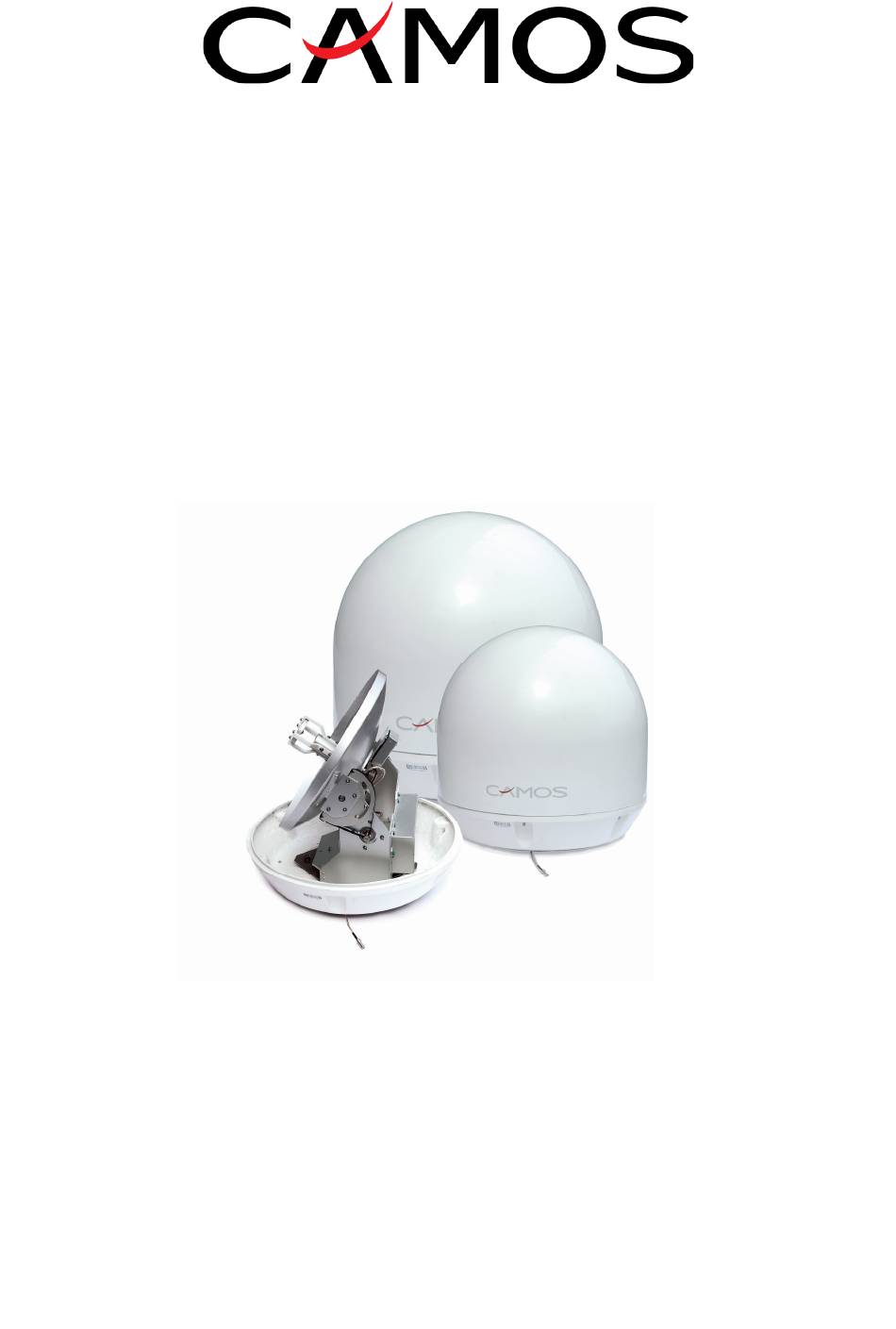

CSA-450 Multi
Fully automatic, auto-tracking marine Satellite antenna
with 3 multi-outputs
Instruction Manual
Ver. 1.3
Thank you for purchasing our product.
Please read this instruction manual carefully before installing
and operating this antenna!
Please write down the serial number of this antenna.
In case of queries please inform us of this number:
Serial No: _________________________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Camos CSA-450 Multi
Summary of Contents for Camos CSA-450 Multi
- Page 1 CSA-450 Multi Fully automatic, auto-tracking marine Satellite antenna with 3 multi-outputs Instruction Manual Ver. 1.3 Thank you for purchasing our product. Please read this instruction manual carefully before installing and operating this antenna! Please write down the serial number of this antenna.
- Page 2 The Camos CSA-450 enables reception on the move of the major European satellites including THOR 2/3, ASTRA 1, ASTRA 2, HOTBIRD, SIRIUS and ATLANTIK BIRD3. If you want to watch TV or access the Internet via satellite, even when your boat is moving, here’s the equipment you need.
- Page 3 Then connect one receiver (via the short coax cable) with the socket marked "RECEIVER" on the back of the control box, the other receivers please connect with the remaining sockets of the antenna directly. Control box CAMOS CSA-450 3x Satellite- receiver 3x Monitor or TV with AV input 4.
- Page 4 4. Starting up 1. Switch on your satellite receiver and monitor/TV. Then switch on the control box. 2. The antenna goes to search mode and, after a while, finds the desired satellite. 5. Operating the antenna 1. Selecting a satellite / Search mode Push the "SATELLITE SELECT"...
- Page 5 Sometimes it happens that the antenna at first stops and locks onto a different satellite (depending on your position, signal strength and weather conditions). In this case the indicator of the different satellite lights up for a second and goes out again. The antenna has now recognized that it has found the wrong satellite and moves to the correct position.
- Page 6 10 - 30V / 3A max. Operating temperature: -22° C to +55° C Radome diameter: 55cm Radome Height: 58cm Tracking rate: max. 50° per second Weight (without control box): appr.15kg IMC GmbH (Camos Europe) Carl-Zeiss-Str. 7 22946 Trittau Tel 04154 / 8083 - 0 www.camos-multimedia.com...
