LED Status Indicator (continued)

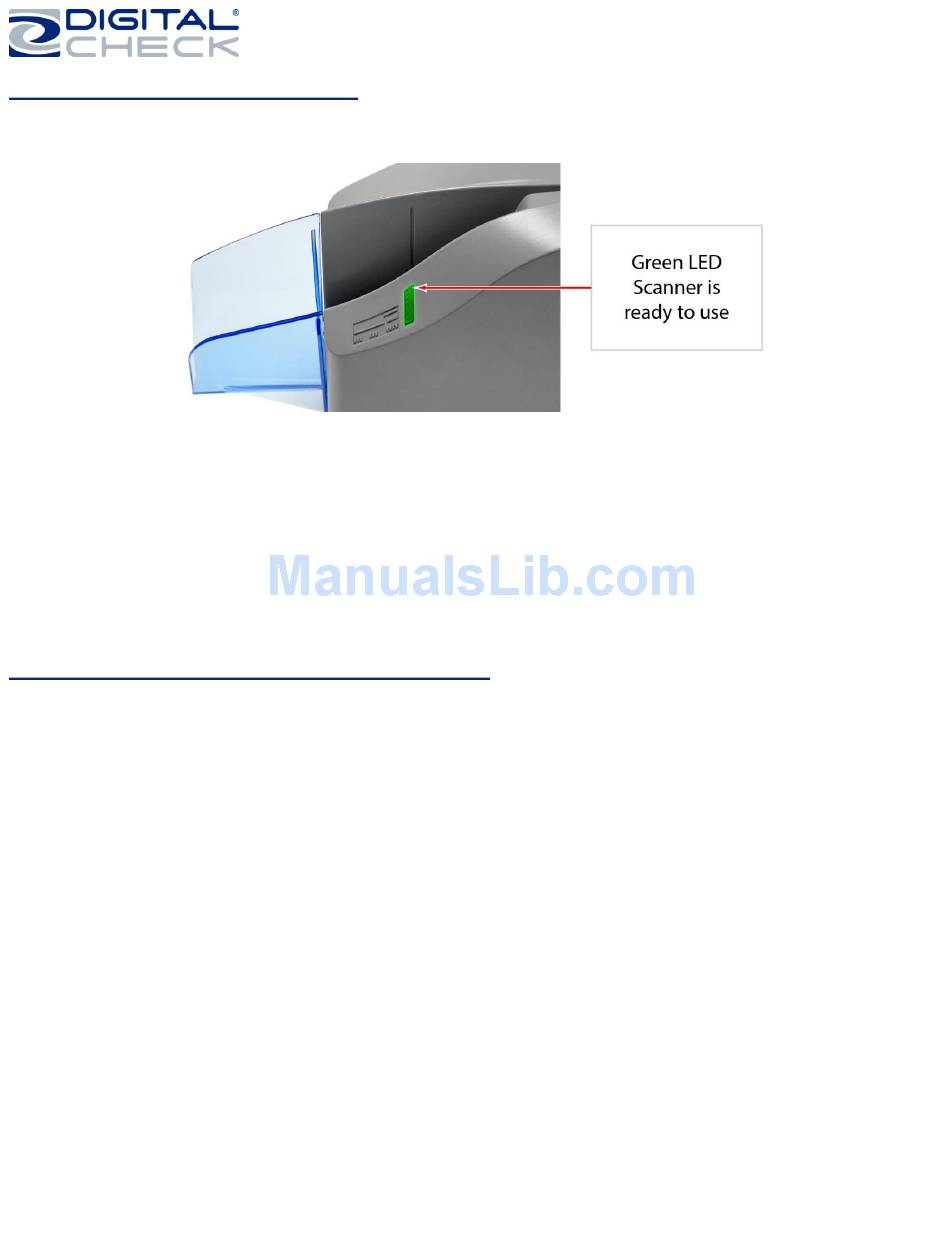

Green LED: The scanning application has successfully acquired the scanner and it is ready to be used.
Additional LED Information: After the CheXpress CX30 is synchronized with the application; the LED is used
to detect the presence of documents in the entry pocket and will turn 'Orange' when a document has been
loaded.
After a document is scanned using the 'Scan & Return' mode, the check will stop in the entry pocket and show
a flashing 'Orange' light. This indicates the document has been scanned and it can be removed.
A flashing 'Red' LED indicates an error. Select an eject option within the application, if available, or look for a
document in the path and press and release the 'Reset Button' on the side of the scanner.

Exit Door Function and Optional Scan Modes

The various scan modes depend upon the scan mode selected by the application and the open or closed
position of the exit door before the scanning application is started.
Scan & Return: This is the default and most commonly used mode. The 'Exit Door' is in the closed position.
The document will feed into the scanner and then return to the 'Entry Tray' area after it has been scanned.
Pass Through: To enable this mode, you will need to manually open the exit door prior to launching your
scanning application or demo software (e.g. ScanLite2). With the exit door in the open position, the documents
will feed straight through the scanner and stack in the exit door. Up to five items can stack in the exit door. To
return back to 'Scan & Return' mode, you will need to close the exit door and restart the scanning application.
