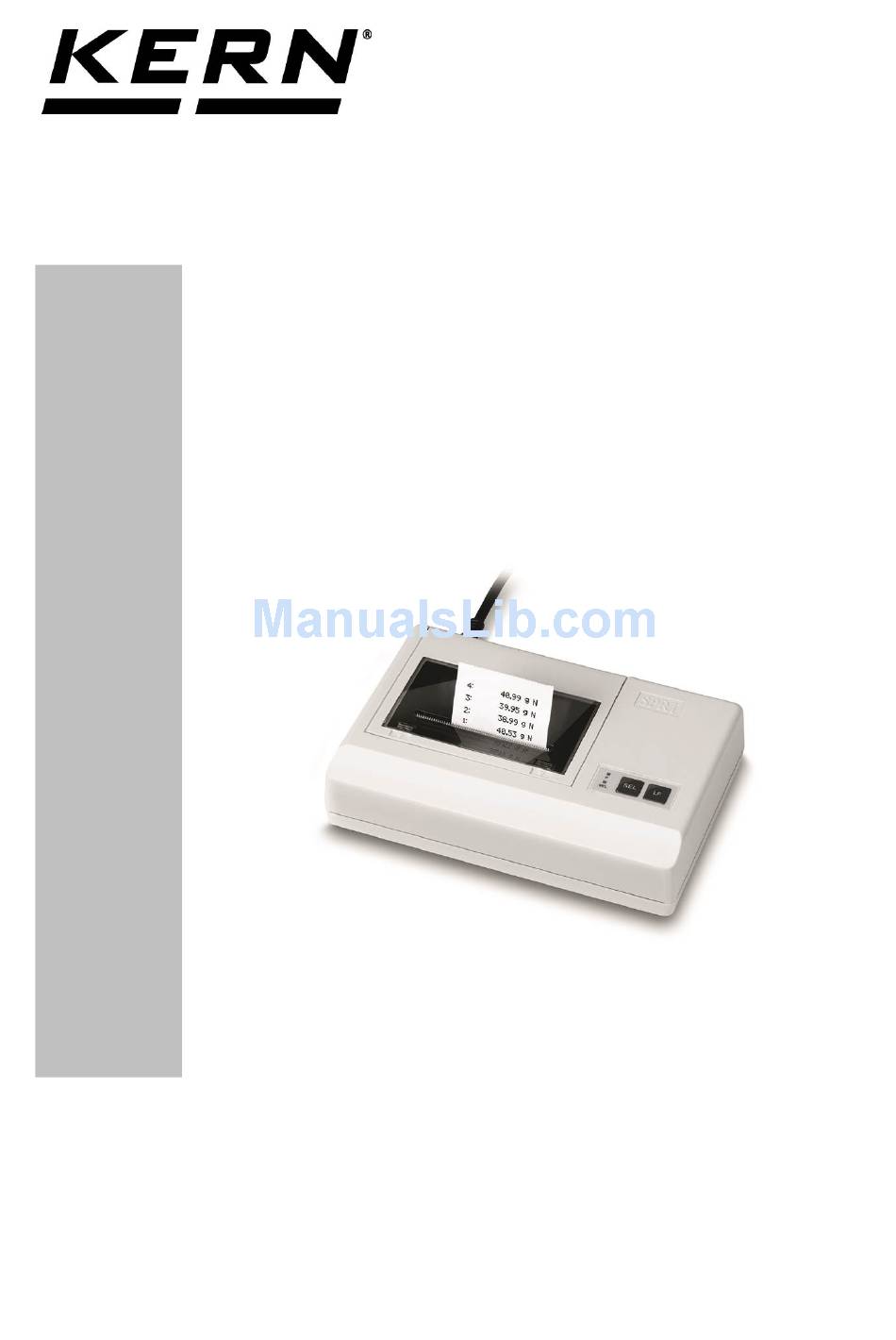

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating Instructions Dot Matrix Printer KERN YKN-01 Version 1.1 04/2014 YKN-01-e-1411...
-
Page 2: Table Of Contents
KERN YKN-01 Version 1.1 04/2014 Operating manual Dot matrix printer Contents Technical data ....................3 Unpacking ......................4 Set Up and commissioning ................4 Printer parts ....................... 5 Description of buttons and LED displays ............6 Self-test............................6 Operating and standby mode ....................6 Line feed ............................ -
Page 3: Technical Data
ASCII Parity Even, odd, none ASCII Communication protocol Working life 500,000 lines Operating temperature 5°C – 35°C max. 80 % relative (not condensing) Humidity of air Dimensions 158 x 106 x 40 mm Weight 307 g (excl. paper roll) YKN-01-BA-e-1411... -
Page 4: Unpacking
Do not expose printer to direct sunlight or impacts. Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. YKN-01-BA-e-1411... -
Page 5: Printer Parts
4 Printer parts 1. Cover for paper compartment (removable) 2. LED displays for power supply 3. Button „LF“ 4. Button „SEL“ 5. LED for display „SEL“ 6. Paper output slot 7. RS232 interface 8. Mains connection YKN-01-BA-e-1411... -
Page 6: Description Of Buttons And Led Displays
„SEL“ button briefly while the printer is receiving data, the printer will pause after having printed out the current line. This pause allows you to operate the line feed. When you press the „SEL“ button again, the printer will continue printing the started printout. YKN-01-BA-e-1411... -
Page 7: Line Feed
⇒ Press and hold the „LF“ key until the paper emerges from the outlet slot of the mechanism Tearing off paper ⇒ Pull the printout across the direction of printout that it rests on the cutter bar of the printer housing Do not pull printout upwards. YKN-01-BA-e-1411... -
Page 8: Micro Switches
The changes are taken over when started-up again. • Always use KERN accessories and weighing balances when working with your printer. Disconnect the printer from the mains voltage before connecting the cable to the printer. -
Page 9: Instant Help
No printing is taking Check, whether the power cord is connected at both ends and place and paper does whether the printer prints a self-test. not emerge. If you are unable to remedy the error, please contact your supplier. YKN-01-BA-e-1411...
