IMB203 LGA775 ATX Motherboard User's Manual

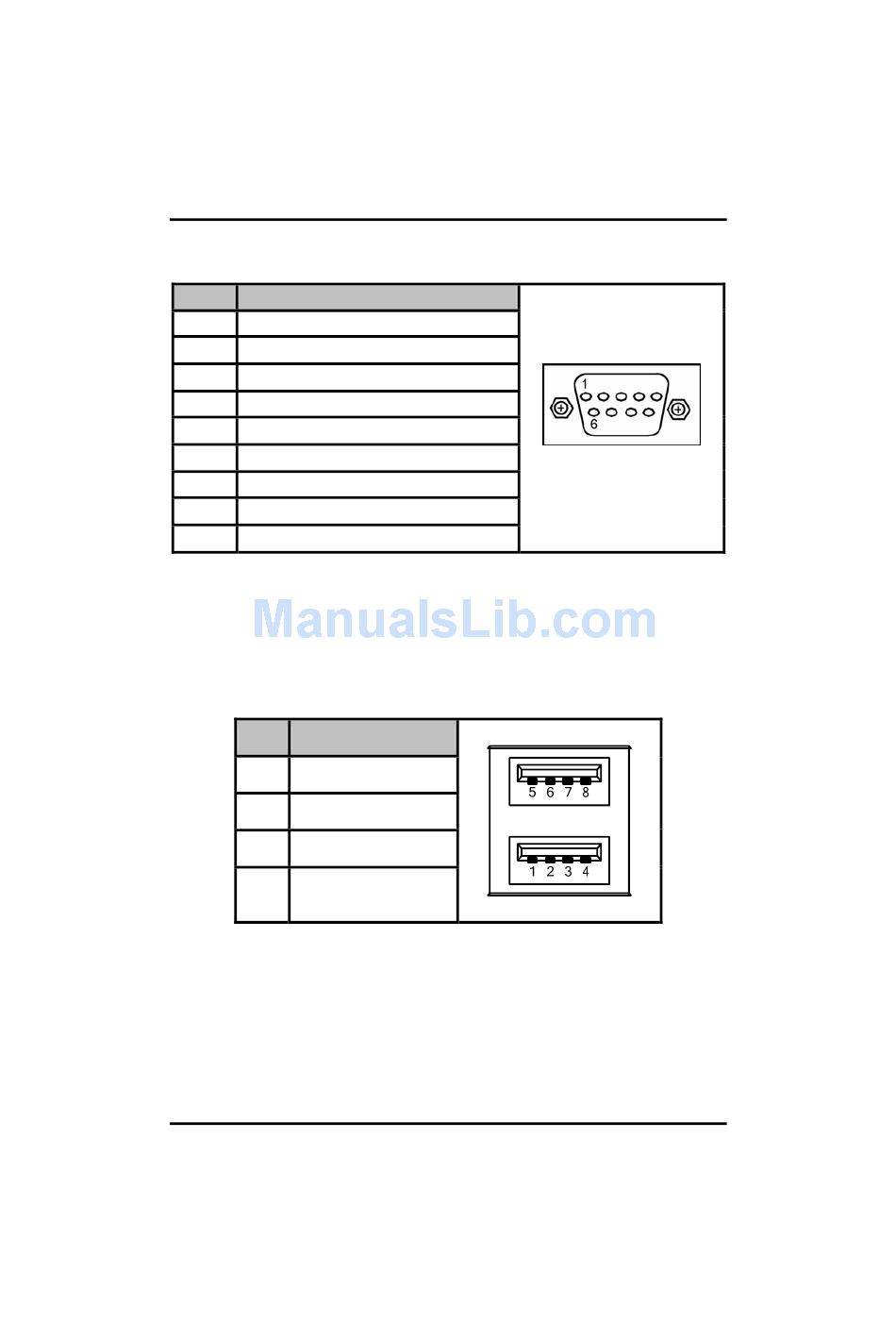

Print Port Pin Assignment (Default)
Pin
1
Data Carrier Detect (DCD)
2
Data Set Ready (DSR)
3
Receive Data (RXD)
4
Request to Send (RTS)
5
Transmit Data (TXD)
6
Clear to Send (CTS)
7
Data Terminal Ready (DTR)
8
Ring Indicator (RI)
9
Ground (GND)
2.4.7
USB Port Connector (CN6, CN7)
The Universal Serial Bus (USB) port connector on the board is for the
installation of peripherals supporting the USB interface. The CN6/CN7
consists of two 4-pin standard USB ports.
Pin
1, 5
2, 6
3, 7
4, 8
USB GND
Jumpers and Connectors
Signal
Signal
USB Vcc
USB -
USB +
15
