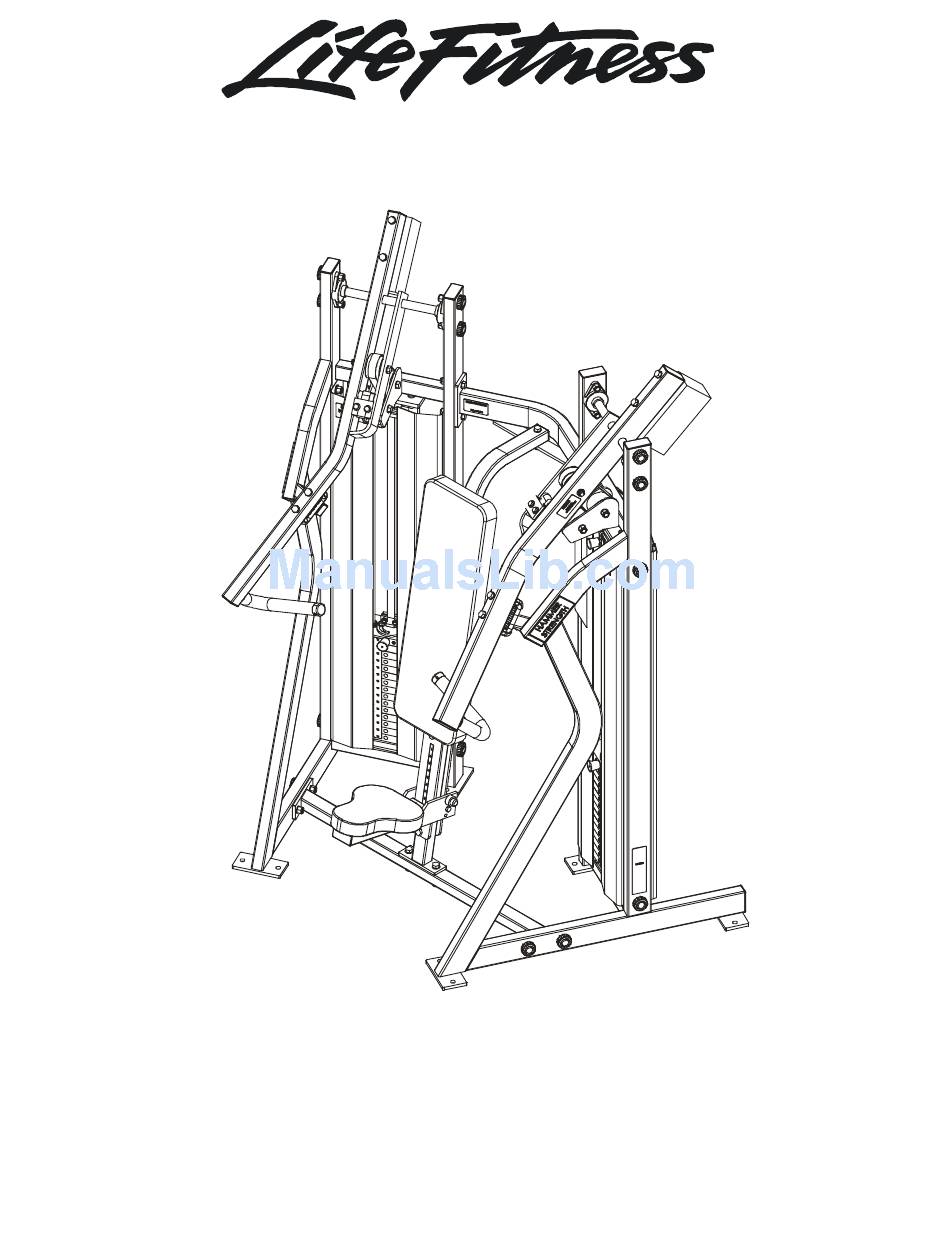

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTIP INCLINE PRESS S/N TIP030001 & ABOVE Customer Support Services PARTS MANUAL 1Page 1 of 18...
- Page 2 MTIP INCLINE PRESS S/N TIP030001 & ABOVE Notes: 2Page 2 of 18...
-
Page 3: Table Of Contents
MTIP INCLINE PRESS S/N TIP030001 & ABOVE Contents PAGE COMPONENT ASSEMBLY...4 RIGHT SIDE FRAME ASSEMBLY...5 LEFT SIDE FRAME ASSEMBLY...6 RIGHT SIDE SHIELDS W/WEIGHT STACK...7 LEFT SIDE SHIELDS W/WEIGHT STACK...8 RIGHT MOVEMENT ARM ...9 LEFT MOVEMENT ARM...10 PADS...11 SEAT FRAME WELDMENT...12 SEAT FRAME ASSEMBLY...13... -
Page 4: Component Assembly
MTIP INCLINE PRESS S/N TIP030001 & ABOVE COMPONENT ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION MTIP-A0011 SEAT FRAME ASSEMBLY MTIP-A0012 RIGHT SIDE FRAME ASSEMBLY MTIP-A0013 LEFT SIDE FRAME ASSEMBLY MTIP-S0010 BRACE WELDMENT, TOP MTIP-S0011 CROSS BRACE, BOTTOM M051-00299-A000 HAMMER PATENT DECAL... -
Page 5: Right Side Frame Assembly
MTIP INCLINE PRESS S/N TIP030001 & ABOVE RIGHT SIDE FRAME ASSEMBLY ITEM NO. QTY. MTIP-S0008 0017-00042-0993 0017-00033-0855 (MTIP) MTIP STRAP (76") 0017-00009-1034 0017-00101-1585 0017-00103-0226 0017-00101-1573 0017-00101-1574 0017-00104-0379 0017-00103-0223 0017-00042-1041 0017-00042-1038 0017-00042-0945 0017-00101-1572 PART NO. MTIP Right Side Frame WEIGHT STACK DONUT 1" THICK... -
Page 6: Left Side Frame Assembly
MTIP INCLINE PRESS S/N TIP030001 & ABOVE LEFT SIDE FRAME ASSEMBLY ITEM NO. QTY. PART NO. MTIP-S0009 0017-00042-0993 0017-00033-0855 (MTIP)MTIP STRAP (76") 0017-00009-1039 0017-00009-1034 0017-00101-1585 0017-00103-0226 0017-00101-1573 0017-00101-1574 0017-00104-0379 0017-00103-0223 0017-00042-1041 0017-00042-1038 0017-00042-0945 0017-00101-1572 DESCRIPTION MTIP Left Side Frame WEIGHT STACK DONUT 1" THICK 3"... -
Page 7: Right Side Shields W/Weight Stack
MTIP INCLINE PRESS S/N TIP030001 & ABOVE RIGHT SIDE SHIELDS W/WEIGHT STACK ITEM NO. QTY. 0017-00009-0933 (MTIP) Guide Rod (50.44") AK50-WS018 AK50-S0025 0K50-P1121 0017-00101-1412 0017-00103-0217 0017-00104-0377 0017-00103-0223 MTHR-P0040 0K50-P1144 (FORMED) 0017-00101-1587 0017-00042-0967 0K50-P1110 0017-00009-1019 AK50-S0021 0017-00104-0311 0K50-P1132 PART NO. DESCRIPTION... -
Page 8: Left Side Shields W/Weight Stack
MTIP INCLINE PRESS S/N TIP030001 & ABOVE LEFT SIDE SHIELDS W/WEIGHT STACK ITEM NO. QTY. PART NO. 0017-00009-0933 (MTIP)Guide Rod (50.44") AK50-WS018 AK50-S0023 0K50-P1121 0017-00101-1412 0017-00103-0217 0017-00104-0377 0017-00103-0223 MTHR-P0040 0K50-P1144 (FORMED) SHIELD BACK PANEL 0017-00101-1587 0017-00042-0967 0K50-P1110 0017-00009-1019 AK50-S0021 0017-00104-0311... -
Page 9: Right Movement Arm
MTIP INCLINE PRESS S/N TIP030001 & ABOVE RIGHT MOVEMENT ARM ITEM NO. QTY. MTIP-S0014 0K50-P1134 0017-00009-1039 0017-00042-1040 0017-00042-1038 H-GRIP 0K50-P1021 0K50-P0315-4000 0017-00101-1406 0017-00101-1580 0017-00104-0379 0017-00104-0377 0017-00101-1579 0017-00101-1412 0017-00103-0224 PART NO. MOVEMENT ARM (RIGHT) Marm CW 3" PULLEY ASSEMBLY HAMMER HEAD SMALL BUMPER 1 1/2 X 3 End Cap MTIP HANDLE GRIP (15.3") -
Page 10: Left Movement Arm
MTIP INCLINE PRESS S/N TIP030001 & ABOVE LEFT MOVEMENT ARM ITEM NO. QTY. MTIP-S0013 0K50-P1134 0017-00009-1039 0017-00042-1040 0017-00042-1038 H-GRIP 0K50-P1021 0017-00101-1406 0K50-P0315-4000 0017-00101-1580 0017-00103-0224 0017-00104-0379 0017-00101-1412 0017-00104-0377 0017-00101-1579 PART NO. DESCRIPTION MOVEMENT ARM (LEFT) Marm CW 3" PULLEY ASSEMBLY HAMMER HEAD SMALL BUMPER 1 1/2 X 3 End Cap MTIP HANDLE GRIP (15.3") -
Page 11: Pads
MTIP INCLINE PRESS S/N TIP030001 & ABOVE PADS ITEM NO. QTY. PART NO. DESCRIPTION 0K50-US063-0000 MTS 11 X 33 BACK 0K50-US065-0000 MTS BIKE SEAT 0017-00104-0313 3/8" SAE Flat Washer 0017-00101-1412 3/8 X 1 1/4 Bolt 0017-00101-1417 3/8 X 2 1/2 Bolt... -
Page 12: Seat Frame Weldment
MTIP INCLINE PRESS S/N TIP030001 & ABOVE SEAT FRAME WELDMENT ITEM NO. QTY. PART NO. MTIP-S0012 BACK FRAME WELDMENT, SEAT 0K50-S1001 MTS Standard Seat #1 0K50-P1017 Seatrack Front 0K50-P1018 Seatrack Back 0K50-P1007 Standard Hammer Seat Shaft 0017-00009-1019 3/4" Lock Collar... -
Page 13: Seat Frame Assembly
MTIP INCLINE PRESS S/N TIP030001 & ABOVE SEAT FRAME ASSEMBLY ITEM NO. QTY. MTDP-S0002 7359401 7359501 AK50-A1007 0017-00101-1662 0017-00104-0377 0017-00103-0289 73763 0017-00103-0217 0017-00101-1408 0017-00101-1664 M051-00296-A000 0017-00042-0945 M051-00602-A000 7442601 PART NO. DESCRIPTION Seat Frame Weldment Seatrack, Roller Serrated Seatrack, Roller Flat MTS SEAT#2 ASSM. -
Page 14: Seat Roller Assembly
MTIP INCLINE PRESS S/N TIP030001 & ABOVE SEAT ROLLER ASSEMBLY ITEM NO. QTY. 0K50-S1006 AK50-S0040-0000 0017-00009-1110 73763 0017-00101-1662 0017-00103-0223 0017-00104-0377 0017-00042-1038 PART NO. DESCRIPTION MTS SEAT #1 (ROLLER) WELDMENT, PS- ROLLER SEAT HANDLE TORSION SPRING, S.S. ROLLER ASSM. M10 X 64 HXS SOC CS ST ZN 1/2"... -
Page 15: Increment Weight
MTIP INCLINE PRESS S/N TIP030001 & ABOVE INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 15Page 15 of 18 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 16: Weight Stack
MTIP INCLINE PRESS S/N TIP030001 & ABOVE WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 16Page 16 of 18 Weight Stack Guide-2 MTFP-P0028 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) -
Page 17: Right Side Decals
MTIP INCLINE PRESS S/N TIP030001 & ABOVE RIGHT SIDE DECALS ITEM NO. QTY. M051-00297-A000 M051-00289-A000 M051-00294-A000 M051-00293-A000 PART NO. DESCRIPTION INCREMENT WT. DECAL (RIGHT) HAMMER STRENGTH NAME PLATE WEIGHT STACK NUMBER STRIP WARNING DECAL 17Page 17 of 18... -
Page 18: Left Side Decals
MTIP INCLINE PRESS S/N TIP030001 & ABOVE LEFT SIDE DECALS ITEM NO. QTY. PART NO. M051-00298-A000 M051-00289-A000 M051-00294-A000 M051-00293-A000 M051-00291-A000 M051-00335-A000 DESCRIPTION INCREMENT WT. DECAL (LEFT) HAMMER STRENGTH NAME PLATE WEIGHT STACK NUMBER STRIP WARNING DECAL MTS INCLINE PRESS INSTRUCTIONAL DECAL...
