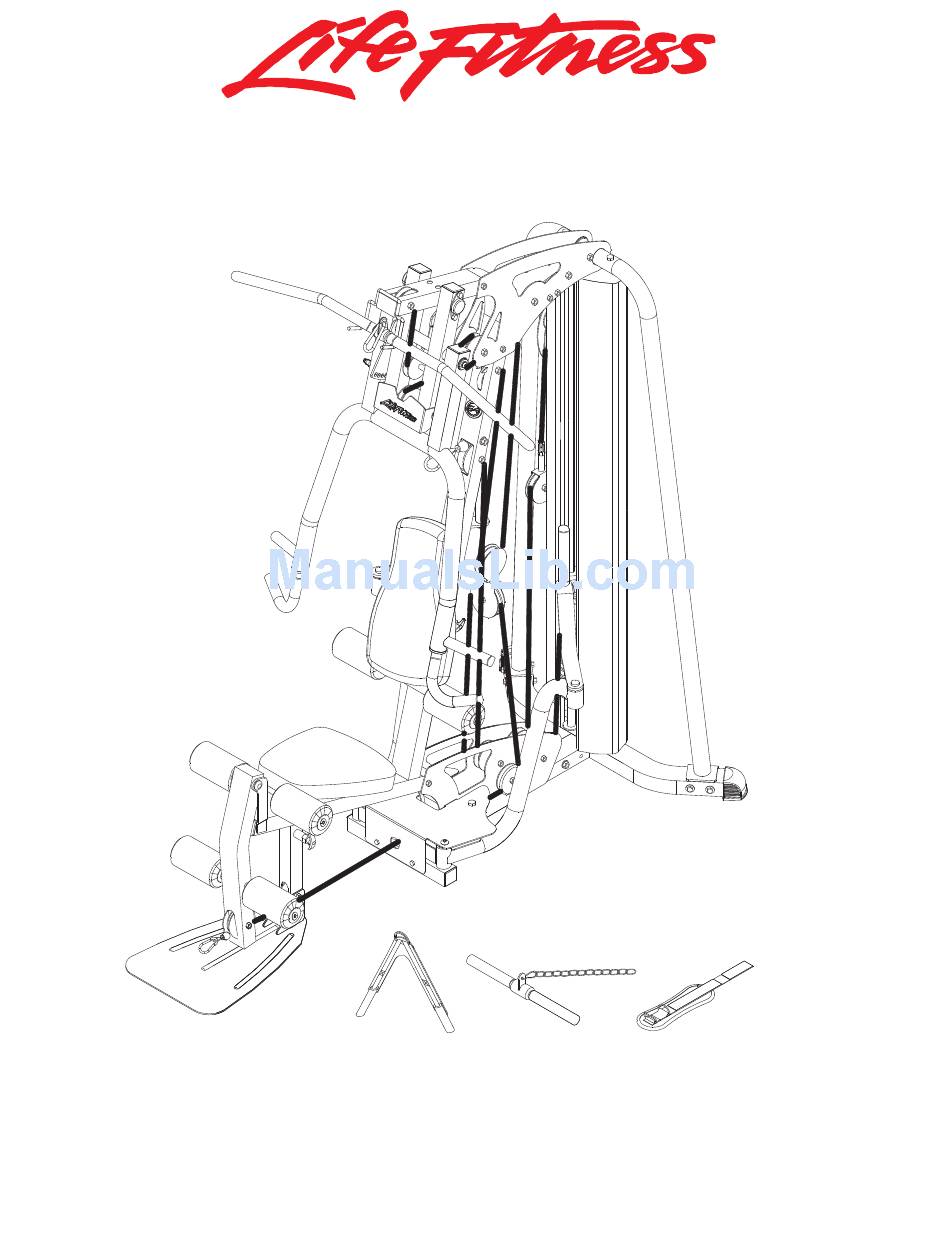

- Page 1 G4-001 G4 HOME GYM Customer Support Services PARTS MANUAL...
-
Page 2: Table Of Contents
G4-001 G4 HOME GYM ______________________________________ CONTENTS COMPONENT ASSEMBLY I COMPONENT ASSEMBLY I LEGEND COMPONENT ASSEMBLY II COMPONENT ASSEMBLY II LEGEND COMPONENT ASSEMBLY III COMPONENT ASSEMBLY IV COMPONENT ASSEMBLY V COMPONENT ASSEMBLY V LEGEND LAT CABLE PEC FLY CABLE GUIDE CABLE... -
Page 3: Component Assembly I
G4-001 G4 HOME GYM COMPONENT ASSEMBLY I ______________________________________ Page 3 LEGEND ON PAGE 4... -
Page 4: Component Assembly I Legend
G4-001 G4 HOME GYM COMPONENT ASSEMBLY I LEGEND ______________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8589201 ASSY, FRAME, G4 8589501 ASSY, BASE, G4 8602501 BASE PLATE 8587801 WLDMT, FOOT PLATE 8602601 BOOM PLATE LEFT 8602701 BOOM PLATE RIGHT 8589901 ASSY, LEFT REAR UPRIGHT... -
Page 5: Component Assembly Ii
G4-001 G4 HOME GYM ______________________________________ COMPONENT ASSEMBLY II LEGEND ON PAGE 6 Page 5... -
Page 6: Component Assembly Ii Legend
G4-001 G4 HOME GYM ______________________________________ COMPONENT ASSEMBLY II LEGEND ITEM NO. QTY. PART NO. DESCRIPTION 8582201 CAP, END 75 X 50 8582101 LAT BAR HOOK COVER - 3/8 ID X 4-3/8 L 8584301 ADJUSTABLE GLIDE 8589401 GS4 ALUMINUM LOGO 8599401... -
Page 7: Component Assembly
G4-001 G4 HOME GYM ______________________________________ COMPONENT ASSEMBLY III ITEM NO. QTY. PART NO. DESCRIPTION 8589701 END CAP, 2 SQ 8580601 LABEL, LF LOGO 6.63 3268901 WASHER, SPRING - 3/8 3269101 SCREW, FLAT HEAD ALLEN - 3/8 X 1L 3268601 SCREW, SET 5/16 - 18UNC X 1/4L... -
Page 8: Component Assembly
G4-001 G4 HOME GYM ______________________________________ COMPONENT ASSEMBLY IV ITEM NO. QTY. PART NO. DESCRIPTION 8587901 CAP AL 38.1 OD X 32.3 ID X 22.2H 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO 8602401 HAND GRIP 1-1/4 X 180L 8588501 COLLAR, SHAFT, AL 32.5 OD X 11.1H... -
Page 9: Component Assembly V
G4-001 G4 HOME GYM ______________________________________ COMPONENT ASSEMBLY V 16 17 LEGEND ON PAGE 10 Page 9... -
Page 10: Component Assembly V Legend
G4-001 G4 HOME GYM ______________________________________ COMPONENT ASSEMBLY V LEGEND ITEM NO. QTY. PART NO. DESCRIPTION 3102970 .50- 13 X 5.75 HEX HEAD BOLT 8585001 CAP, END 1-3/4 8585401 CAP, END 2 SQ 6480302 SPACER,FLNG3/8ID X5/8OD X1.062 8582201 CAP, END 75 X 50... -
Page 11: Lat Cable
G4-001 G4 HOME GYM ______________________________________ LAT CABLE ITEM NO. QTY. PART NO. 8603701 3102967 8644701 3102514 8597703 3116201 3102807 3102905 8604701 3102924 8597702 3116101 8604401 Page 11 199.75" 5075mm DESCRIPTION LAT CABLE - 199.75L 3/8-16 X 8 UNS HEX FHB G2 ZN... -
Page 12: Pec Fly Cable
G4-001 G4 HOME GYM ______________________________________ PEC FLY CABLE ITEM NO. QTY. 90.5" 2959mm PART NO. DESCRIPTION 8604001 PEC FLY CABLE - 90.5L 3116201 PULLEY, 3-1/2 OD X 3/8 ID X 1 8603501 L CABLE RETAINER 3102807 NUT, NYLOCK 3/8-16 LOW HT... -
Page 13: Guide Cable
G4-001 G4 HOME GYM ______________________________________ GUIDE CABLE ITEM NO. 96" 2440mm QTY. PART NO. DESCRIPTION 8603901 GUIDE CABLE - 96L 3102924 3/8-16X1-3/4 UNS HEX FHB G2 ZN 3102807 NUT, NYLOCK 3/8-16 LOW HT 3102514 WASHER, FLAT 3/8 IN SAE ST ZN... -
Page 14: Low Cable
G4-001 G4 HOME GYM ______________________________________ LOW CABLE 168" 4270mm ITEM NO. QTY. PART NO. 8603801 3102905 3102514 8604703 3102904 8604702 3102807 8604701 3102924 8597702 DESCRIPTION LOW CABLE - 168L 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN WASHER, FLAT 3/8 IN SAE ST ZN... -
Page 15: Weight Stack Assembly
G4-001 G4 HOME GYM ______________________________________ WEIGHT STACK ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 7292801 PTD ASSY, HEAD PLATE 20 HOLE ACUWT-PLATE 215102 SINGLE WT PLATE 10 LBS 7308601 LABEL;WEIGHT STACK 1-26 7286601 BEARING,SLEEVE 20ID X23 X 15MM 3221702 E-RING, EXTERNAL 3/4... -
Page 16: Supplied Accessories
G4-001 G4 HOME GYM ______________________________________ SUPPLIED ACCESSORIES ITEM NO. LIFE FITNESS G4-001 HOME GYM USER GUIDE G4-001 HOME GYM G4-001 HOME GYM G4-001 HOME GYM G4-001 HOME GYM G4-001 HOME GYM G4-001 HOME GYM QTY. PART NO. DESCRIPTION 8598701 ASSY, LAT BAR, G4... -
Page 17: Hardware Bag
G4-001 G4 HOME GYM ______________________________________ HARDWARE BAG HARDWARE BAG PART NUMBER BAG CONTAINS: 8607801 ITEM DESCRIPTION 3102970 .50- 13 X 5.75 HEX HEAD BOLT 3102917 1/2-13X4 UNS HEX FHB G2 ZN 3102967 3/8-16 X 8 UNS HEX FHB G2 ZN...
