Page 1: Parts List

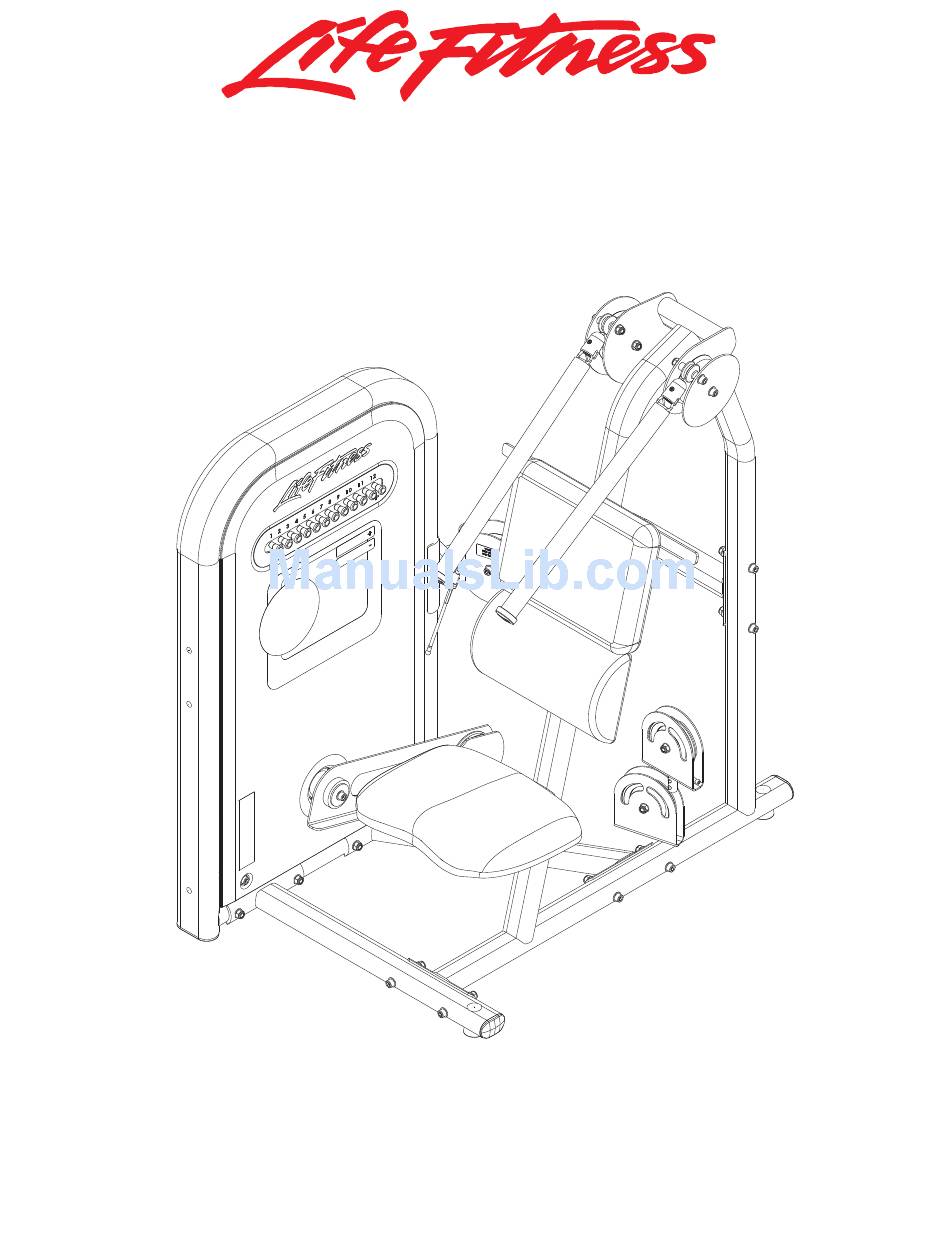

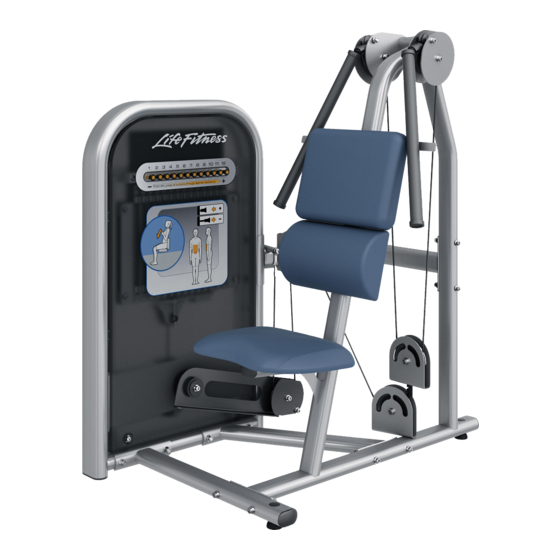

CIRCUIT SERIES TCAB AB CRUNCH Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
TCAB AB CRUNCH Contents ________________________________________ COMPONANT ASSEMBLY COMPONANT ASSEMBLY LEGEND SEAT FRAME ASSEMBLY FRONT BRACE ASSEMBLY UPPER BRACE ASSEMBLY GRIP ASSEMBLY PULLEY BRACKET ASSEMBLY FRONT SHROUD ASSEMBLY TOWER ASSEMBLY TOWER ASSEMBLY LEGEND TOWER HEADER ASSEMBLY REAR SHROUD IMAGE COLOR LEGEND Item numbers ending in ‘XX’... - Page 3 TCAB AB CRUNCH COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3...
-
Page 4: Tcab Ab Crunch
TCAB AB CRUNCH COMPONANT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 79854XX ASSY, FINAL, TC-TOWER 80224XX ASSY, TCAB, SEAT FRAME 80225XX ASSY, TCAB, BRACE FRONT 80226XX ASSY, TCAB, BRACE UPPER 8024701 ASSY, SHROUD, FRONT, TC-TOWER,TCAB 8024801 ASSY, TC-TOWER, SHROUD REAR, TCAB 79895XX WLDMT, TCAB, BRACE REAR 80143XX... -
Page 5: Seat Frame Assembly
TCAB AB CRUNCH SEAT FRAME ASSEMBLY - 80224XX ____________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 80224XX ASSY, TCAB, SEAT FRAME 3102514 WASHER, FLAT 3/8" SAE ST ZN 3242002 NUT, M10 X 1.5 HEX NYLOCK 3251203 SCREW, M10 X1.5 X 30MM UNS HEX CS ST ZN 3251706 SCREW, M10 X1.5 45MM 3237801 PULLEY, 4.5"... -
Page 6: Front Brace Assembly
TCAB AB CRUNCH FRONT BRACE ASSEMBLY- 80225XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 80225XX ASSY, TCAB, BRACE FRONT 7800501 CAP, SML FLOV END 7893001 FOOT, LEVELER 3251203 SCREW, M10 X1.5 X 30MM UNS HEX CS ST ZN 3102514 WASHER, FLAT 3/8" SAE ST ZN 3242002 NUT, M10 X 1.5 HEX NYLOCK 7893101... -
Page 7: Upper Brace Assembly
TCAB AB CRUNCH UPPER BRACE ASSEMBLY - 80226XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 80226XX ASSY, TCAB, BRACE UPPER 3251712 SCREW, M10 X1.5 75MM 3102514 WASHER, FLAT 3/8" SAE ST ZN 7616601 PULLEY, V-GROOVE 4-1/2 OD X 2 3242002 NUT, M10 X 1.5 HEX NYLOCK 8031701 LABEL, WARNING, 2.43 X 1.06... -
Page 8: Grip Assembly
TCAB AB CRUNCH TCAB GRIP ASSEMBLY - 8023601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8032701 8026501 Page 8 ASSY, TCAB, STRAP GRIP, TCAB, HANDLE... -
Page 9: Pulley Bracket Assembly
TCAB AB CRUNCH PULLEY BRACKET ASSEMBLY - 80227XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 79894XX WLDMT, TAB, PULLEY BRKT 3237801 PULLEY, 4.5" OD 3242002 NUT, M10 X 1.5 HEX NYLOCK 3102514 WASHER, FLAT 3/8" SAE ST ZN 3251706 SCREW, M10 X1.5 45MM Page 9... -
Page 10: Front Shroud Assembly
FRONT SHROUD ASSEMBLY - 8024701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8012601 SHROUD, TC-TOWER, FRONT 8024601 LABEL, TC, SELECTOR 7422004 LABEL, 2" ASTM WARN 8025201 LABEL, INSTR, STRENGTH CIRCUIT, TCAB 8037701 LABEL, TC, LIFE FITNESS 8047101 LABEL, TC, SELECTOR, MULTI-LANGUAGE Page 10... -
Page 11: Tower Assembly
TCAB AB CRUNCH TOWER ASSEMBLY - 79854XX ________________________________________ SEE PAGE 12 FOR LEGEND Page 11... -
Page 12: Tower Assembly Legend
TCAB AB CRUNCH TOWER ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 79855XX WLDMT, TC-TOWER, FRAME 79856XX WLDMT, TC-TOWER, COVER 3253915 SCREW, M8 X1.25 90MM 3242004 NUT, M8 X 1.25 HEX NYLOCK 3252802 M6-1.0 X 10 HXS BUT CS ST ZN 3251204 SCREW, M10 X1.5 X 35MM UNS HEX CS ST ZN 3102509... -
Page 13: Tower Header Assembly
TCAB AB CRUNCH TOWER HEADER ASSEMBLY - 7995801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7995901 BAR, HEADER, FRONT 7996001 PLATE, SPRING RETAINER 3262001 M6-1.0 X 10 TORX BUT CS ST ZN 8020001 PIN, TC-TOWER, SELECTOR 8013001 KNOB, TC-TOWER, PIN 3265601 BALL, CHROME ALLOY STEEL X 3.5MM 3253202 SPRING, .12 DIA X .438 X .018 WIRE DIA Page 13... -
Page 14: Rear Shroud
TCAB AB CRUNCH REAR SHROUD ASSEMBLY - 8024801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8012701 SHROUD, TC-TOWER, REAR 8024901 LABEL, STRENGTH CIRCUIT, TCAB 8037701 LABEL, TC, LIFE FITNESS 8038001 LABEL, TCAB, PLACARD REAR Page 14... -
Page 15: Image
TCAB AB CRUNCH IMAGE ________________________________________ Page 15...
