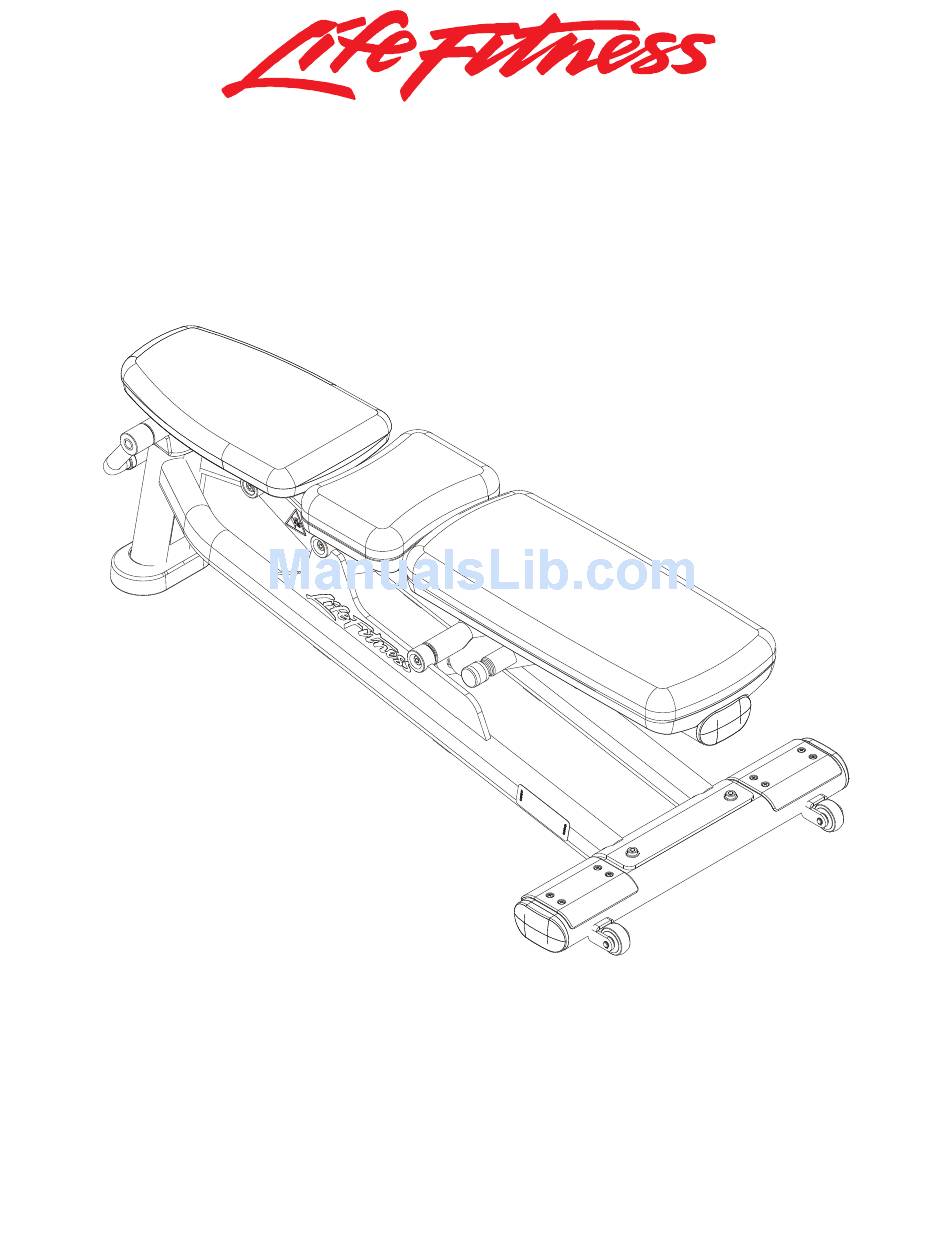

Page 1: Parts List
SIGNATURE SERIES SMAB SIGNATURE MULTI ADJUSTABLE BENCH Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SMAB SIGNATURE MULTI ADJUSTABLE BENCH CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND FRAME ASSEMBLY FRAME ASSEMBLY LEGEND BACK PAD SUPPORT ASSEMBLY SEAT ADJUSTMENT ASSEMBLY BASE FRAME ASSEMBLY IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’ WITH THE REQUIRED COLOR CODES. FRAME 01 = WHITE 02 = PLATINUM... -
Page 3: Component Assembly
SMAB SIGNATURE MULTI ADJUSTABLE BENCH COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
SMAB SIGNATURE MULTI ADJUSTABLE BENCH COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 81815XX ASSY, SMAB, FRAME 78138XX PAD, 10 X 16 TAPERED CONVEX 78140XX PAD, 24 X 11 FLAT 80987XX PTD ASSY, SMAB, BASE FRAME 3237403 PLUG, 1" HOLE 3256204 SCREW, M10 X 1.5 35MM ZN 3256202 SCREW, M10 X 1.5 25MM ZN 3102514 WASHER, FLAT 3/8"... -
Page 5: Frame Assembly
SMAB SIGNATURE MULTI ADJUSTABLE BENCH FRAME ASSEMBLY - 81815XX ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Frame Assembly Legend
7351302 PIN, PULL X 3.375 7351501 SPRING; PULL PIN LARGE 7424801 KNOB, POP PIN 7865201 LABEL, LIFE FITNESS LOGO 8106801 LABEL, SERIAL NUMBER, LARGE 7002501 LABEL; H WARNING 4.5 X 1.625 8087201 BUSHING, SLIP TUBE, PLASTIC, 55.3MM OD X 45.2MM ID... -
Page 7: Back Pad Support Assembly
SMAB SIGNATURE MULTI ADJUSTABLE BENCH BACK PAD SUPPORT ASSEMBLY - 82441XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82441XX ASSY, SMAB, BACK PAD SPRT 8039501 LABEL, WARNING, TRIANGLE Page 7... -
Page 8: Seat Adjustment Assembly
SMAB SIGNATURE MULTI ADJUSTABLE BENCH SEAT ADJUSTMENT ASSEMBLY - 82442XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 82442XX ASSY, SMAB, SEAT ADJ 8039501 LABEL, WARNING, TRIANGLE Page 8... -
Page 9: Base Frame Assembly
SMAB SIGNATURE MULTI ADJUSTABLE BENCH BASE FRAME ASSEMBLY - 80987XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 80986XX WLDMT, SMAB, BASE SPPRT 7800401 CAP, LRG FLOV END 7810801 PAD, RUBBER FOOT 3114407 WASHER, FLAT #10 SAE ST BZ 3239102 SCREW, M5 X .8 X 12 PHL PAN TT ST BZ 3232405 RNG, BRE .352,5100-37,ST,PP,B 7656301 WHEEL, 2 OD X 3/8 ID RUBBER 7705302 AXLE, WHEEL... -

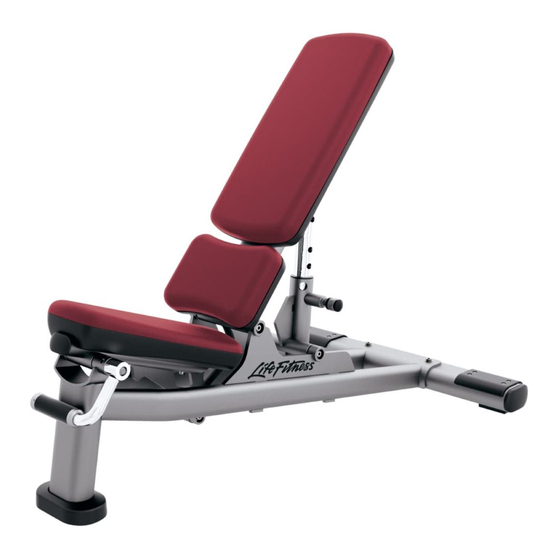

Page 10: Image
SMAB SIGNATURE MULTI ADJUSTABLE BENCH IMAGE ________________________________________ Page 10...
