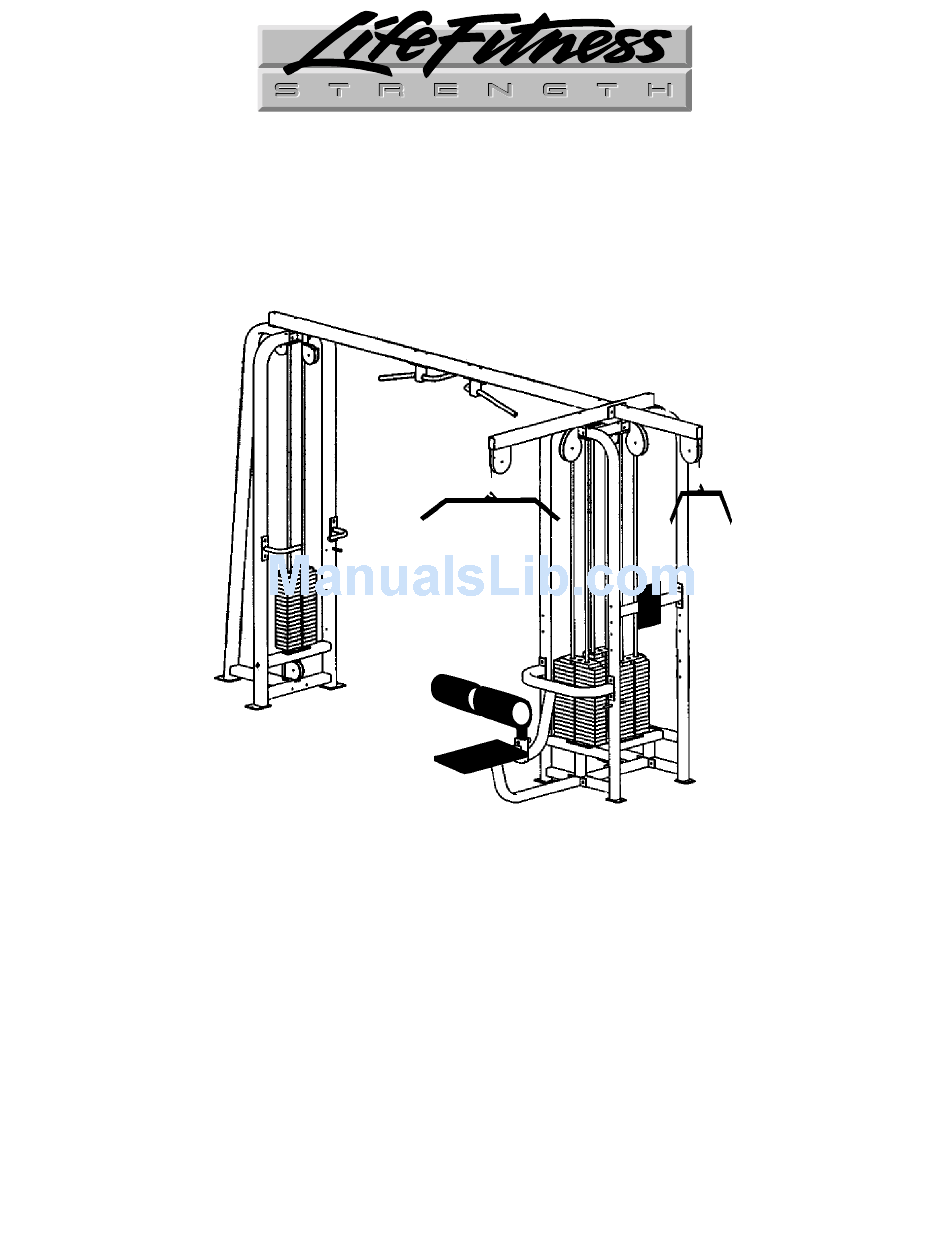

- Page 1 4 STACK MULTI-JUNGLE WITH HIGH & LOW PULLEYS (SM41) UNPACKING AND ASSEMBLY INSTRUCTIONS M051-K50-A141...
-
Page 2: Assembly Time
SM41 Unpacking & Assembly Instructions The SM41 comes partially assembled. Follow the steps below to complete the assembly. WARNING: COMPONENTS OF THE SM41 ARE LARGE AND HEAVY. USE CAUTION WHEN ASSEMBLING THIS MACHINE. MATERIALS AND TOOLS REQUIRED FOR ASSEMBLY 1/2”, 3/8”, 5/8” & 9/16”... - Page 3 3. Remove the items in the parts box. These items are shown in Figure 1. A. Remove the bolts bag. B. Remove the parts shown below. Parts that are used to build the SM41 are described in the section HARDWARE at the end of these instructions.
- Page 4 SM41 Unpacking & Assembly Instructions ASSEMBLY Figure 2 shows an assembled SM41. 1. 1 stack cell 2. 4 stack cell 3. Lat bench 4. Connecting beam 1. Place the two weight “cells” in their final resting spots. The cells will be approximately 11’4”...
- Page 5 SM41 Unpacking & Assembly Instructions Figure 3. Set the weight stack cells. 2. Bolt on the teardrop pulley above the bench (see Figure 4) on the 4 stack cell using two 3/8” x 2-3/4” hex head bolts. Include the 3/8” flat washer, end cap washers, end caps and 3/8”...
- Page 6 SM41 Unpacking & Assembly Instructions Figure 5. Configuration for 2-3/4” and 3” bolts. 3. Bolt on the connecting beam (part 4 from Figure 2) using a 5/8” socket with extension and combination wrench, to the cells using two of the large 7/16” x 6” bolts, 7/16”...
- Page 7 Leave the pulleys out of the housings until the cables have been installed. Figure 7. Configuration for 6” bolts. 150 pound weight stack 300 pound weight stack Figure 8. Mount the weight stacks. SM41 Unpacking & Assembly Instructions 150 pound weight stack...
- Page 8 SM41 Unpacking & Assembly Instructions 5. Mount the weight stacks to the 3-stack cell. To do this: A. Remove the tricep back rest bolts using a 9/16” socket and combination wrench (see Figure 9). B. Unbolt the top plate and remove the guide rods using a 9/16” socket and combination wrench (see Figure 9).
- Page 9 Figure 12. Leave the pulleys out since you will need to have them out when the cable is routed. Figure 12. Bolt the floating pulley into the 190 lb weight stack (on cable crossover). SM41 Unpacking & Assembly Instructions...
- Page 10 SM41 Unpacking & Assembly Instructions 7. Mount the lat bench to the frame. Using the bolts specified in Figure 13 and a 9/16” socket and combination wrenches, mount the lat bench as shown in Figures 13 and Figure 13. Mount the benches to the frame.
-
Page 11: Installing The Cables
INSTALLING THE CABLES The SM41 uses four cables. There are two different types of cable used on the SM41. They are: 1. Crossover cables (ball end cables) (2). 2. Lat pulldown and tricep cables (2). The lat and tricep cables can be identified by their short length and the adjustable crossover cables can be identified by the ball on the end of the cable. - Page 12 SM41 Unpacking & Assembly Instructions CROSSOVER CABLE ROUTING Once you’ve removed the pulleys as described previously, route the crossover cables on the 4-stack cell as shown in Figure 16. The crossover cable is routed at the factory on the 1-stack cube.
- Page 13 Screw the bolt down into the weight stack as shown at right. Tighten the bolt with a 7/8” combination wrench. Figure 18. Screw the cable into the weight stack. SM41 Unpacking & Assembly Instructions...
- Page 14 SM41 Unpacking & Assembly Instructions TRICEP PUSHDOWN CABLE ROUTING Route the tricep pushdown cable as shown in Figure 19. Screw the cable into the weight stack as shown previously in Figure 18. Figure 19. Tricep pushdown cable routing.
- Page 15 SM41 Unpacking & Assembly Instructions HARDWARE ½ ½ ½ ½ ½ ½ Hardware Figure 1. Assembly Parts.
- Page 16 SM41 Unpacking & Assembly Instructions The parts shown in Hardware Figure 1 are used to assemble the SM41. They are: A. 7/16” x 6” hex head bolt (used to bolt the tricep top beam, adjustable crossover top beam, lat top beam, and connecting beam to the tops of the cells) B.
- Page 17 Hardware Figure 2. Cable jam nut. M. Cable jam nut Hardware Figure 3 shows the types of cables that are included with the SM41. Hardware Figure 3. Cables. N. Lat pulldown cables (same as tricep cable) (1) P.
- Page 18 SM41 Unpacking & Assembly Instructions S. Teardrop pulleys (bolt on above lat bench) (1) T. 56” Lat top (bolt to top of 4-stack cell with pulleys above lat bench) (1) U. 29” Tricep top (bolt on to 56” lat top bar) (1)
- Page 19 SM41 Unpacking & Assembly Instructions Hardware Figure 6. Weight stack rubber bumpers. W. Weight stack rubber bumpers (inserted under weight stacks) (8) Hardware Figure 7. Floating pulleys. X. Floating pulley (bolt to 190 lb weight stack other than tricep pushdown stack) (1)
-
Page 20: Parts List
SM41 Unpacking & Assembly Instructions PARTS LIST Hardware Kit: SK50-S0083-0000 Part # Main components Cables, caps & nuts 0017-00103-0234 0017-00101-1408 0017-00101-1408 0017-00101-1422 0017-00101-1561 6” bolt hardware 0017-00101-1561 0017-00104-0363 0017-00104-0366 0017-00103-0233 2-3/4” & 3” bolt hardware 0017-00101-1422 0017-00101-1408 0017-00042-0969 0017-00104-0313 0017-00104-0368... - Page 21 Pulley hardware (installed) 0017-00101-1413 0017-00104-0368 0017-00103-0217 Floating pulley hardware (installed) 0017-00101-1413 0017-00104-0313 0017-00103-0217 SM41 Unpacking & Assembly Instructions 1-3/4” Bolt Cap washer 3/8” Nyloc nut 1-3/4” Bolt Flat washer 3/8” Nyloc nut...
