SM22 ASSEMBLY INSTRUCTIONS

M051-K50-A163

Need help?

Do you have a question about the SM22 and is the answer not in the manual?

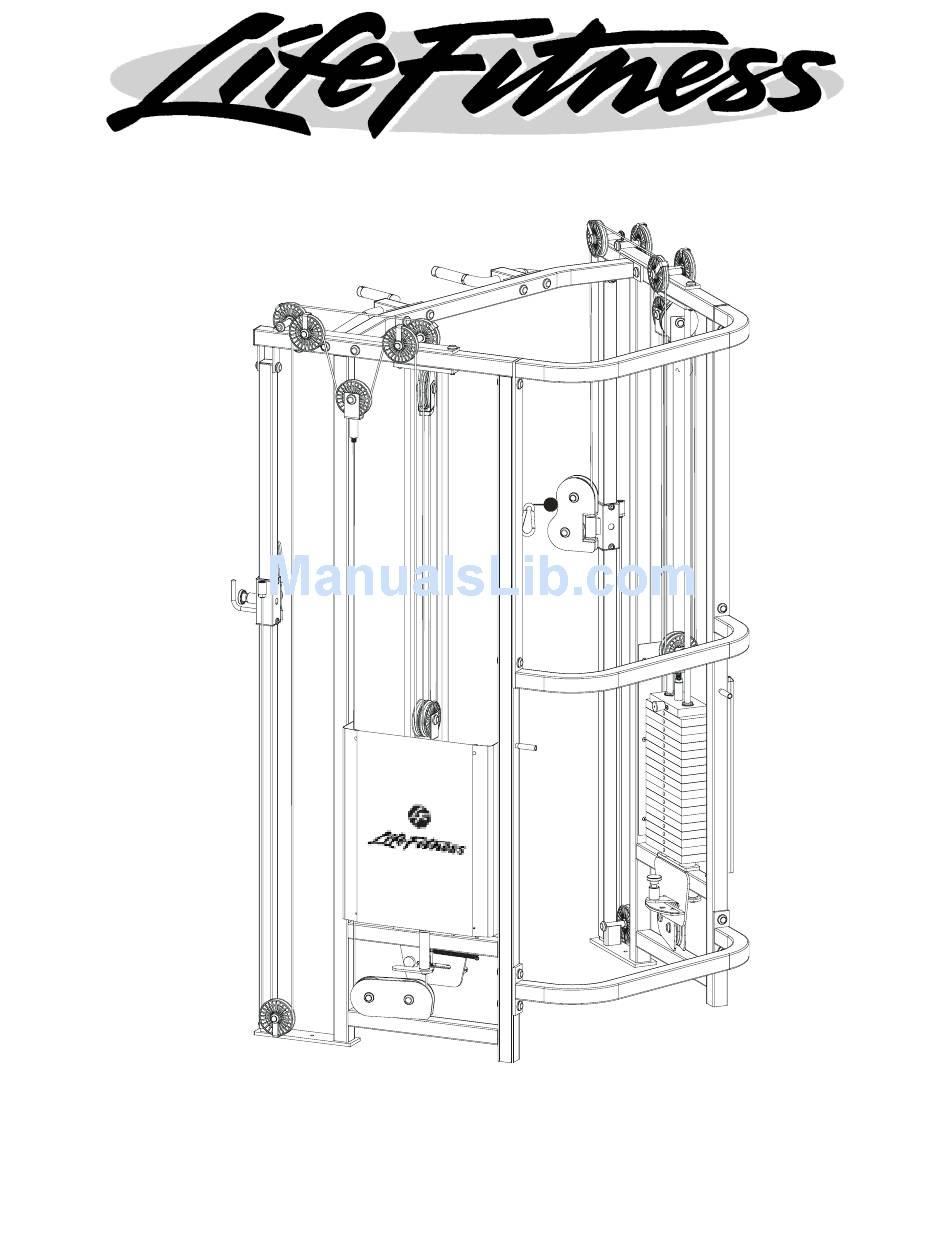

Page 1 SM22 ASSEMBLY INSTRUCTIONS M051-K50-A163...
Page 2: Assembly Time
SM22 Assembly Instructions The SM22 comes partially assembled. Follow the steps below to complete the assembly. WARNING: THE SM22 IS LARGE AND HEAVY. USE CAUTION WHEN ASSEMBLING THIS MACHINE. IT IS RECOMMENDED THAT THIS MACHINE BE BOLTED TO THE FLOOR.
Page 3 4. Unbolt the Top and lift it off of the pallet. 5. Slide the Back Brace off of the pallet. WARNING: THE SIDES OF THE SM22 ARE VERY UNSTABLE UNTIL THE MACHINE HAS BEEN COMPLETELY ASSEMBLED. SOMEONE SHOULD BE HOLDING THE SIDES UNTIL THEY HAVE BEEN ASSEMBLED.
Page 4 SM22 Assembly Instructions ASSEMBLY 3/8” x 2-3/4” bolt (12) Caplug washer Nyloc nut Caplug Caplug Figure 3. SM22 assembly.
Page 5 7. Check to see that the pulley adjustment mechanism works correctly by lifting the handle (see Figure 2) and placing it into each of the two holes. Then attach a handle to the cable and lift the weight stack in each of the variable resistance positions. Figure 4. Adjusting the pulleys. SM22 Assembly Instructions...
Page 6: Parts List
SM22 Assembly Instructions WEIGHT STACK STICKER PLACEMENT The figure below shows where to place the weight stack stickers. The row of lower weight plate numbers needs to go above the “Lighter” sticker and the row of higher weight plate numbers need to go above the “Heavier”...
