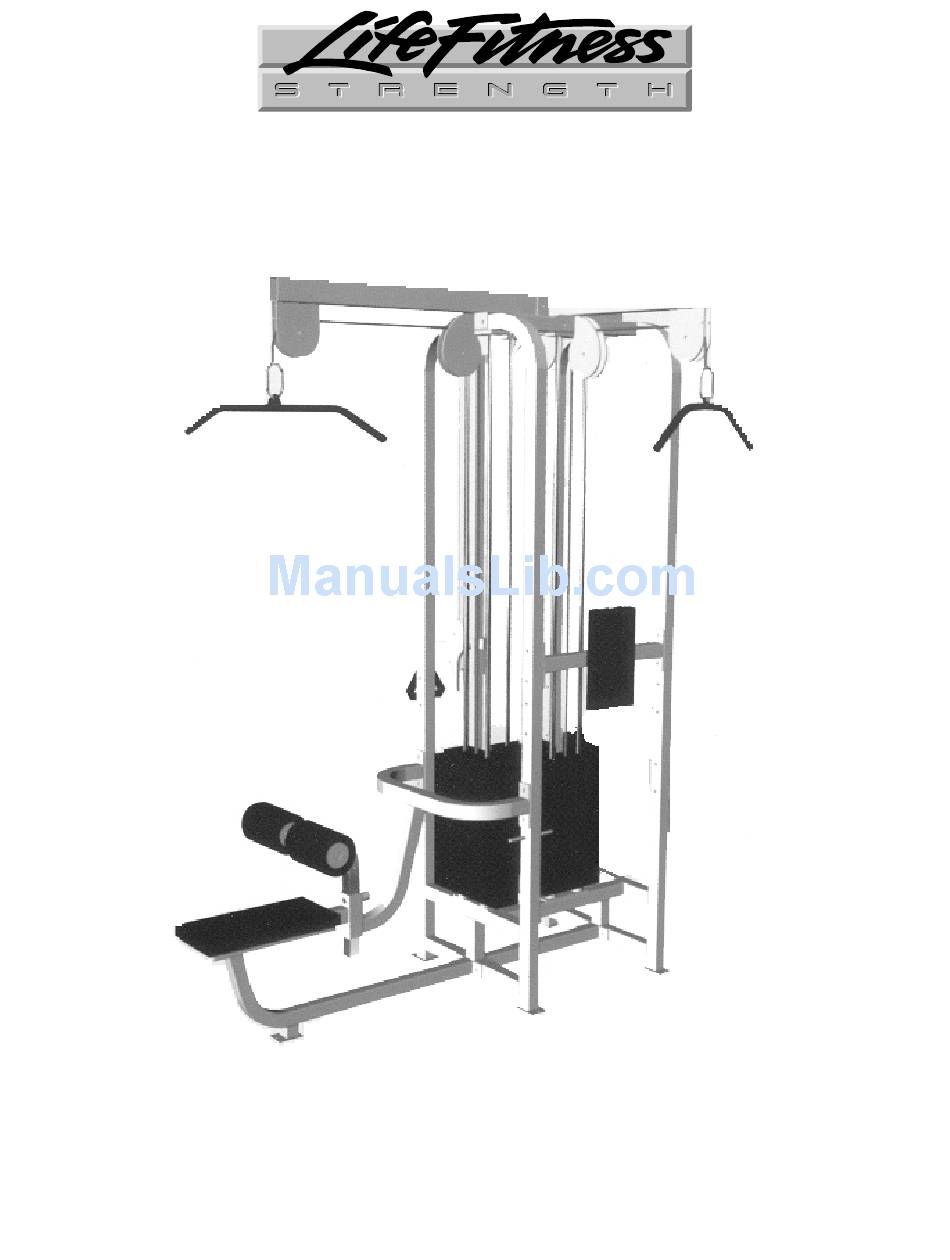

3 STACK MULTI-JUNGLE (SM30)
UNPACKING AND ASSEMBLY INSTRUCTIONS
M051-K50-B140
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness SM30

Summary of Contents for Life Fitness SM30

  • Page 1 3 STACK MULTI-JUNGLE (SM30) UNPACKING AND ASSEMBLY INSTRUCTIONS M051-K50-B140...

  • Page 2: Assembly Time

    SM30 Unpacking & Assembly Instructions The SM30 comes partially assembled. Follow the steps below to complete the assembly. WARNING: COMPONENTS OF THE SM30 ARE LARGE AND HEAVY. USE CAUTION WHEN ASSEMBLING THIS MACHINE. MATERIALS AND TOOLS REQUIRED FOR ASSEMBLY 1/2”, 3/8”, 5/8” & 9/16”...
  • Page 3 3. Remove the items in the parts box. These items are shown in Figure 1. A. Remove the bolts bag. B. Remove the parts shown below. Parts that are used to build the SM30 are described in the section HARDWARE at the end of these instructions.
  • Page 4 SM30 Unpacking & Assembly Instructions ASSEMBLY Figure 2 shows an assembled SM30. Figure 2. SM30 main components (seats and cables removed for clarity). 1. Cube 2. Lat bench 3. Lat top 4. Tricep top 1. Place the weight cube in its final resting spot.
  • Page 5 SM30 Unpacking & Assembly Instructions Figure 3. Configuration for 2-3/4” and 3” bolts. 2. Bolt on the teardrop pulleys above the bench and the tricep pulldown (see Figure 3) on both cubes using six 3/8” x 2-3/4” hex head bolts. Include the 3/8” flat washer, end cap washers, end caps and 3/8”...
  • Page 6 SM30 Unpacking & Assembly Instructions 3. Mount the tops. Mount the 56” lat top to the cell by inserting two of the large 7/16” by 6” bolts using the hardware configuration shown in Figure 5. Use a 5/8” socket with extension and combination wrench.
  • Page 7 B. Using a 9/16” socket and combination wrench, unbolt the top plate and remove the guide rods (see Figure 10). The SM30 includes two guide rods that are used to contain the shipping box. These guide rods are the ones opposite the lat pulldown bench and will not have a weight stack on them.
  • Page 8 SM30 Unpacking & Assembly Instructions F. With the top plate on the guide rods, bolt on the top plate to the top of the cells as shown in Figure 8 using a 9/16” socket and combination wrench and the 3” bolts (with cap washers) that were previously inserted.
  • Page 9 7. Mount the lat bench to the frame. Using the bolts specified and 9/16” socket and combination wrenches, mount the bench to either side of the frame as shown in Figures 11 and 12. 3/8” x 2-3/4” (4) Figure 11. Mount the bench to the frame. SM30 Unpacking & Assembly Instructions 3/8” x 3” (2)
  • Page 10 SM30 Unpacking & Assembly Instructions Figure 12. Bolt the benches to the frame.

  • Page 11: Installing The Cables

    INSTALLING THE CABLES The SM30 uses three cables. There are two different types of cable used on the SM30. They are: 1. Adjustable cable (ball end cable) (1). 2. Lat pulldown and tricep cables (2). The lat and tricep cables can be identified by their short length and the adjustable cable can be identified by the ball on the end of the cable.
  • Page 12 SM30 Unpacking & Assembly Instructions ADJUSTABLE CROSSOVER CABLE ROUTING Once you’ve removed the pulleys as described previously, route the crossover cable as shown in Figure 14. Figure 14. Adjustable crossover cable routing.
  • Page 13 SM30 Unpacking & Assembly Instructions Figure 15. Adjustable crossover cable end detail. Using a 7/8” wrench, tighten the jam nut onto the adjustable pulley threads as shown in Figure 15. Place a rubber cap on the top of the cable as shown in Figure 15 (right).
  • Page 14 SM30 Unpacking & Assembly Instructions Bolt the cable to the weight stacks as shown in Figure 17. Thread the 7/8” nut up on the cable bolt as shown at left. Screw the bolt down into the weight stack as shown at right. Tighten the bolt with a 7/8”...
  • Page 15 SM30 Unpacking & Assembly Instructions HARDWARE ½ ½ ½ ½ ½ ½ Hardware Figure 1. Assembly Parts.
  • Page 16 SM30 Unpacking & Assembly Instructions The parts shown in Hardware Figure 1 are used to assemble the SM30. They are: A. 7/16” x 6” hex head bolt (used to bolt the tricep top beam, adjustable crossover top beam, lat top beams, and connecting beam to the tops of the cubes) B.
  • Page 17 Hardware Figure 3. Cable jam nut. M. Cable jam nut Hardware Figure 4 shows the types of cables that are included with the SM30. Hardware Figure 4. Cables. N. Lat pulldown cable (same as tricep cable) P.
  • Page 18 SM30 Unpacking & Assembly Instructions S. Teardrop pulleys (bolt on above tricep station and lat pulldown) T. 56” Lat top (bolt to top of cells with pulleys above lat benches) U. 29” Tricep top (bolt on to 56” lat top bar) V.
  • Page 19 SM30 Unpacking & Assembly Instructions Hardware Figure 6. Weight stack rubber bumpers. W. Weight stack rubber bumpers (inserted under weight stacks) Hardware Figure 7. Floating pulley. X. Floating pulley (bolt to 190 lb weight stacks other than tricep pushdown stack)

  • Page 20: Parts List

    SM30 Unpacking & Assembly Instructions PARTS LIST Hardware Kit: SK50-S0081-0000 Part # Main components Cables, caps & nuts 0017-00042-0936 0017-00103-0234 6” bolt hardware 0017-00101-1561 0017-00104-0363 0017-00104-0366 0017-00103-0233 2-3/4” & 3” bolt hardware 0017-00101-1422 0017-00101-1408 0017-00042-0969 0017-00104-0313 0017-00104-0368 0017-00103-0217 Pulleys and bumpers...
