SM20 Unpacking & Assembly Instructions The SM20 comes partially assembled. Follow the steps below to complete the assembly. WARNING: COMPONENTS OF THE SM20 ARE LARGE AND HEAVY. USE CAUTION WHEN ASSEMBLING THIS MACHINE. MATERIALS AND TOOLS REQUIRED FOR ASSEMBLY 9/16” 9/16”...
Page 3

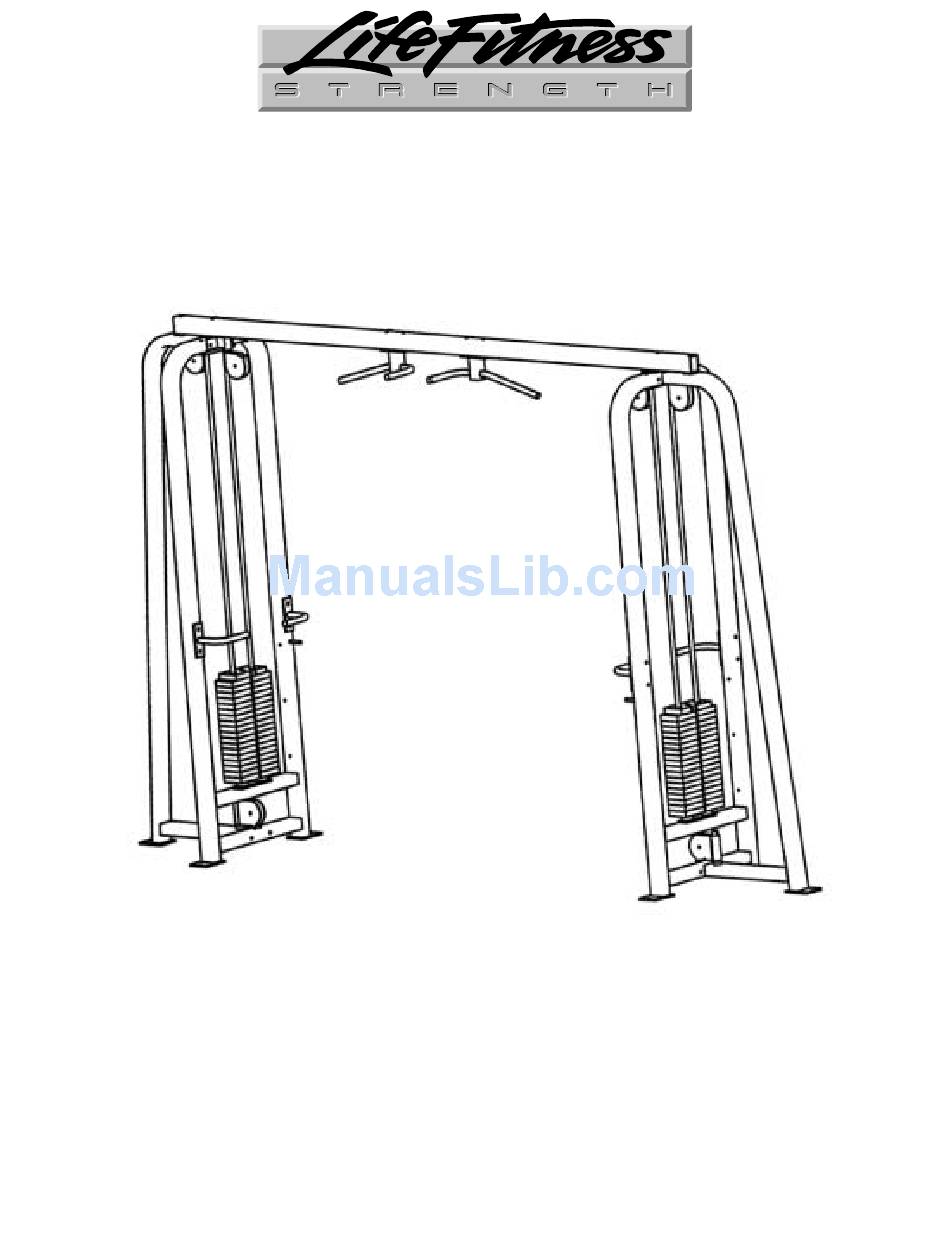

SM20 Unpacking & Assembly Instructions ASSEMBLY Figure 1 shows an assembled SM20. Figure 1. SM20 main components (cables removed for clarity). 1. 1 stack cell (2) 2. Connecting beam 1. Place the two weight “cells” in their final resting spots. The cells will be approximately 11’4”...
Page 4
SM20 Unpacking & Assembly Instructions 3. Bolt on the connecting beam using a 5/8” socket with extension and combination wrench, to the cells using the four 7/16” x 6” bolts, 7/16” washers, and 7/16” nuts, end cap washers and end caps. Figure 3 shows the connected cells. You may wish to use a pinch bar to align the bolt holes.
Page 5
SM20 Unpacking & Assembly Instructions CROSSOVER CABLE ROUTING NOTE: THE INFORMATION BELOW IS FOR REFERENCE ONLY. THE CABLES ON THE SM20 HAVE BEEN INSTALLED AT THE FACTORY. Figure 5. Crossover cable routing.
Page 6
SM20 Unpacking & Assembly Instructions Figure 8. Screw the pulley into the weight stack.
Page 7
HARDWARE Hardware Figure 1. Assembly Parts. The parts shown in Hardware Figure 1 are used to assemble the SM20. They are: A. 7/16” x 6” hex head bolt (used to bolt connecting beam to the tops of the cells) B. 7/16” flat washer C.
