6 STACK MULTI-JUNGLE (SM60)
WITH HIGH & LOW PULLEYS
UNPACKING AND ASSEMBLY INSTRUCTIONS
M051-K50-A136
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM60 and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness SM60

Summary of Contents for Life Fitness SM60

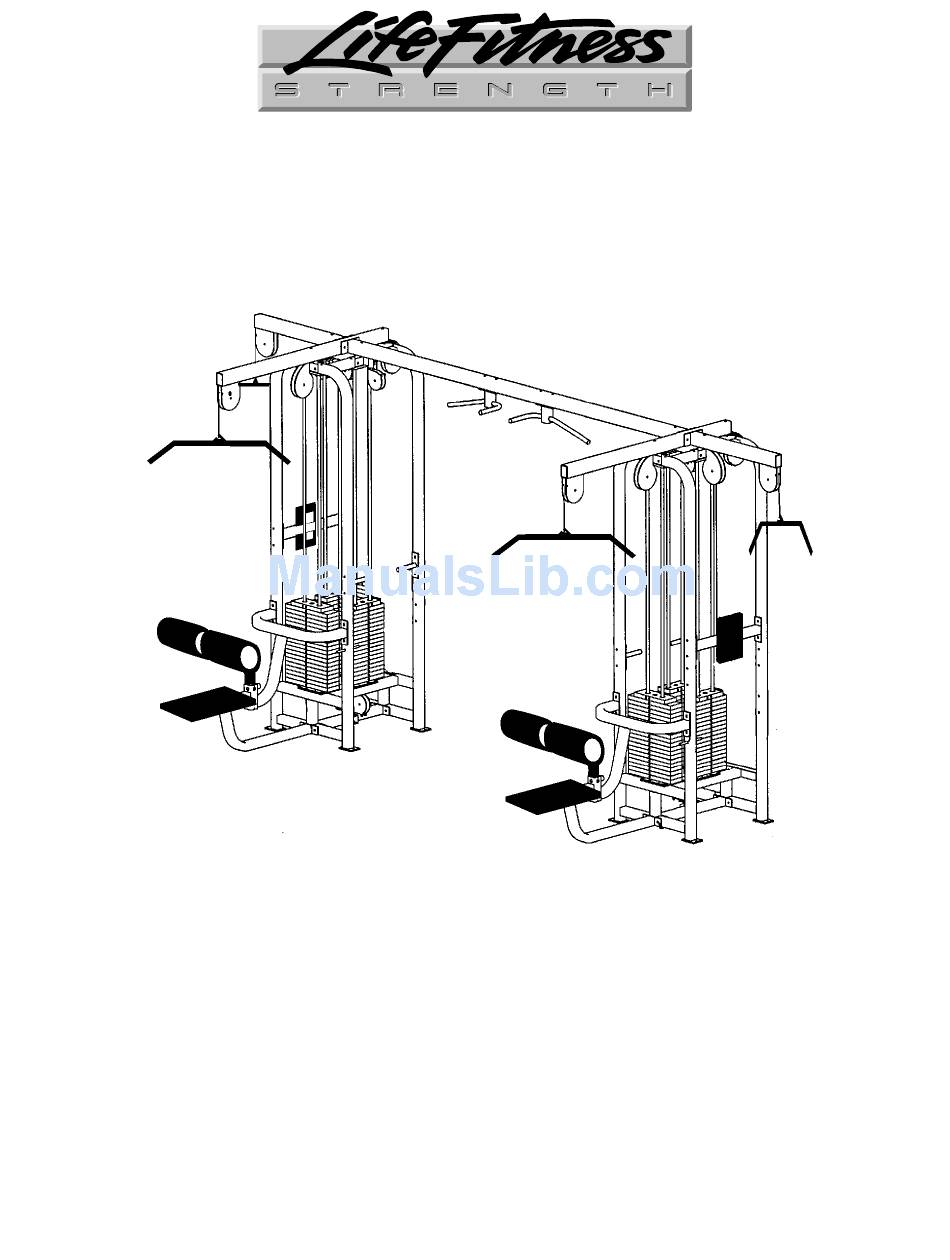

  • Page 1 6 STACK MULTI-JUNGLE (SM60) WITH HIGH & LOW PULLEYS UNPACKING AND ASSEMBLY INSTRUCTIONS M051-K50-A136...

  • Page 2: Assembly Time

    SM60 Unpacking & Assembly Instructions The SM60 comes partially assembled. Follow the steps below to complete the assembly. WARNING: COMPONENTS OF THE SM60 ARE LARGE AND HEAVY. USE CAUTION WHEN ASSEMBLING THIS MACHINE. MATERIALS AND TOOLS REQUIRED FOR ASSEMBLY 1/2”, 3/8”, 5/8” & 9/16”...
  • Page 3 3. Remove the items in the parts boxes. These items are shown in Figure 1. A. Remove the bolts bag. B. Remove the parts shown below. Parts that are used to build the SM60 are described in the section HARDWARE at the end of these instructions.
  • Page 4 SM60 Unpacking & Assembly Instructions ASSEMBLY Figure 2 shows an assembled SM60. 1. Cubes (2) 2. Lat bench (2) 3. Connecting beam (1) 1. Place the two weight “cubes” in their “final resting spots.” The cubes will be approximately 11’4” apart as shown in Figure 3.
  • Page 5 SM60 Unpacking & Assembly Instructions Figure 3. Set the weight stack cubes. 2. Bolt on the teardrop pulleys above the benches (see Figure 4) on both cubes using two 3/8” x 2-3/4” hex head bolts (used to bolt the cross beam to the cross members and the adjustable pulley tops to the top beams).
  • Page 6 SM60 Unpacking & Assembly Instructions Figure 4. Bolt on the teardrop pulleys. Figure 5. Configuration for 6” bolts.
  • Page 7 Figure 7). Use the hardware configuration shown. You will need to remove the pulleys from the teardrop pulley assemblies to gain clearance for the socket wrench extension. Leave the pulleys out of the housings until the cables have been installed. SM60 Unpacking & Assembly Instructions 7/16” x 6” (8)- mount on tops...
  • Page 8 SM60 Unpacking & Assembly Instructions 150 lb. weight stack 300 lb. weight stack Figure 8. Mount rubber bumpers and the weight stacks. 5. Install the weight stacks. To do this: A. Using a 9/16” socket and combination wrench, remove the tricep back rest bolts (see Figure 9).
  • Page 9 Figure 11 using a 9/16” socket and combination wrench and the 3” bolts (with cap washers) that were previously inserted. Figure 11. Bolt on the top plate. SM60 Unpacking & Assembly Instructions D. Flip over the weight stack onto piano dolly.
  • Page 10 SM60 Unpacking & Assembly Instructions 6. Bolt the floating pulleys into the 190 lb weight stacks used for the crossovers using a 7/8” combination wrench. You will need to remove the pulley from the housing to thread the plug into the weight stack bayonet. Make sure the 9/16” jam nut is threaded 1-5/8”...
  • Page 11 SM60 Unpacking & Assembly Instructions Use a pinch bar to align the seat frame holes to the cubes Figure 13. Mount the benches to the frame. Figure 14. Bolt locations on the frame.

  • Page 12: Installing The Cables

    SM60 Unpacking & Assembly Instructions INSTALLING THE CABLES The SM60 uses six cables. There are two different types of cable used on the SM60. They are: 1. Crossover cables (ball end cables) (2). 2. Lat pulldown and tricep cables (4).
  • Page 13 Bolt the cable to the weight stacks as shown in Figure 17. Thread the 7/8” nut up on the cable bolt as shown at left. Screw the bolt down into the weight stack as shown at right. Tighten the bolt with a 7/8” combination wrench. SM60 Unpacking & Assembly Instructions...
  • Page 14 SM60 Unpacking & Assembly Instructions Figure 17. Screw the cable into the weight stack. LAT PULLDOWN CABLE ROUTING Route the lat pulldown cable as shown in Figure 18. Screw the cable into the weight stack as shown previously in Figure 18.
  • Page 15 SM60 Unpacking & Assembly Instructions TRICEP PUSHDOWN CABLE ROUTING Route the tricep pushdown cable as shown in Figure 19. Screw the cable into the weight stack as shown previously. Figure 19. Tricep pushdown cable routing.
  • Page 16 SM60 Unpacking & Assembly Instructions HARDWARE ½ ½ ½ ½ ½ ½ Hardware Figure 1. Assembly Parts.
  • Page 17 The parts shown in Hardware Figure 1 are used to assemble the SM60. They are: A. 7/16” x 6” hex head bolt (used to bolt the tricep top beams, lat top beams, and connecting beam to the tops of the cubes) B.
  • Page 18 SM60 Unpacking & Assembly Instructions S. Teardrop pulleys (bolt on above lat pulldown) (2) T. 56” Lat tops (bolt to top of cells with pulleys above lat benches) (2) U. 29” Tricep top (bolt on to 56” lat top bar) (2)
  • Page 19 SM60 Unpacking & Assembly Instructions Hardware Figure 5. Weight stack rubber bumpers. W. Weight stack rubber bumpers (inserted under weight stacks) Hardware Figure 6. Floating pulleys. X. Floating pulleys (bolt to 190 lb cable crossover weight stacks)

  • Page 20: Parts List

    SM60 Unpacking & Assembly Instructions PARTS LIST Part # Main components Cables, caps & nuts 0017-00103-0234 0017-00101-1408 0017-00101-1408 0017-00101-1561 6” bolt hardware 0017-00101-1561 0017-00104-0363 0017-00104-0366 0017-00103-0233 2-3/4” & 3” bolt hardware 0017-00101-1422 0017-00101-1408 0017-00042-0969 0017-00104-0313 0017-00104-0368 0017-00103-0217 Pulleys and bumpers...
  • Page 21 Pulley hardware (installed) 0017-00101-1413 0017-00104-0368 0017-00103-0217 Floating pulley hardware (installed) 0017-00101-1413 0017-00104-0313 0017-00103-0217 SM60 Unpacking & Assembly Instructions 1-3/4” Bolt Cap washer 3/8” Nyloc nut 1-3/4” Bolt Flat washer 3/8” Nyloc nut...
