Summary of Contents for BlackVue DR650GW-2CH

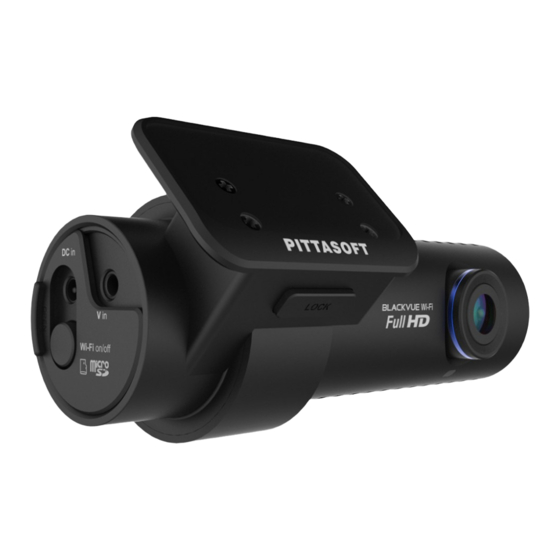

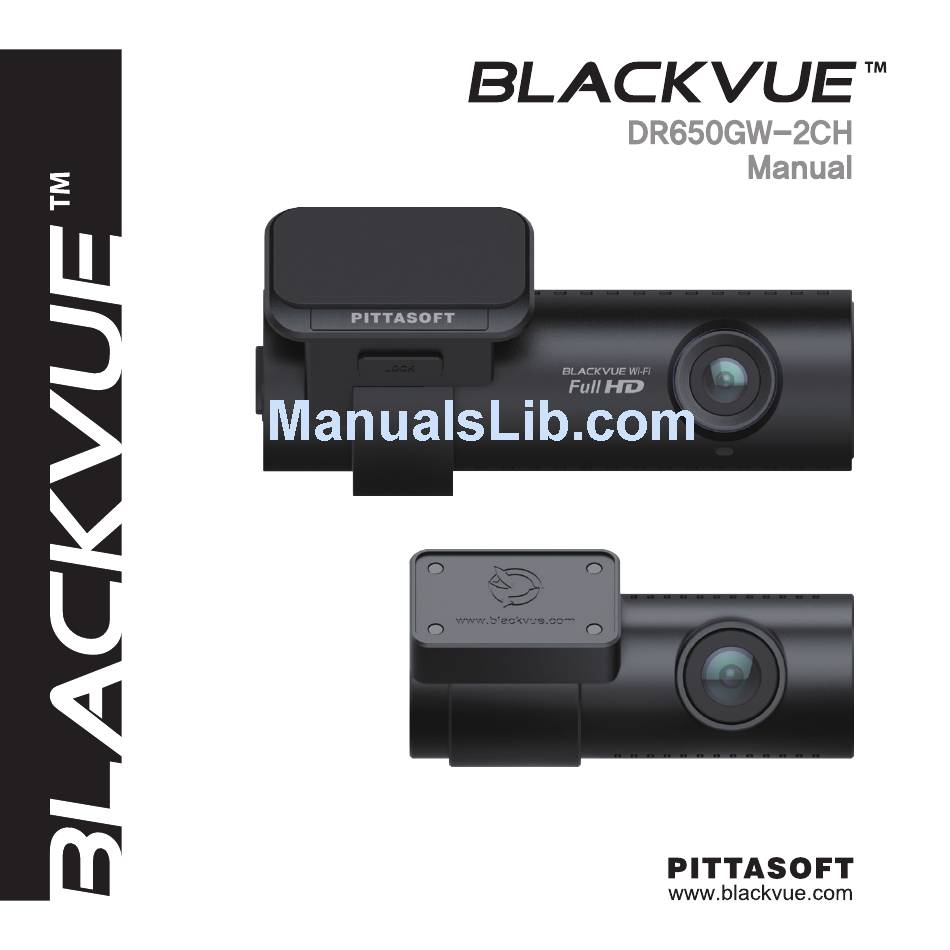

  • Page 2 BLACKVUE Wi-Fi 2CH DR650GW-2CH...
  • Page 3: Table Of Contents

    Video Recording Normal Recording Parking Mode Recording Event Recording Simple Video Playback How to Playback using a microSD Card How to Playback using the BlackVue App How to use the BlackVue Software Screen Description Video Playback Configuration Firmware Upgrade Product Specifications & Standards...
  • Page 4: Introduction To The Manual

    Caution y A formatted microSD card is provided when you purchase the product. Insert the microSD card into BlackVue, and turn on the power. The microSD card will be initialized, and programs such as BlackVue Viewer will be installed. BLACKVUE Wi-Fi 2CH...
  • Page 5: Getting Started

    Otherwise it can cause explosion, fire, or malfunction. y Do not operate the product with wet hands. It can cause electric shock. y Do not install it in an environment with high humidity, or combustible gases or liquids. It can cause explosion & fire. DR650GW-2CH...
  • Page 6 Connect the power cord firmly so that it cannot easily be disconnected. Otherwise it can cause fire. y Do not cover the product with any material. It can cause external deformation of the product or fire. Use the product and peripherals where ventilation is ensured. BLACKVUE Wi-Fi 2CH...
  • Page 7 The data may be damaged or malfunction caused. y Do not use the product with its cover opened. y It is recommended to install the product at the BlackVue installation center. You can check the the BlackVue installation center from the BlackVue homepage (www.blackvue.com).
  • Page 8 The use of the Power Magic (the Battery Discharge Prevention Device) can shorten the microSD card lifespan. y If a 64GB microSD card needs to be used, format it using BlackVue Viewer and insert it into the product. (26 page)
  • Page 9: Product Features

    2CH Wi-Fi Video Shooting Checking the front video as well as rear video through the built-in Wi-Fi SONY Exmor CMOS sensor Clearer vision with high image quality SONY image sensor and high-resolution megapixel lens during both day and night-time driving DR650GW-2CH...
  • Page 10 Detailed driving record such as vehicle speed and recording location information can be checked with BlackVue software VOD & real-time live view function With built-in Wi-Fi and the BlackVue App, video can be played regardless of place and time BlackVue App Watch recorded videos and live view through BlackVue App (support Android, iOS) Diverse recording options (Normal/Event/Parking) Event recording and automatic conversion &...
  • Page 11 Pictures of the components may differ from the actual ones. y To enhance the performance of the product, components may be changed without prior notice. y The package components can be purchased additionally from the BlackVue homepage (www.blackvue. com).
  • Page 12 Note y Tap the voice On/Off button to turn the voice recording function on or off. y Press the Wi-Fi button on the side for 10 seconds to format the microSD card without using a PC. 12 BLACKVUE Wi-Fi 2CH...
  • Page 13 Rear Camera Mounting Bracket Camera Lens Rear Security LED V out (Front camera connection port) DR650GW-2CH 13...
  • Page 14 How to Attach & Detach the Mounting Bracket of the Rear Camera Hold the mounting bracket and pull the the front camera out of the mounting bracket. Insert the rear camera into the Mounting Bracket until you hear clicking sound, to attach it. 14 BLACKVUE Wi-Fi 2CH...
  • Page 15: How To Install The Blackvue

    It is recommended to install the rear camera at the top of the rear window of the vehicle. Note y Do not install the product where it can interfere with the driver's vision. y It is recommended to install the product at the designated BlackVue installation center. DR650GW-2CH 15...
  • Page 16 Copy important data to other storage media to store. PittaSoft Co., Ltd. will not be held responsible for data loss due to user negligence. Note y Insert or remove the microSD card only when the product is turned off. y microSD cards are consumables. Replace them after prolonged use. 16 BLACKVUE Wi-Fi 2CH...
  • Page 17 It is necessary to use Power Magic (the Battery Discharge Prevention Device) to record video while the car is parked. y To use BlackVue with other equipment that uses a power cable, purchase and use a dual power outlet adaptor.
  • Page 18 Do not remove the microSD card while it is saving or reading data. The data may be damaged or malfunction caused. y Set the time (time zone) first before using the BlackVue for the first time. (36 page) Note y After a test drive, check if video was correctly recorded.
  • Page 19: Video Recording

    When the BlackVue is turned on, normal recording is automatically started. Note y If Power Magic (Battery Discharge Prevention Device) is connected, the BlackVue is not turned off. y The normal recording function can be disabled in the BlackVue viewer configuration. (36 page)
  • Page 20 Sensitivity to impact can be adjusted in the BlackVue viewer configuration. (38 page) y Event recording time can be adjusted in the BlackVue viewer conguration. (36 page) If you set the event recording time for 2 minute, it records video for 5 seconds before and 115 seconds after the impact.
  • Page 21: Simple Video Playback

    BlackVue website (www.blackvue.com). y With the BlackVue App, it's easy to play back videos and the Live View function can be used. For details of the BlackVue App, refer to How to Playback using the BlackVue App. (24 page)
  • Page 22 How to play back recorded videos may differ between navigators, so refer to your instruction manual for the details. y If there are many recorded videos in the microSD card, it may take a long time to load the file. y Some navigation systems don't support full HD video playback. 22 BLACKVUE Wi-Fi 2CH...
  • Page 23 Open an application to play back recorded videos and select the movie you want to play back from the removable drive. Note y For how to play back using the BlackVue viewer, refer to Video Playback. (28 page) DR650GW-2CH 23...
  • Page 24 Google Play store, Apple App Store, and Windows store. Note y The BlackVue application can be used with Android 2.3 or later, iOS 5.0 or later, and Windows 8.0. y Some functions may not be supported depending on the smartphone.
  • Page 25 If the Live View or VOD playback & copy function is used while it is connected via Wi-Fi and recording Full HD (1920x1080) @30fps, the recording frame is reduced to 20 fps. y For details of the BlackVue App, refer to the BlackVue App manual. Access the BlackVue website (www. blackvue.com) and download the BlackVue App manual.
  • Page 26: How To Use The Blackvue Software

    How to use the BlackVue Software Screen Description Double-click the BlackVue Viewer icon in the microSD card to run BlackVue Viewer. In order to install BlackVue Viewer on the PC, connect to the BlackVue website (www.blackvue.com) and download it. Name...
  • Page 27 You can adjust the screen, playback speed or volume while a recorded video is played Playback Option back. For the details on the playback option buttons, refer to How to Control the Button Playback of Recorded Video. (28 page) DR650GW-2CH 27...
  • Page 28 ESC to return to default view. y While playing back a recorded video, use the mouse wheel to zoom in/out. y While playing back a recorded video, right-click the screen to view 100 % zoom-in screen. 28 BLACKVUE Wi-Fi 2CH...
  • Page 29 To use the Magnifier function, you should enable only either front video display or rear video display by pressing Front or Rear on the recorded video list. y You can use the Magnifier function only in BlackVue Viewer for Windows. DR650GW-2CH 29...
  • Page 30 Timeline for Sec Month Selection Min Selection Selection Note y In the date selection area, the date with a recorded video is marked by a red circle and the currently- selected date is marked by a yellow circle. 30 BLACKVUE Wi-Fi 2CH...
  • Page 31 When you select Sound Off, the voice is removed from the recorded video to be saved. Press the OK button and select the file name you want, together with the path. Press the Save button to finish. DR650GW-2CH 31...
  • Page 32 How to Verify Files With the recorded video list, a file can be verified forgery. Select a file from the recorded video list and right-click it. Click Verification and click OK button. 32 BLACKVUE Wi-Fi 2CH...
  • Page 33 With the +/- button or mouse wheel, the map can be zoomed in/out. Speed Unit Change Map Type Selection Zoom-In/Out Car Location Note y To use the map service, an Internet connection is required. y Only for the recorded file with GPS information, the data can be checked. DR650GW-2CH 33...
  • Page 34 Selection Record Starting Point Driving Route Currently-Played File Car Location Note y To use the map service, an Internet connection is required. y Only for the recorded file with GPS information, the data can be checked. 34 BLACKVUE Wi-Fi 2CH...
  • Page 35 Select a file from the recorded video list and play it back. From the image to be saved, click the button. Note y Use the timeline or press the button to explore detailed images. Press the button. Select the printer and click the OK button. DR650GW-2CH 35...
  • Page 36 Recording Time. (46 page) Normal Record, Voice Record, Date and Time Display and Auto Switching to Parking Recording Mode function can be turned on/off. Configuration Speed Display and Record File Unit can be changed. 36 BLACKVUE Wi-Fi 2CH...
  • Page 37 Function Description Language The language of BlackVue voice directions can be changed. Setting Note y With the normal recording function disabled, only event and parking mode recording videos are saved. y With the speed display unit disabled, the vehicle speed is not displayed when the recorded videos are played back.
  • Page 38 It is possible to configure the G-sensor sensitivity to start event recording during on Recording always-on recording. Apply to Parking It is possible to configure the G-sensor and motion detection sensitivity to start Mode event recording during parking mode recording. 38 BLACKVUE Wi-Fi 2CH...
  • Page 39: Advanced Sensitivity Configuration

    Move the control bar up/down to adjust the sensitivity range. If the range is wide, it is less sensitive, and if the range is narrow, it is more sensitive. It is recorded as an event. It is not recorded as an event. DR650GW-2CH 39...
  • Page 40: Wi-Fi & Other Configuration

    You can change Autorun Wi-Fi feature, SSID and your password for the Wi-Fi connection. Wi-Fi Setting The BlackVue App can be accessed with the SSID and password chosen by the user and you can also reset the password if you have forgotten it.
  • Page 41 Insert the microSD card into the product. For details on how to insert the microSD card, refer to How to Insert & Remove the microSD Card. (16 page) When the power is turned on, the user's configuration is automatically applied. Note y Insert the microSD card only when the product is turned off. DR650GW-2CH 41...
  • Page 42: Firmware Upgrade

    Unzip the file, and copy the BlackVue folder to the microSD card. Insert the microSD card in BlackVue, and turn on the power. Then, upgrade will automatically occur. Note y After firmware upgrade, all the user's configurations including the Wi-Fi setting are initiated.
  • Page 43: Product Specifications & Standards

    Rear: Opposite Angle 129°, Horizontal 108°, Vertical 57° Front Rear Full HD(1920x1080)@30Fps HD(1280x720)@30Fps Full HD(1920x1080)@15Fps HD(1280x720)@15Fps Resolution/Frame HD(1280x720)@30Fps HD(1280x720)@30Fps HD(1280x720)@15Fps HD(1280x720)@15Fps ※ Resolution/frame can be changed Video Compression Mode Wi-Fi Built-in (802.11b/g/n(2.4~2.4835GHz) Built-in Microphone Built-in Built-in Speaker ※ Voice Directions DR650GW-2CH 43...
  • Page 44 KC, FCC, CE, RoHS, Telec, WEEE BlackVue Viewer Software ※ Windows XP or later (Up to Windows 8), Mac Leopard OS X(10.5) or later Application BlackVue App (Android 2.3 or later & iOS 5.0 or later & Windows 8.0 or later) 44 BLACKVUE Wi-Fi 2CH...
  • Page 45 White Blinking Recording Event Red Blinking Fast White Blinking Parking Green Blinking White Blinking White Light Wi-Fi ON Lighting White Blinking Wi-Fi ON/OFF Change Blinking GPS ON Blue Light White Blinking Software Control Available Unavailable Unavailable Available Unavailable DR650GW-2CH 45...
  • Page 46 4 Mbps + 2 Mbps 3 Mbps + 1.5 Mbps Note y There may be some variation with actual recording time depending on the user's environment. y Depending on the image quality, the microSD card lifespan can be shorten. 46 BLACKVUE Wi-Fi 2CH...
  • Page 47 Before Requesting A/S Service y It is required for users to back up important data regularly from storage device (to other separate media). Depending on the situation, it will be necessary to delete the data from the internal storage device (component). It might be needed to delete all the data from the product for A/S. So it is required for users to back up important data by themselves before requesting A/S.
  • Page 48: Product Warranty

    Product Warranty The term of this product warranty is 1 year from the purchase date.  (Accessories such as Battery/microSD Card : 6 Months) We, PittaSoft Co., Ltd., provide the product warranty according to Consumer Dispute Settlement Regulations (drawn up by the Fair ...
  • Page 49 To check the BlackVue viewer, Please turn on the device first! 208-130049 MSIP-CMM-PTA-DR550GW-2CH MSIP-REM-PTA-RC550 YCK-DR550GW-2CH...
