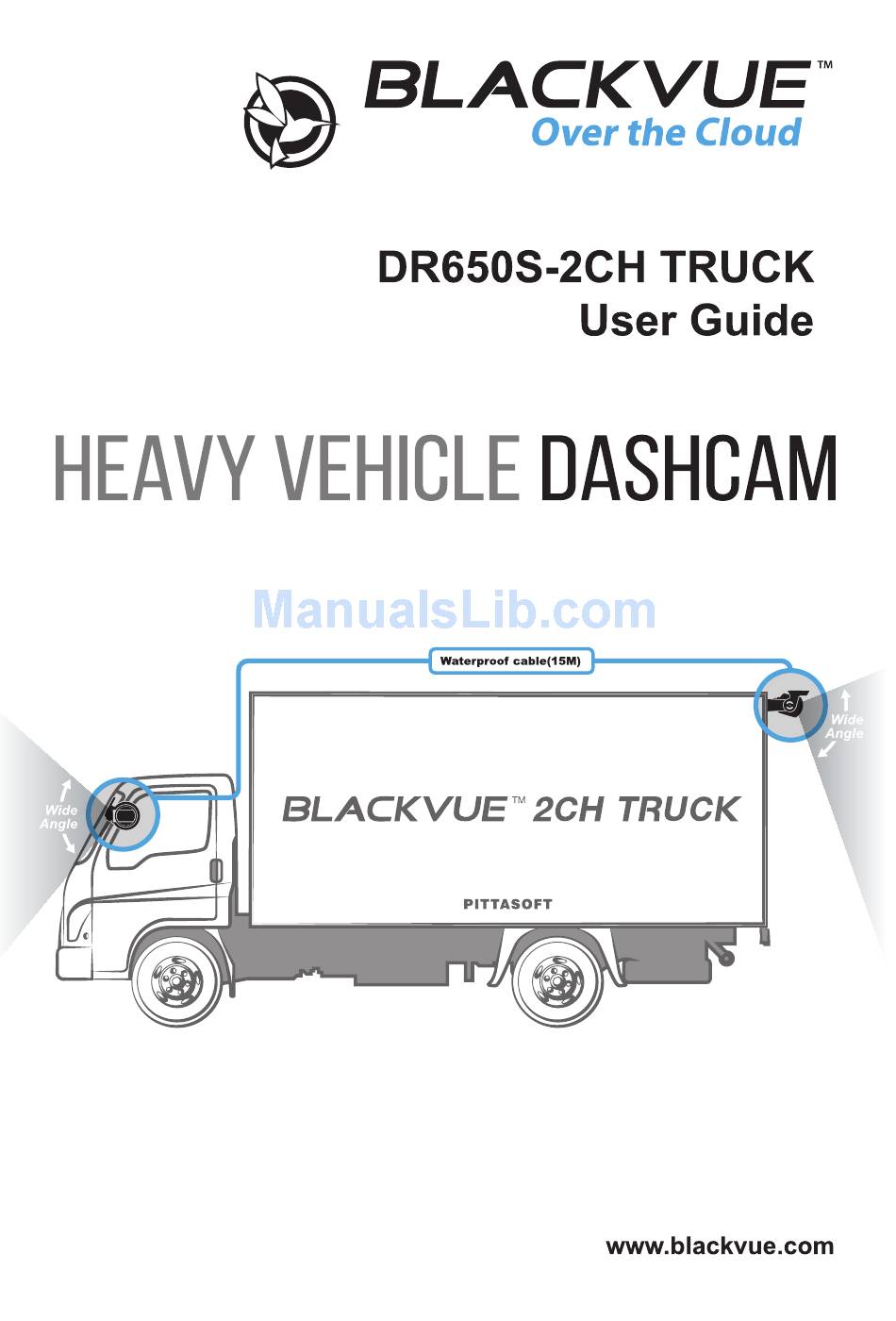

BlackVue DR650S-2CH TRUCK User Manual

Heavy vehicle dashcam
Hide thumbs Also See for DR650S-2CH TRUCK:

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DR650S-2CH TRUCK and is the answer not in the manual?

Questions and answers

Related Manuals for BlackVue DR650S-2CH TRUCK

Summary of Contents for BlackVue DR650S-2CH TRUCK

  • Page 2 BLACKVUE DR650S-2CH TRUCK For manuals, customer support and FAQs go to www.blackvue.com...

  • Page 3: Product Features

    Built-in Wi-Fi for direct connection to an Android/iOS device or connecting to a Wi-Fi hotspot Built-in microphone for audio recording Optional audio recording as well as 2-way voice communication through BlackVue Over the Cloud 129° wide-angle lens Record clear and detailed video of any accident without image distortion DR650S-2CH TRUCK...
  • Page 4 Customize dashcam settings using your iOS or Android device, watch recorded videos and Live View, and backup files BlackVue Viewer for Windows PC and Mac BlackVue Viewer lets you to play back videos on your computer and configure the dashcam settings BlackVue Over the Cloud compatible Using a mobile Wi-Fi hotspot you can track the vehicle’s location, watch...

  • Page 5: Need Help

    In the box Check the box for each of the following items before installing the BlackVue dashcam. Front camera User guide Power cord Cable clips (8 EA) Double-sided tape and screws for the microSD Card mounting brackets microSD card reader...

  • Page 6: Front Camera

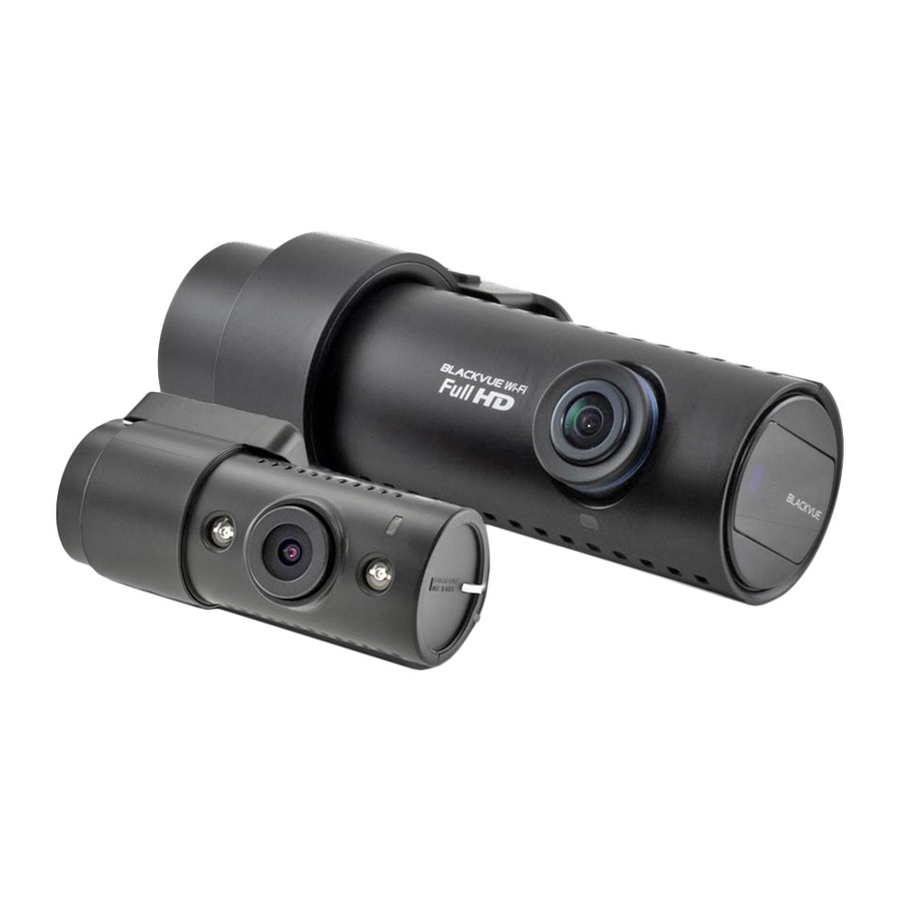

    At a glance The following diagrams explain each part of the BlackVue dashcam. Front camera 118.5 mm Lock button Camera lens Mounting bracket Front security LED : Blinks slowly in normal and parking mode. : Blinks quickly when (i) an event is being recorded (impact detected), or (ii) motion is detected in parking mode.
  • Page 7 Rear camera connection port DC in Cover (power connector) microSD card slot Wi-Fi / Format button * Self-format function: To format the microSD card press the button for 10 seconds until the dashcam beeps. DR650S-2CH TRUCK...
  • Page 8 The rear camera housing is completely dust-proof and waterproof (tested to function normally after being immersed in 1m of water for 30 minutes). The integrated hood helps shield the lens from the elements. BLACKVUE...
  • Page 9 Adjust the angle of the lens by rotating the body of the front camera. We recommend pointing the lens slightly downwards (≈10° below horizontal), so as to record video with a 6:4 road to background ratio. DR650S-2CH TRUCK...
  • Page 10 Note y If the waterproof coaxial cable is mounted externally, we recommend covering it to secure it in place and protect it against the elements. Plug the power cord into the cigarette lighter socket and the front camera. 10 BLACKVUE...
  • Page 11 Rear camera connection cable Power cord Turn on the engine. The BlackVue dashcam will power up and start recording. Video files are stored on the microSD card. When the microSD card fills up, the newest video files will start to replace the oldest video files (called loop recording) – so you will always have the most recent video files.

  • Page 12: Product Specifications

    Product specifications Model Name DR650S-2CH TRUCK Front: Black / Width 118.5 mm x Height 36 mm / 96 g Color/Size/Weight Rear: Black / Width 70.0 mm x Height 44.4 mm / 180 g Memory microSD Card (16GB / 32GB / 64GB / 128GB) Normal recording, event recording (impact detection), and parking mode recording (motion &...
  • Page 13 Application higher) The DR650S-2CH TRUCK model uses the same firmware as the DR650S-2CH model and has all of the same great features. For more information about using the DR650S-2CH TRUCK, please download the DR650S-2CH manual from www.blackvue.com > Support > Downloads.
