Summary of Contents for BlackVue DR750X-2CH

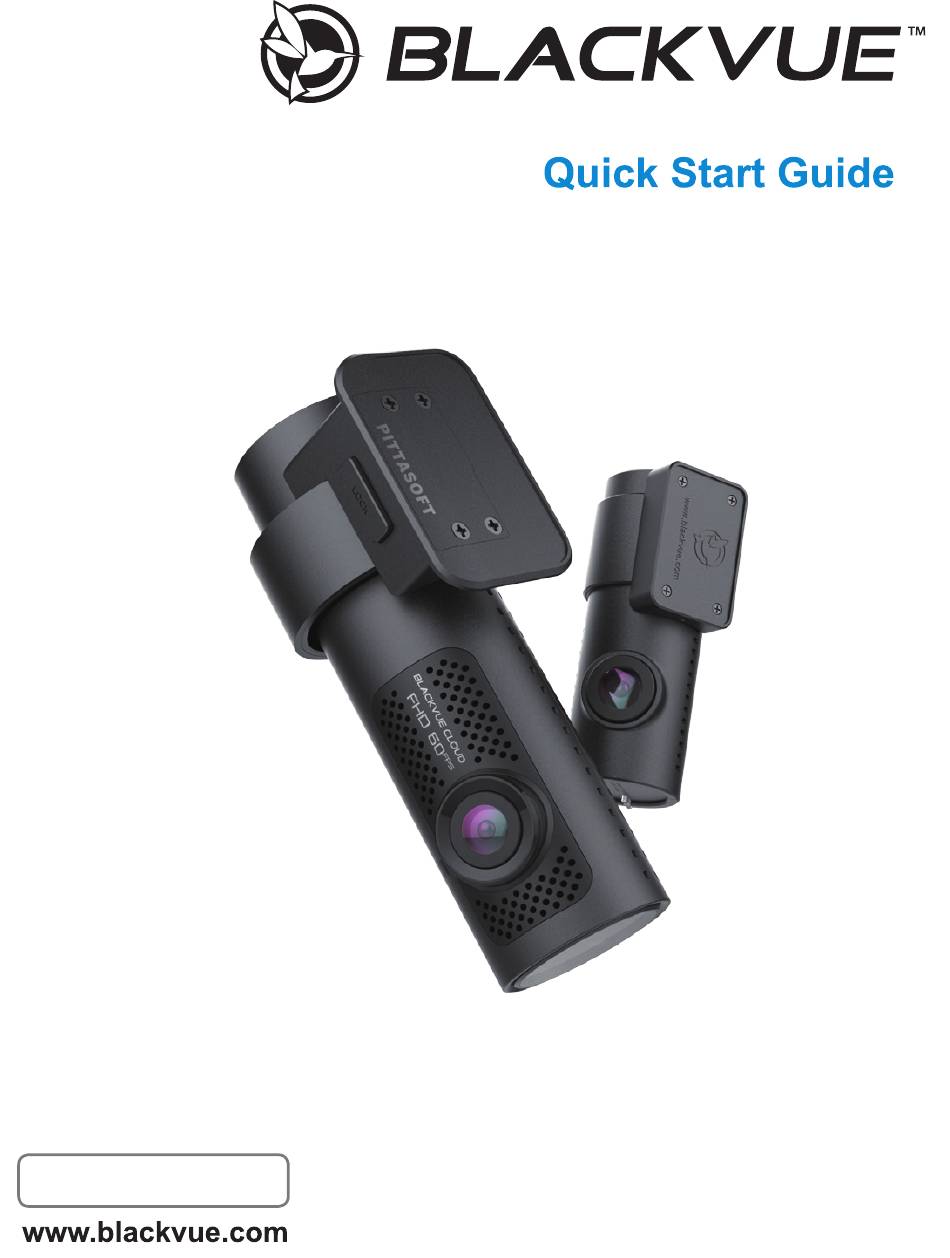

  • Page 1 DR750X-2CH ENGLISH...
  • Page 2 BLACKVUE DR750X-2CH For manuals, customer support and FAQs go to www.blackvue.com...

  • Page 3: Important Safety Information

    If the product is damaged or the power supply is cut due to an accident, video may not be recorded. y Do not remove the microSD card while the microSD card is saving or reading data. y The data can be damaged or malfunctions may occur. DR750X-2CH...

  • Page 4: Fcc Compliance Information

    This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. FCC ID: YCK-DR750X-2CH BLACKVUE...
  • Page 5 Contact local authorities to learn about disposal and recycling options available in your area. 2. The correct disposal of your BlackVue dashcam will help prevent potential negative consequences for the environment and human health.
  • Page 6 L’exploitation est autoriséee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l ’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’encompromettre le fonctionnement. BLACKVUE...

  • Page 7: Need Help

    In the box Check the box for each of the following items before installing the BlackVue dashcam. Front camera Quick start guide Cigarette lighter Hardwiring power power cable cable Double-sided tape for the Mounting Cable clips (8 EA) Brackets microSD...

  • Page 8: Front Camera

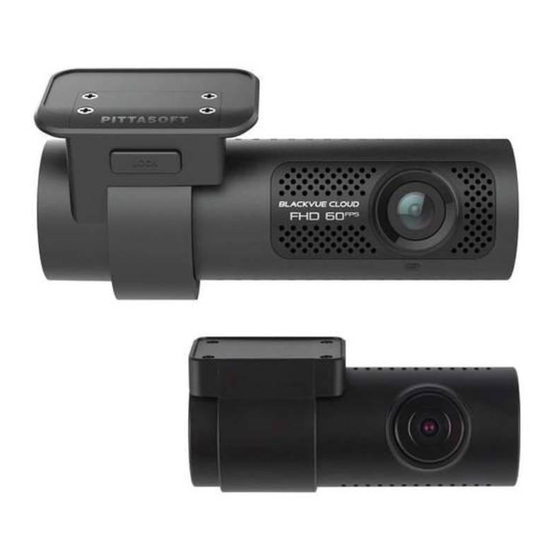

    At a glance The following diagrams explain each part of the BlackVue dashcam. Front camera 118.5 mm Lock button Camera lens Mounting bracket Front security LED : Lights on during (i) normal mode, (ii) an event is being recorded (impact detected), (iii) manual recording has started, or (iv) motion is detected in parking mode.
  • Page 9 : Lights red when (i) an event is being recorded (impact detected), or (ii) manual recording has started. : Lights green in parking mode when motion is detected. Connectivity details label: - Default Wi-Fi SSID - Default Wi-Fi password - Cloud code - QR code Serial number label DR750X-2CH...
  • Page 10 Available options: - Turn on/off audio recording (default) - Manual recording trigger - Off Rear camera connection port Micro USB port Cover DC in (power connector) microSD card slot Wi-Fi button: - Press once to turn on/off Wi-Fi. BLACKVUE...
  • Page 11 Rear camera Mounting bracket Camera lens 67.4 mm Rear security LED V out : Stays on in all (Front camera connection port) recordings modes but can be turned off from firmware settings. DR750X-2CH 10...
  • Page 12 Turn off the engine. Open the cover of the microSD card slot, gently push the card into the slot until it locks into place and close the cover. Peel off the protective film from the double-sided tape and attach the front camera to the windshield behind the rear-view mirror. 11 BLACKVUE...
  • Page 13 Connect the front camera ('Rear' port) and the rear camera ('V out') using the rear camera connection cable. Use the pry tool to lift the edges of the rubber window sealing and molding and tuck in the rear camera connection cable. Rear camera connection cable DR750X-2CH 12...
  • Page 14 A low voltage power cut-off function and a parking mode timer to protect the automotive battery from discharge is installed in the device. Settings can be changed in the BlackVue App or Viewer.
  • Page 15 Connect the GND cable to metal ground bolt. Connect the power cable to the DC in terminal of the front camera. BlackVue will power up and start recording. Video files are stored on the microSD card.
  • Page 16 Playing video files on your (Android/iOS) Search for the BlackVue app in the Google Play Store or Apple App Store and install it on your smartphone. “Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi: (i) Press the Wi-Fi button once to turn on Wi-Fi.
  • Page 17 (v) Open the BlackVue app and select WI-FI. Select the video file you want to play from the video list. Note y Direct Wi-Fi lets you connect your smartphone to your dashcam via Wi-Fi within a range of 10m. y For quick playback and download of the recordings, you can select the “Quick play file”...
  • Page 18 Remove the microSD card from the dashcam. Open side cover To remove Insert the card into the microSD card reader and connect it to a computer. Download BlackVue Viewer program from www.blackvue.com > Support > Downloads and install it on your computer. 17 BLACKVUE...
  • Page 19 Run BlackVue Viewer. To play, select a video and click on the play button or double click the selected video. Windows/macOS Viewer Note y All images shown are for illustration purpose only. Actual program may differ from images shown. DR750X-2CH 18...
  • Page 20 The dashcam's time zone is initially set to (GMT-11). To display the correct time please select your time zone. Using your smartphone (Android/iOS) “Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi (for details see STEP 2 ‘Playing video files on your smartphone’). Open the BlackVue app and select WI-FI.
  • Page 21 Settings that can be changed include Wi-Fi SSID & password, image quality, sensitivity settings, voice recording on/off, speed unit (km/h, MPH, off), LEDs on/ off, voice guidance volume, Cloud settings etc. Once settings are configured, tap and tap Save. DR750X-2CH 20...
  • Page 22 (km/h, MPH, off ), LEDs on/off, voice guidance volume, Cloud settings etc. For more information about changing the settings in BlackVue Viewer, please download the manual from www.blackvue.com > Support > Downloads. 21 BLACKVUE...

  • Page 23: Connect To Blackvue Cloud (Optional)

    STEP 4 Connect to BLACKVUE CLOUD (optional) If you don’t have a mobile Wi-Fi hotspot, Blackvue connectivity module or if you don’t want to use the BLACKVUE CLOUD service, you can skip this step. If you have a mobile Wi-Fi hotspot (also known as a portable Wi-Fi router), BlackVue...
  • Page 24 Register. Connect your BlackVue dashcam to a Wi-Fi hotspot for Cloud connectivity (i) Make sure your BlackVue dashcam and mobile Wi-Fi hotspot are on. (ii) “Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi (for details see STEP 2 ‘Playing video files on your smartphone’) >...
  • Page 25 (v) Choose your Wi-Fi hotspot from the list. Enter the password and tap OK. Note y Up to 3 Wi-Fi hotspot SSIDs can be saved (e.g. home, portable hotspot and work). y The BlackVue DR750X dashcam is not compatible with 5GHz wireless networks. DR750X-2CH 24...
  • Page 26 Connect your BlackVue dashcam to Cloud connectivity (Using CM100LTE) Make sure your BlackVue dashcam and connectivity module is connected. Then, follow the below steps for SIM registration. (i) Locate the SIM card slot. Unscrew the bolt from SIM slot cover. Then, unmount the SIM slot by using a SIM eject tool.
  • Page 27 For full details, refer to the "SIM activation guide" that is included in the CM100LTE package. y To use the BlackVue Cloud Service, SIM card must be properly activated for Internet access via LTE network. y When the dashcam is connected to internet, you can use BlackVue Cloud features such as remote Live View and Video playback, Real-time location, push notification, Auto-upload, remote Firmware update etc.

  • Page 28: Tips For Optimal Performance

    Download BlackVue Windows Viewer from www.blackvue.com > Support > Downloads and install it on your computer. Insert the microSD card into the microSD card reader and connect the reader to your computer. Launch the copy of BlackVue Viewer that is installed on your computer. Click the Format button, select the card drive and click OK.

  • Page 29: Product Specifications

    Full HD @60fps - Full HD @30fps Frame Rate * Frame rate may vary during Wi-Fi streaming. Image Quality Highest (Extreme), Highest, High, Normal Video Compression Mode Wi-Fi Built-in (802.11 b.g.n) Built-in (Dual Band : GPS, GLONASS) Bluetooth Built-in (V2.1+EDR/4.2) External Microphone Built-in DR750X-2CH 28...
  • Page 30 -20 °C − 85 °C (-4 °F − 185 °F) Temperature Storage -20 °C − 90 °C (-4 °F − 194 °F ) Temperature High Temperature Approx. 85 °C (185 °F) Cut-Off Front: FCC, CE, RoHS, Telec, WEEE, IC Certifications Rear: FCC, CE, RoHS, WEEE 29 BLACKVUE...
  • Page 31 BlackVue Viewer Software * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher BlackVue Application (Android 5.0 or higher, iOS 9.0 or Application higher) Others Adaptive Format Free File Management System * STARVIS is a trademark of Sony Corporation.
  • Page 32 Extended Temperature Range : -40°C ~ +85°C Range Storage Temperature Range : -40°C ~ +90°C Color/Size/Weight Black / Length 90 mm x Width 60 mm x Height 4.5 mm / 74g Compatible Devices DR750X-1CH, DR750X-2CH, DR900X-1CH, DR900X-2CH Certifications PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS...

  • Page 33: Product Warranty

    Product Warranty The term of this product warranty is 1 year from the purchase date. (Accessories such as an External Battery/ microSD Card: 6 Months) We, PittaSoft Co., Ltd., provide the product warranty according to the Consumer Dispute Settlement Regulations (drawn up by the Fair Trade Commission).
  • Page 34 Notes...
  • Page 35 Notes...
  • Page 36 FCC ID: YCK-DR750X-2CH / HVIN : DR750X-2CH DR750X-2CH Headquarter Pittasoft 4F, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea, 13488 Service Center instagram.com/BlackVueofficial © 2020...
