Name
Manufacturer
Vehicle Video Recorder
Pittasoft Co., Ltd. / Korea
Address
BYC HIGH CITY A- 7th floor, 371-17, Gasan-Dong, Geumcheon-Gu,
Seoul, 153-803, Korea
Sales Headquater
l
Tel: +82-2-6947-4670(#3)
Fax: +82-2-6947-4699
e-mail sales@pittasoft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR500GW-HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BlackVue DR500GW-HD

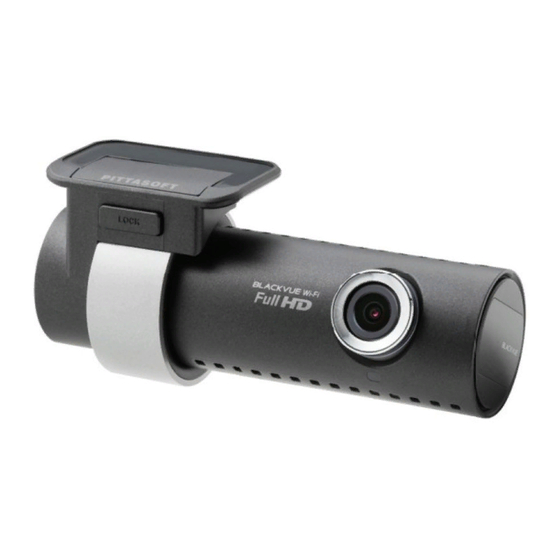

Summary of Contents for BlackVue DR500GW-HD

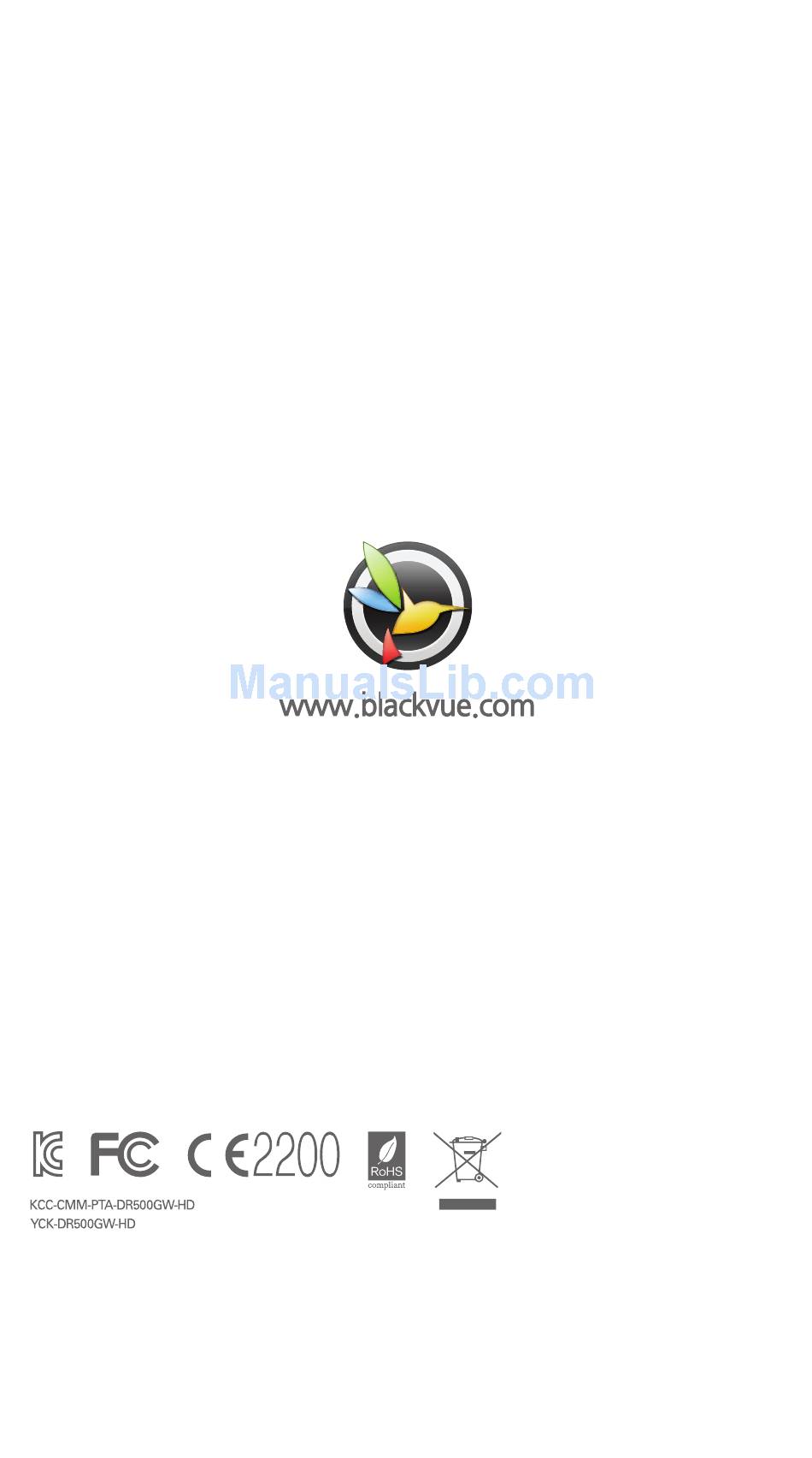

  • Page 1 Name Manufacturer Vehicle Video Recorder Pittasoft Co., Ltd. / Korea Address BYC HIGH CITY A- 7th floor, 371-17, Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Sales Headquater Tel: +82-2-6947-4670(#3) Fax: +82-2-6947-4699 e-mail sales@pittasoft.com...
  • Page 2 Vehicle Video Recorder Manual...

  • Page 4: Table Of Contents

    Checks for the microSD Cards Product Features Package Components Names of Each Part How to Attach & Detach the Mounting Bracket How to Install the BlackVue Checking Installation Position How to Insert & Remove the microSD Card Installation Video Recording...

  • Page 5: Introduction To The Manual

    Introduction to the Manual Thank you for purchasing a BlackVue by Pittasoft Co., Ltd. This instruction manual contains information on how to operate your BlackVue. Before using the product, make sure to read through this manual so as to use the product in the correct way.

  • Page 6: Getting Started

    Otherwise it can cause explosion, fire, or malfunction. y Do not operate the product with wet hands. It can cause electric shock. y Do not install it in an environment with high humidity, or combustible gases or liquids. It can cause explosion & fire. DR500GW-HD...
  • Page 7 Death or serious injury can be caused for users if the WARNING following directions are not followed: y Do not leave the product where infants, children, or pets can reach it. They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit.
  • Page 8 Foreign material attached to the lens can affect the recording quality. y Do not remove the microSD card while it is saving or reading data. The data can be damaged or malfunction caused. y Do not use the BlackVue, while cover is open. DR500GW-HD...
  • Page 9 If there is an error with the GPS time when checking recorded video with a viewer program or the BlackVue application, turn the GPS off and on after a signal is received. Make sure to observe the following for an uninterrupted GPS signal.

  • Page 10: Product Features

    Clearer vision with high-resolution megapixel lens during both day/night-time driving VOD & real-time live view function With built-in Wi-Fi and the BlackVue app, video can be played regardless of place and time G-sensor & highly-sensitive GPS Detailed driving record such as vehicle speed and recording loca- tion information can be checked with BlackVue software High-quality wide-angle lens (156°)
  • Page 11 High-compression recording mode to extend SD-card life Efficient memory usage with high-compression storage method Support of viewer programs for Windows PC and Mac BlackVue software with convenient configurations such as power video search, resolution change, voice direction, and parking mode...
  • Page 12 Cable Clips (5 EA) Double-sided Tape for the Mounting microSD Card Bracket (2 EA) (Including BlackVue Software) microSD Card Reader Note y Pictures of the components may differ from the actual ones. y To enhance the performance of the product, components may be changed without prior notice.
  • Page 13 Names of Each Part Lock Button Camera Lens Mounting Bracket Security LED Recording LED GPS LED Speaker Wi-Fi LED Power Socket microSD Card Slot Cover Reset Button Voice on/off Button Wi-Fi Button (Format Button: Press for 10 seconds for Formatting)
  • Page 14 Press the Wi-Fi button on the side for 10 seconds to format the mi- croSD card without using a PC. y If you need to reset BlackVue, press the Reset button. It is recommended for emergency use only. How to Attach & Detach the Mounting Bracket Pull the unit out of the mounting bracket with the LOCK button pressed.

  • Page 15: How To Install The Blackvue

    How to Install the BlackVue Checking Installation Position It is recommended to install it at the back of rear view mirror. Clean any foreign matter and moisture from the place where the product will be installed. Note y Do not install the product where it can interfere with the driver's vi- sion.
  • Page 16 It is recommended to use Power Magic (the Battery Discharge Pre- vention Device) to record video while the car is parked. y To use the BlackVue at the same time as other equipment, purchase and use a two-way adaptor.
  • Page 17 Use the cable clip to organize the power cord so that it doesn't interfere with the driver's vision. Adjust the lens angle of the camera. Note y After adjusting the angle of the camera lens, remember the angle of the mounting bracket so that it can be installed at the same angle next time.

  • Page 18: Video Recording

    Note y If Power Magic (the Battery Discharge Prevention Device) is con- nected, the BlackVue is not turned off. y The normal recording function can be disabled in the BlackVue soft- ware configuration. (33 Page) Parking Mode Recording If the car doesn't move for 10 min or longer when in normal mode, it is automatically converted to parking mode recording.
  • Page 19 It records video for 5 seconds before and 55 seconds after the impact. Note y Sensitivity to impact can be adjusted in the BlackVue software con- figuration. (34 Page) y Event recording time can be adjusted in the BlackVue software configuration.

  • Page 20: Simple Video Playback

    HD video playback, refer to the BlackVue website (www.blackvue.com). y With the BlackVue application, it's easy to play back videos and the Live View function can be used. For details of the BlackVue applica- tion, refer to How to Playback using the BlackVue Application.
  • Page 21 Watching with a GPS navigation Recorded videos can be played back using a GPS navigation. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the GPS navigation. Open an application to play back recorded videos and select the movie you want to play back from the removable drive.
  • Page 22 When trying to play back a recorded video with a movie playback program on a PC, install the H.264 and AAC audio codecs. y For how to play back using the BlackVue software, refer to Video Playback. (27 Page)
  • Page 23 BlackVue application can be downloaded from the Google Play store and Apple App Store. Note y The BlackVue application can be used with Android 2.3 or later and iOS 5.0 or later. y Depending on your smartphone, some of the BlackVue application functions might not be supported.
  • Page 24 Note y If you save the connection information when connecting using Wi- Fi, you can tap the Wi-Fi button in the BlackVue application to con- nect it without turning on the Wi-Fi function of the smartphone. y The initial password is blackvue, but the user can change it.

  • Page 25: How To Use The Blackvue Software

    How to use the BlackVue Software Installation & Execution How to Install Dedicated BlackVue software can be installed in a PC. Insert the provided microSD card into a microSD card reader. Connect the microSD card reader to the PC. Execute the 'BlackVueSetup(HD).exe' file in the 'BlackVue\Software'...
  • Page 26 Install the program according the installation program instruction. When the installation is finished, the BlackVue software icon is displayed on the desktop. Double-click the icon to execute the program. Note y Only the English version of BlackVue software is available for Mac, and the functions &...
  • Page 27 Screen Description Name Description Playback Screen Videos can be played back using this screen. The for Recorded mouse can be used to zoom in/out. Videos G-Sensor G-sensor information can be checked, at the time Information the video was recorded. GPS information can be checked, at the time the GPS Information video was recorded.
  • Page 28 Double-click the screen again or press ESC to return to default view. y While playing back a recorded video, use the mouse wheel to zoom in/out. y While playing back a recorded video, right-click the screen to view 100 % zoom-in screen. DR500GW-HD 27...
  • Page 29 Left-click the screen while a recorded video is being played back to see a partial zoom-in window and to use it to identify the number plate of a car while moving it. Note y BlackVue software for Mac will be upgraded to support the magnifier function. Timeline Video can be explored with the date, hr, min, and sec of when a video was re- corded.
  • Page 30 To delete a file, click Delete. To save it with different name, click Export and select the option you want. Press the OK button and select the file name you want, together with the path. Press the Save button to finish. DR500GW-HD 29...
  • Page 31 How to Check the Map Where a video was recorded can be checked with the map. Select a file from the recorded video list and play it back. Press the Map tab. With the +/- button or mouse wheel, the map can be zoomed in/out. Speed Unit Change Map Type Map Zoom-...
  • Page 32 Map Type Select Record Starting Point Driving Route Currently-Played File Car Location Note y To use the map service, an Internet connection is required. y Only for the recorded file with GPS information, the data can be checked. DR500GW-HD 31...
  • Page 33 How to Save as an Image While playing back a recorded video, some parts can be saved as images if you want. Select a file from the recorded video list and play it back. From the image to be saved, press the button.
  • Page 34 (41 Page) Normal Record, Voice Record, Date and Time Display and Auto Switching to Parking Mode Recording function can be turned on/off. Speed Display and recording mode, Record File Setting Unit and Recording Storage Setting can be changed. DR500GW-HD 33...
  • Page 35 Note y With the normal recording function disabled, only event and parking mode recording videos are saved. y With the speed display unit disabled, the vehicle speed is not dis- played when the recorded videos are played back. y On microSD cards, older files are deleted first to mark space for newly-recorded videos.
  • Page 36 Sensitivity tab. Click the Click the Advanced Setting button of the configuration you want. Play back a recorded video. Saved G-sensor information is displayed at the bottom of the recorded video which is played back. DR500GW-HD 35...
  • Page 37 Move the control bar up/down to adjust the sensitivity range. If the range is wide, it is less sensitive, and if the range is narrow, it is more sen- sitive. It is recorded as an event. It is not recorded as an event. Note y If an event recording is started due to the sensitivity configured while a recorded video is being played back, the edge of the play-...
  • Page 38 With Login Setting, Wi-Fi access privilege can be configured. SSID and password may be changed by Wi-Fi Setting the user. The BlackVue application can be accessed with the SSID and password chosen by the user. For video recording status, normal recording mode, and parking mode recording, the LED indicators can Etc.

  • Page 39: Firmware Upgrade

    Note y After firmware upgrade, the user's configuration is initiated. y When the firmware upgrade is finished, the BlackVue software is automatically installed. If you don't want it to be installed, click the Cancel button.
  • Page 40 Insert the microSD card only when the product is turned off. When the power is turned on, it is automatically upgraded. Caution y Make sure that the power is never turned off while firmware up- grade is in progress. DR500GW-HD 39...

  • Page 41: Product Specifications

    ❈ Varies depending on Wi-Fi usage Operation Temperature -20°C ~ 70°C Certificates KCC, FCC, CE, and RoHS BlackVue Viewer Program (Windows XP or later & Mac Leop- Software ard OS (10.5) or later) Application BlackVue (Android 2.3 or later & iOS 5.0 or later)

  • Page 42: Led Indicators

    7 HR 02 MIN 8 HR 49 MIN 8 HR 41 MIN 11 HR 31 MIN 17 HR 12 MIN 32GB 13 HR 55 MIN 17 HR 11 MIN 17 HR 10 MIN 23 HR 18 MIN 35 HR 48 MIN Note y There may be some variation with actual recording time. DR500GW-HD 41...
  • Page 43 Before Requesting A/S Service It is required for users to back up important data regularly from the storage device (to other separate media). Depending on the situation, it will be necessary to delete the data from the internal storage device (component). It might be necessary to delete all the data from the product for A/S Service.
  • Page 44 Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules. FCC ID: YCK-DR500GW-HD...

  • Page 45: Product Warranty

    Product Warranty The term of this product warranty is 1 year from the purchase date. (Accessories  such as Battery/microSD Card : 6 Months) We, Pittasoft Co., Ltd., provide the product warranty according to Consumer Dispute  Settlement Regulations (drawn up by the Fair Trade Commission). Pittasoft or designated partners will provide the service upon request.
