PRINTING WITH MAKERBOT DESKTOP
HOW TO CHANGE FILAMENT
You can change filament at any time when the MakerBot Replicator Mini is not heating up
or printing .
• • When the MakerBot Replicator Mini is in an idle state and the Action Button is white,
press and hold the Action Button to initiate a filament change . Alternatively, you can
click the status bar in MakerBot Desktop, and then click Change Filament in the
print monitor panel .
• • If the MakerBot Replicator Mini senses loaded filament, the motor will turn
backward to unload it . Wait while the Smart Extruder unloads your filament . When
the filament stops backing out of the Smart Extruder, squeeze the tabs on the side
of the Smart Extruder and gently pull the filament free . If the MakerBot Replicator
Mini senses no loaded filament, the motor will turn forward to load new filament . Push
the filament until you feel the Smart Extruder pulling it in .
•
• Before removing the current filament spool, unclip the filament guide tube from the
spool pocket .
•
• Clip the filament guide tube back into place after inserting the new filament spool .
•
• During a filament change, pressing the Action Button will cancel the filament change .
•
• During a filament change, pressing and holding the Action Button will change the
motor's direction .
HOW TO CHANGE THE SMART EXTRUDER
If you need to remove the Smart Extruder from your MakerBot Replicator Mini, first unload
any filament .
Wait for the Smart Extruder to cool, then pull it away from the extruder carriage . MakerBot Desktop
will detect that the Smart Extruder is no longer attached and will open a dialog box guiding you
through the process of reattaching the extruder or attaching a new one . Click Attach Extruder . When
MakerBot Desktop directs you to, press your extruder against the back of the extruder carriage, with
the connector pins facing the extruder carriage . Magnets will lock the Smart Extruder into place .
Warning: Always use caution when handling the Smart Extruder . Never remove the
Smart Extruder during or immediately after printing, or when the Action Button is red .
Wait a few minutes before handling the Smart Extruder .
20 REFERENCE
PRINTING WITH MAKERBOT DESKTOP
HOW TO TAKE A PHOTO
You can take a photo of your print at any time using the built-in camera in the MakerBot
Replicator Mini . Click the print monitor panel in MakerBot Desktop, mouse over the current
displayed photo, and click Take a Picture . MakerBot Desktop will take a picture and let you
save it to your local computer . You must be connected to a Wi-Fi network to use the camera .
HOW TO FOCUS THE CAMERA
When you connect your new MakerBot Replicator Mini to MakerBot Desktop for the first time, the
camera image may be blurry . You will need to focus it manually to get the best image possible .
To focus the camera:
1 . Connect the MakerBot Replicator Mini
to MakerBot Desktop via a Wi-Fi network
and open the print monitor panel .

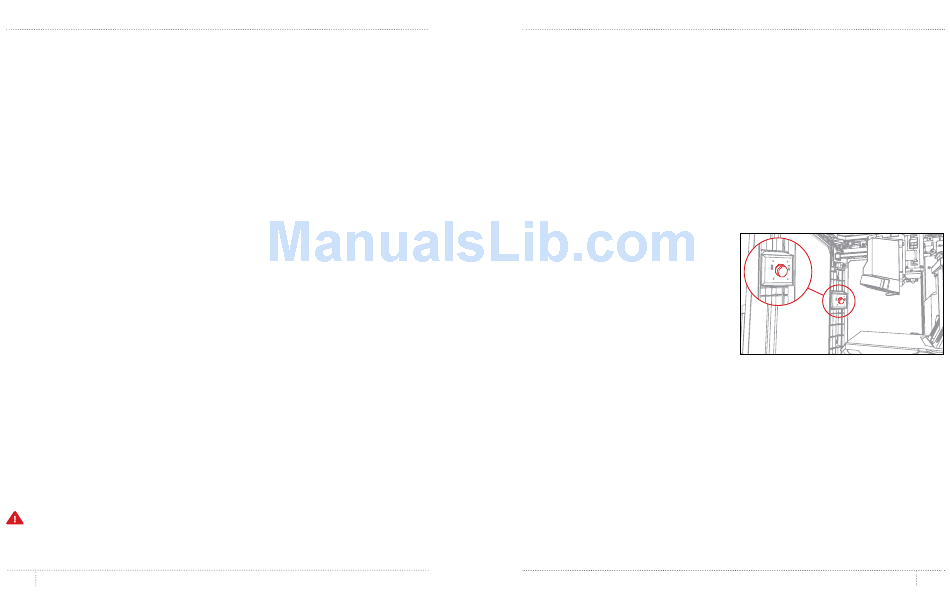

2 . Locate the camera . It is mounted inside the
left front corner of the MakerBot Replicator Mini .
3 . Grasp the plastic ring around the lens
and twist it slightly . Avoid touching the
camera lens itself .
4 . Check the camera feed and wait for the image to refresh . If the image is clearer than it
was before, continue twisting the lens in the same direction . If the image is less clear, start
twisting the lens in the opposite direction .
5 . Twist in small increments and check the camera feed frequently . When the image is clear
and twisting in either direction makes it more blurry, stop making adjustments . You have
successfully focused the onboard camera .
