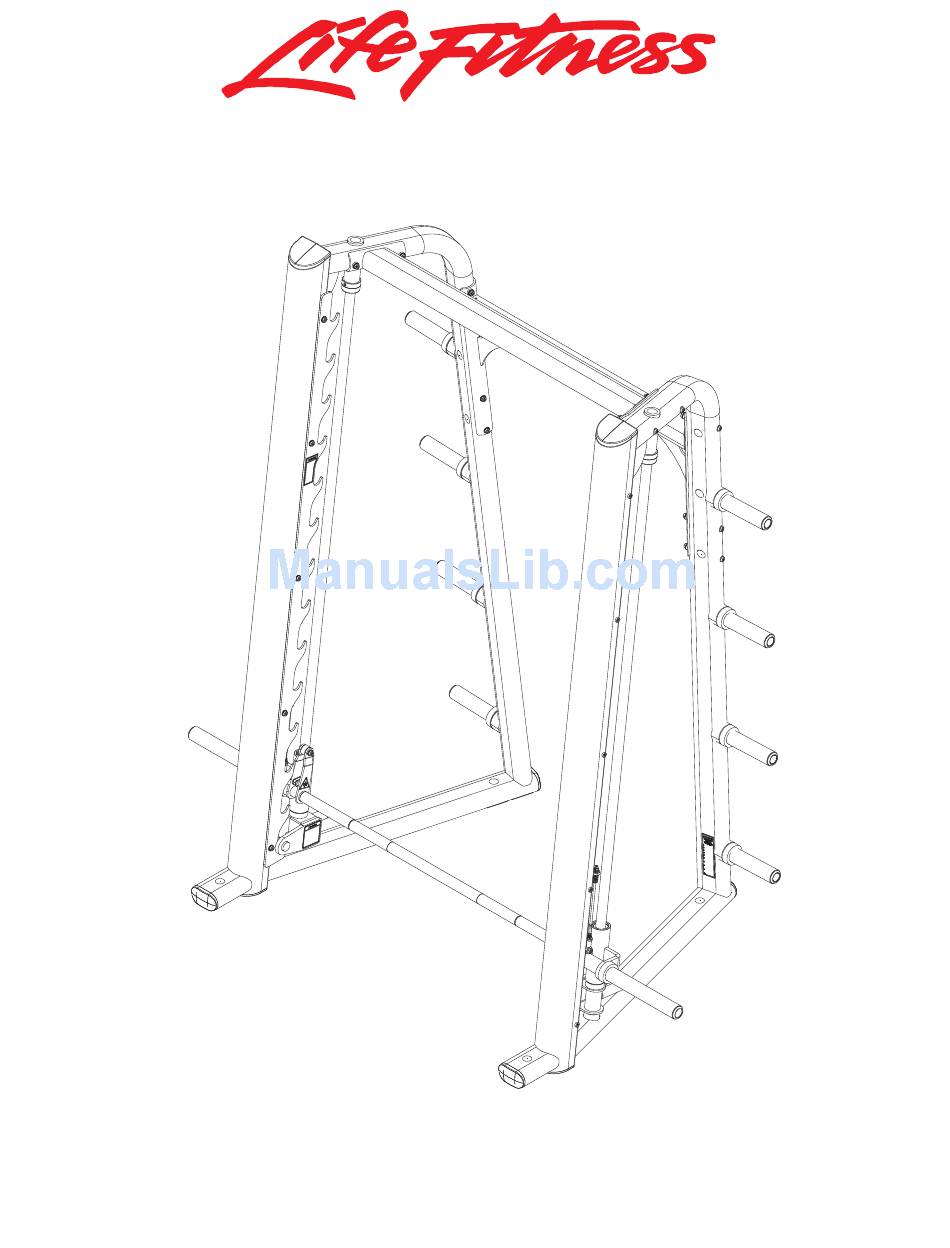

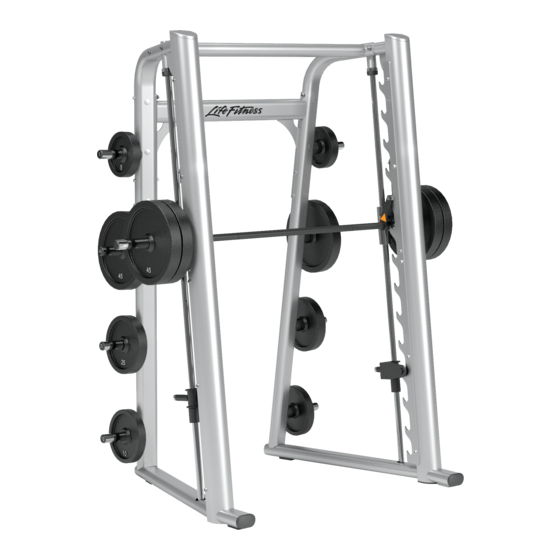

- Page 1 SIGNATURE SMITH MACHINE Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Components Assembly
SSM SIGNATURE SMITH MACHINE ______________________________________ CONTENTS COMPONENTS ASSEMBLY COMPONENTS LEGEND HARDWARE BAG IMAGE ______________________________________ SSM SPEC’S MACHINE WEIGHT: SIZE: LIVE AREA: MAX TRAINING WEIGHT: MAX PLATE CAPACITY: 581 Lbs. (263.5 Kg.) 49” D (124.5cm) x 86.6” W (220cm) x 92.8” H (235.7cm) 10’... - Page 3 SSM SIGNATURE SMITH MACHINE ______________________________________ COMPONANT ASSEMBLY LEGEND ON PAGE 4 Page 3...
-
Page 4: Componant Assembly Legend
INCLUDE FRAME COLOR TO THE ORDER NOTES FOR COMPONENTS ENDING WITH AN ASTERISK (*) ITEM NO. QTY. PART NO. DESCRIPTION 8294200* WLDMT, SSM, FRAME LEFT 8294300* WLDMT, SSM, FRAME RIGHT 8294700* WLDMT, SSM, BRACE FRONT 8294900* WLDMT, SSM, BRACE BACK 8295695 WLDMT, SSM, BAR STOP... - Page 5 SSM SIGNATURE SMITH MACHINE ______________________________________ HARDWARE BAG If hardware bag is missing at install, order part number SSM-HDWR. SSM-HDWR Contains: ITEM NO. 3202602 3236601 7348101 3236901 3236801 7335401 3236204 3236205 3236220 7634701 7489402 QTY. DESCRIPTION RET RING, 2-1/4 DIA X 1/16...
- Page 6 SSM SIGNATURE SMITH MACHINE ______________________________________ IMAGE BENCH NOT INCLUDED Page 6...
