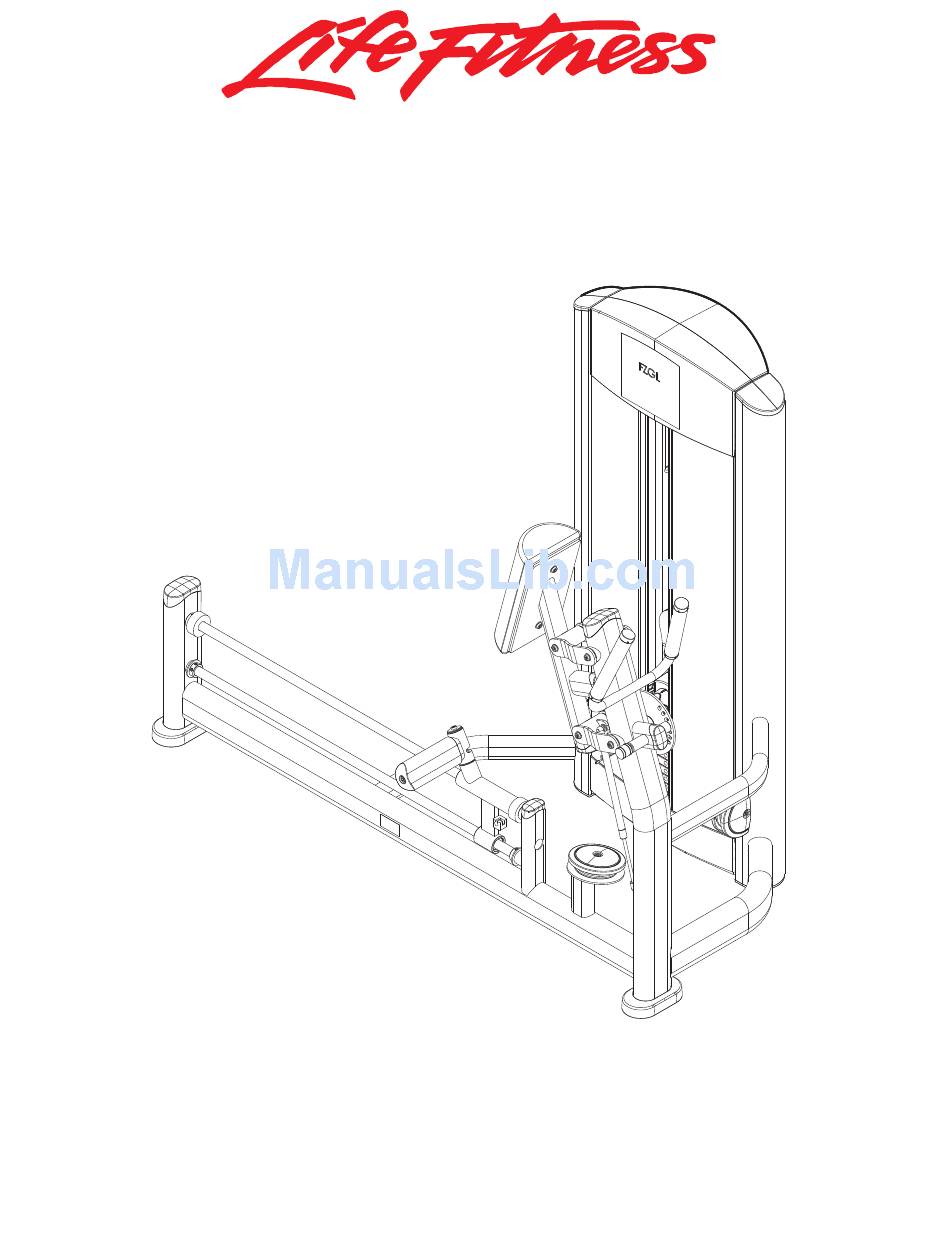

- Page 1 SIGNATURE SERIES FZGL GLUTE Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
FZGL GLUTE CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND MID-9 TOWER ASSEMBLY PLASTIC TOWER ASSEMBLY MID-9 WEIGHT STACK ASSEMBLY 5 LB. INCREMENT WEIGHT ASSEMBLY 10 LB. INCREMENT WEIGHT ASSEMBLY 15 LB. INCREMENT WEIGHT ASSEMBLY HEAD PLATE ASSEMBLY HEAD PLATE ASSEMBLY LEGEND IMAGE Page 2... -
Page 3: Component Assembly
FZGL GLUTE COMPONENT ASSEMBLY ________________________________________ Page 3 SEE PAGE 5 FOR LEGEND... -
Page 4: Component Assembly Ii
FZGL GLUTE COMPONENT ASSEMBLY II ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Component Assembly Legend
FZGL GLUTE COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7617801 WLDMT, FZGL FRAME 7619401 WLDMT, FZGL CHEST SUPPORT 7619901 WLDMT, FZGL CART 7620401 WLDMT, FZGL FOOT BAR 7620701 BRKT, FZGL PIVOT LINK 7620801 BRKT, FZGL PIVOT ADJ LINK 7619801 GUIDE ROD, 1"... -
Page 6: Mid-9 Tower Assembly
FZGL GLUTE MID-9 TOWER ASSEMBLY - 7420301 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7420001 ASSY, WEIGHT STACK MID-9 7326301 CAP, D-TUBE-BTM 7419801 ASSY, TOWER PLASTICS-MID Page 6... -
Page 7: Plastic Tower Assembly
FZGL GLUTE PLASTIC TOWER ASSEMBLY - 7419801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7318601 COVER, TOWER- TOP FRONT 7318701 COVER, TOWER- TOP REAR 7318801 COVER, TOWER- BOTTOM FRONT 7318901 COVER, TOWER- BOTTOM REAR 3236501 M4 X 0.7 PHL PAN MS ST ZN 3239101 SCREW, M5X10 PHL PAN TT ST 7765701 SHROUD, TOWER- REAR SHORT 7765601 SHROUD, TOWER- FRT SHORT RH... -
Page 8: Mid-9 Weight Stack Assembly
FZGL GLUTE MID-9 WEIGHT STACK ASSEMBLY - 7420001 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7350601 ASSY, HEAD PLATE (9) 7328401 WEIGHT PLATE, 20 LB 7327601 ASSY, INCREMENT WT-5LB 7327701 ASSY, INCREMENT WT-10LB 7327801 ASSY, INCREMENT WT-15LB 7351001 SPACER, INC WT STACK... -
Page 9: Lb. Increment Weight Assembly
FZGL GLUTE 5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 9... -
Page 10: Lb. Increment Weight Assembly
FZGL GLUTE 10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 10... -
Page 11: Lb. Increment Weight Assembly
FZGL GLUTE 15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 11... -
Page 12: Head Plate Assembly
FZGL GLUTE HEAD PLATE ASSEMBLY - 7350601 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK SEE PAGE 13 FOR LEGEND Page 12... -
Page 13: Head Plate Assembly Legend
FZGL GLUTE HEAD PLATE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7326701 HEAD PLATE 7347801 STEM, 9 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 8024501 SPRING, 1/2 OD X 1-1/2 7326101 KNOB, INC WT SELECTOR 3110008 ROLL PIN, 1/8 X 1-1/4 7326401 HOUSING, SELECTOR - FRONT 7326501 HOUSING, SELECTOR - REAR... -
Page 14: Image
FZGL GLUTE IMAGE ________________________________________ Page 14...
