Summary of Contents for Life Fitness Signature Series FZBC

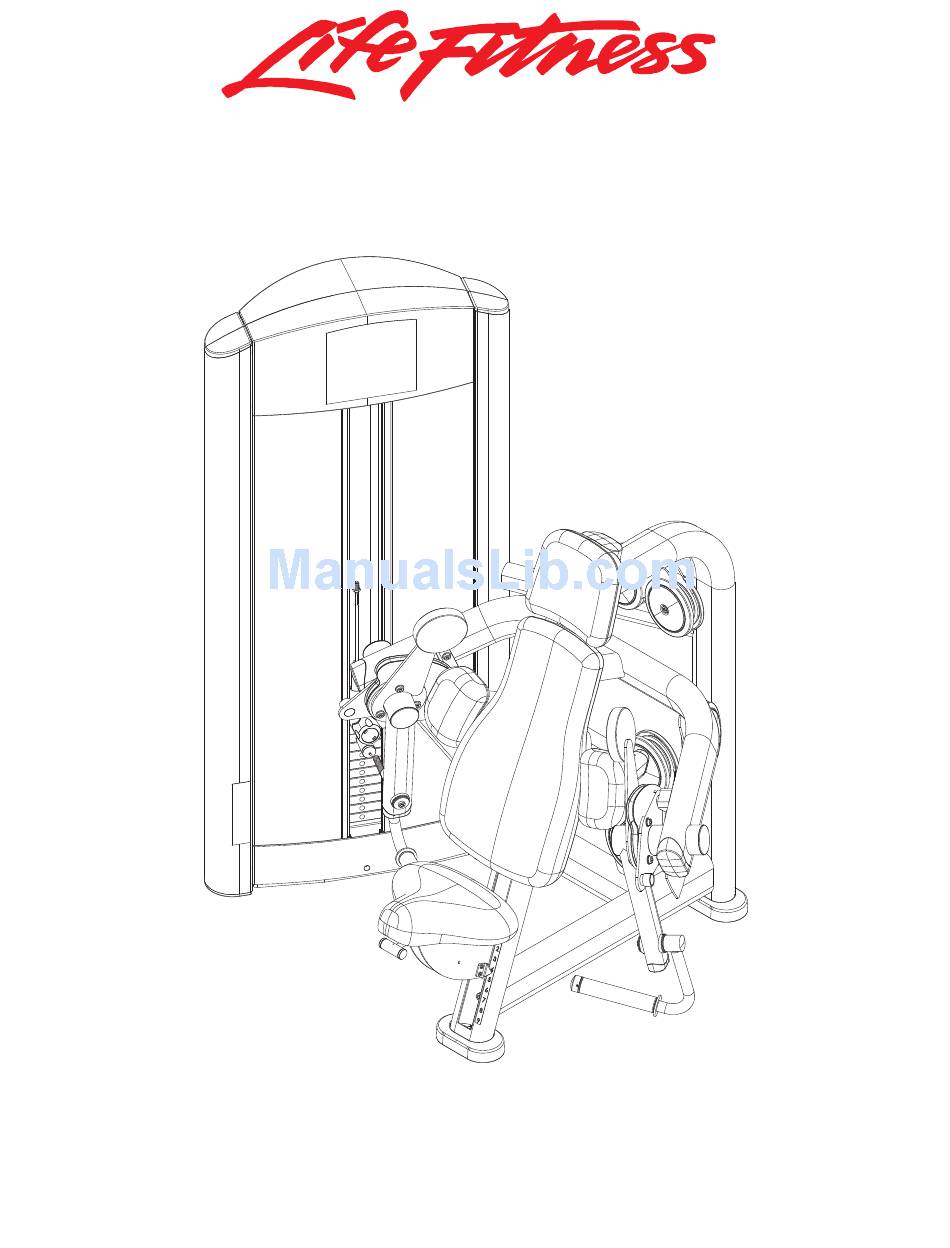

- Page 1 SIGNATURE SERIES FZBC BICEPS CURL Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
FZBC BICEPS CURL CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND FZ SEAT CARRIAGE ASSEMBLY FZ SEAT CARRIAGE ASSEMBLY LEGEND FZ ADJUSTER HANDLE ASSEMBLY MID-9 TOWER ASSEMBLY PLASTIC TOWER ASSEMBLY MID-9 WEIGHT STACK ASSEMBLY 5 LB. INCREMENT WEIGHT ASSEMBLY 10 LB. -
Page 3: Component Assembly
FZBC BICEPS CURL COMPONENT ASSEMBLY ________________________________________ Page 3 SEE PAGE 5 FOR LEGEND... -
Page 4: Component Assembly Ii
FZBC BICEPS CURL COMPONENT ASSEMBLY II ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Fzbc Biceps Curl
FZBC BICEPS CURL COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7400301 WLDMT, FZBC FRAME 7398101 CAM, FZBC 7361301 WLDMT, FZBC PIVOT ARM 7590501 WLDMT, FZBC PIVOT STOP - LH 7330001 SPACER, INTERNAL X .403 7399601 WLDMT, FZ FLOATING PULLEY 3237801 PULLEY, 4.5"... -
Page 6: Fz Seat Carriage Assembly
FZBC BICEPS CURL FZ SEAT CARRIAGE ASSEMBLY - 7911101 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Fz Seat Carriage Assembly Legend
FZBC BICEPS CURL FZ SEAT CARRIAGE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7911295 WLDMT, SEAT CARRIAGE SHDW GRAY 7889701 ROLLER, SEAT CARRIAGE 7911901 SPACER, .625 DIA X 16 GA. 7912001 SPRING, SEAT CARRIAGE 3232408 RING, BRE .443, 5100-46, ST,PP,B 3235700 SPRING, GAS 80N 7414301 STUD, M10 BALL END M10 X 1.5 7339401 BRACKET, GAS SPRING... -
Page 8: Fz Adjuster Handle Assembly
FZBC BICEPS CURL FZ ADJUSTER HANDLE ASSEMBLY - 7778001 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7777595 WLDMT, FZ SEAT ADJ HANDLE SHADOW GRAY 7331801 LINK, ADJUSTER 7331601 PIN, INDEX 7407501 PIN, LINK 3232401 RING, RETAINING, EXTERNAL 7287901 HANDLE, ADJUSTER 3110010 ROLL PIN, 1/8 X 7/8 Page 8... -
Page 9: Mid-9 Tower Assembly
FZBC BICEPS CURL MID-9 TOWER ASSEMBLY - 7420301 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7420001 ASSY, WEIGHT STACK MID-9 7326301 CAP, D-TUBE-BTM 7419801 ASSY, TOWER PLASTICS-MID Page 9... -
Page 10: Plastic Tower Assembly
FZBC BICEPS CURL PLASTIC TOWER ASSEMBLY - 7419801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7318601 COVER, TOWER- TOP FRONT 7318701 COVER, TOWER- TOP REAR 7318801 COVER, TOWER- BOTTOM FRONT 7318901 COVER, TOWER- BOTTOM REAR 3236501 M4 X 0.7 PHL PAN MS ST ZN 3239101 SCREW, M5X10 PHL PAN TT ST 7765701 SHROUD, TOWER- REAR SHORT 7765601 SHROUD, TOWER- FRT SHORT RH... -
Page 11: Mid-9 Weight Stack Assembly
FZBC BICEPS CURL MID-9 WEIGHT STACK ASSEMBLY - 7420001 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7350601 ASSY, HEAD PLATE (9) 7328401 WEIGHT PLATE, 20 LB 7327601 ASSY, INCREMENT WT-5LB 7327701 ASSY, INCREMENT WT-10LB 7327801 ASSY, INCREMENT WT-15LB 7351001 SPACER, INC WT STACK... -
Page 12: Lb. Increment Weight Assembly
FZBC BICEPS CURL 5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 12... -
Page 13: Lb. Increment Weight Assembly
FZBC BICEPS CURL 10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 13... -
Page 14: Lb. Increment Weight Assembly
FZBC BICEPS CURL 15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 14... -
Page 15: Head Plate Assembly
FZBC BICEPS CURL HEAD PLATE ASSEMBLY - 7350601 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK SEE PAGE 16 FOR LEGEND Page 15... -
Page 16: Head Plate Assembly Legend
FZBC BICEPS CURL HEAD PLATE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7326701 HEAD PLATE 7347801 STEM, 9 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 8024501 SPRING, 1/2 OD X 1-1/2 7326101 KNOB, INC WT SELECTOR 3110008 ROLL PIN, 1/8 X 1-1/4 7326401 HOUSING, SELECTOR - FRONT 7326501 HOUSING, SELECTOR - REAR... -
Page 17: Image
FZBC BICEPS CURL IMAGE ________________________________________ Page 17...
