Summary of Contents for Life Fitness SODB
-
Page 1: Parts List

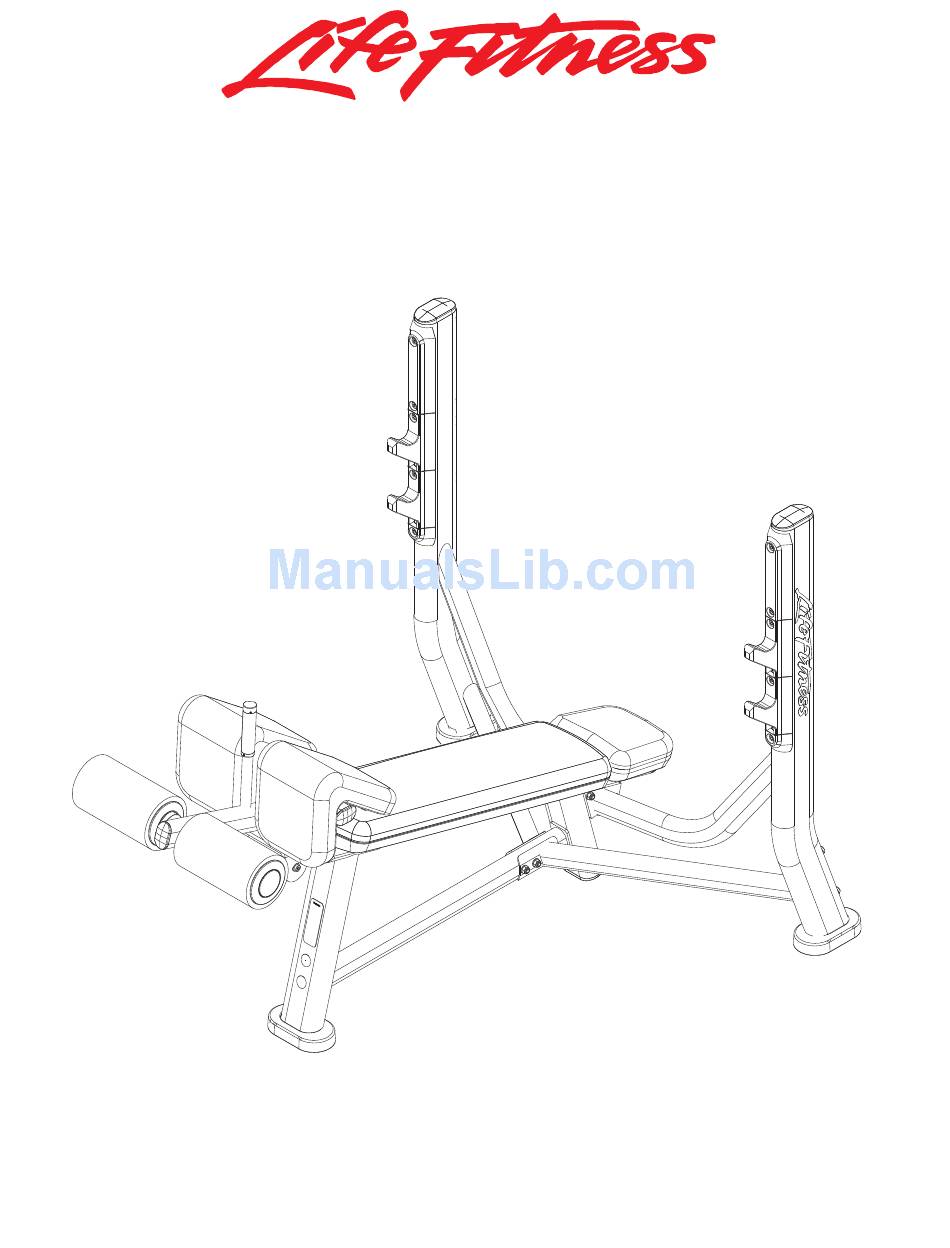

SIGNATURE SERIES SODB SIGNATURE OLYMPIC DECLINE BENCH Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SODB SIGNATURE OLYMPIC DECLINE BENCH CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND SUPPORT LEG ASSEMBLY RIGHT UPRIGHT ASSEMBLY RIGHT UPRIGHT ASSEMBLY LEGEND LEFT UPRIGHT ASSEMBLY LEFT UPRIGHT ASSEMBLY LEGEND LEG SUPPORT ASSEMBLY CENTER FRAME ASSEMBLY IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’... -
Page 3: Component Assembly
SODB SIGNATURE OLYMPIC DECLINE BENCH COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
ITEM NO. QTY. PART NO. DESCRIPTION 79015XX WLDMT, SODB, CENTER SUPPORT 79019XX PTD ASSY, SODB, SUPPORT LEG 79016XX PTD ASSY, SODB, UPRIGHT RIGHT 79018XX PTD ASSY, SODB, UPRIGHT LEFT 79021XX PTD ASSY, SODB, LEG SUPPORT 3242002 NUT, M10 X 1.5 HEX NYLOCK 3256202 SCREW, M10 X1.5 25MM... -
Page 5: Support Leg Assembly
________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 79019XX PTD ASSY, SODB, SUPPORT LEG 3251202 M10 X 1.5 X 25MM UNS HEX CS ST ZN 7340201 COVER, FOOT - STRAIGHT 7763001 FOOT: 2.50 X 4.49 3242002 NUT, M10 X 1.5 HEX NYLOCK 8106801 LABEL, SERIAL NUMBER, LARGE, BNR 7002401 LABEL;... -
Page 6: Right Upright Assembly
SODB SIGNATURE OLYMPIC DECLINE BENCH RIGHT UPRIGHT ASSEMBLY - 79016XX ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Right Upright Assembly Legend
________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 79016XX PTD ASSY, SODB, UPRIGHT RIGHT 7763001 FOOT: 2.50 X 4.49 7340201 COVER, FOOT - STRAIGHT 3102514 WASHER, FLAT 3/8" SAE ST ZN 3251202 M10 X 1.5 X 25MM UNS HEX CS ST ZN 3242002 NUT, M10 X 1.5 HEX NYLOCK... -
Page 8: Left Upright Assembly
SODB SIGNATURE OLYMPIC DECLINE BENCH LEFT UPRIGHT ASSEMBLY - 79018XX ________________________________________ SEE PAGE 9 FOR LEGEND Page 8... -
Page 9: Left Upright Assembly Legend
________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 79018XX PTD ASSY, SODB, UPRIGHT LEFT 7804601 GUARD, BAR CATCH, 10-0112-013, BNR 7804501 HOOK, BAR CATCH, 10-0112-012, BNR 3102514 WASHER, FLAT 3/8" SAE ST ZN 3251202 M10 X 1.5 X 25MM UNS HEX CS ST ZN 3242002 NUT, M10 X 1.5 HEX NYLOCK... -
Page 10: Leg Support Assembly
SODB SIGNATURE OLYMPIC DECLINE BENCH LEG SUPPORT ASSEMBLY - 79021XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78965XX WLDMT, SODB, LEG SUPPORT 7357901 SHAFT COLLAR, 1-1/2" ID ALUM 7800501 CAP, SML FLOV END 3247701 M4 X .7 HXS NO CUP ST BO 7662901 CAP, GRIP 1.25 OD... -
Page 11: Center Frame Assembly
SODB SIGNATURE OLYMPIC DECLINE BENCH CENTER FRAME ASSEMBLY - 79020XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78980XX WLDMT, SODB, CENTER FRAME 7800401 CAP, LRG FLOV END 3235601 BEARING, 6205 BALL 8160701 SHAFT, AB PRIMARY PIVOT 3261001 RING, RETAIN, INT, 50MM NOM... -
Page 12: Image
SODB SIGNATURE OLYMPIC DECLINE BENCH IMAGE ________________________________________ Page 12...
