Black Horse Model BH129 Instruction Manual

Black Horse Model BH129 Instruction Manual

Jodel robin dr400
Hide thumbs Also See for BH129:
Table of Contents

Advertisement

Quick Links

Download this manual

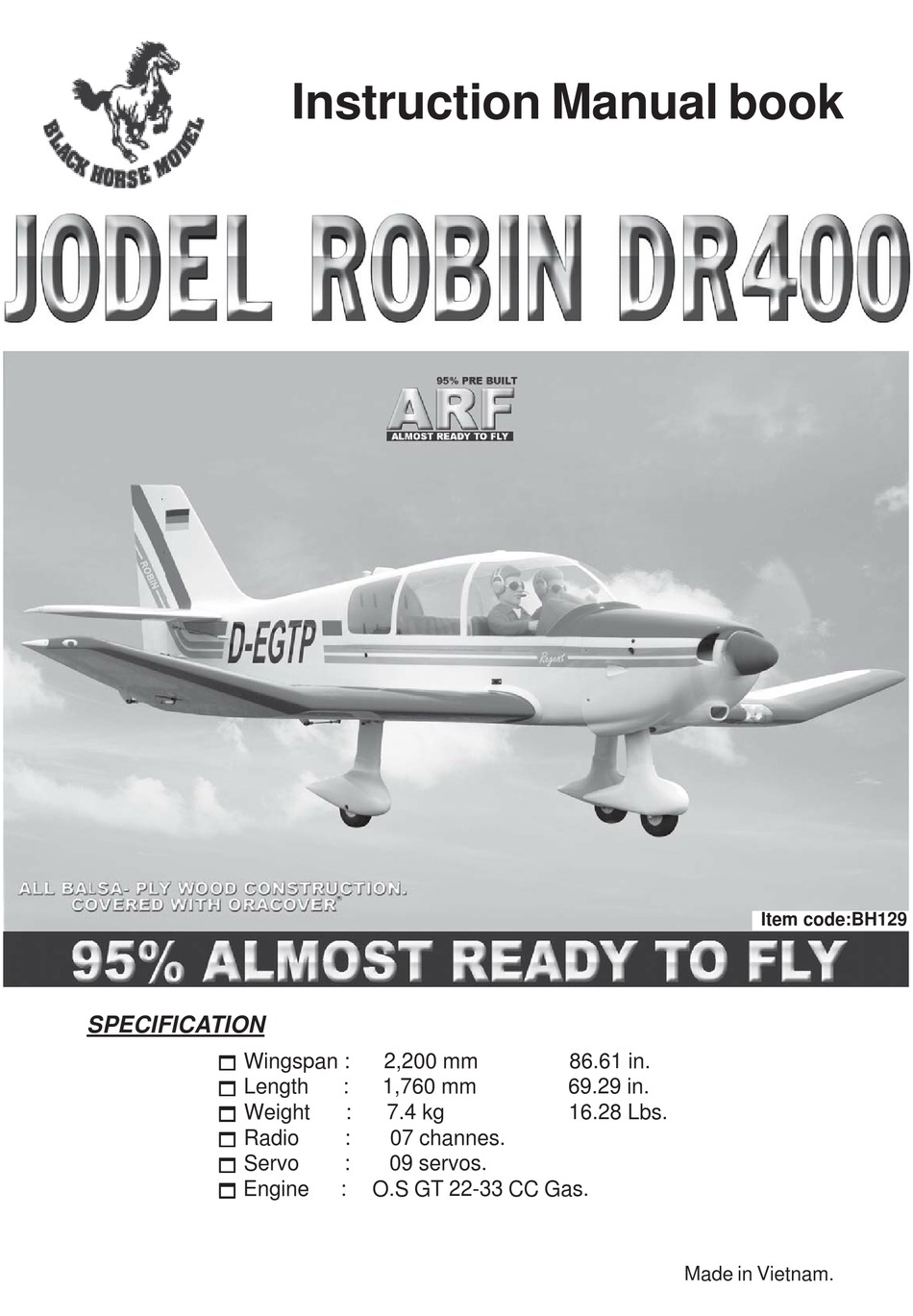

SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
Instruction Manual book
2,200 mm
:
1,760 mm
:
7.4 kg
:
07 channes.
:
09 servos.
:
O.S GT 22-33 CC Gas.
86.61 in.
69.29 in.
16.28 Lbs.
Made in Vietnam.
Item code:BH129

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH129 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model BH129

Summary of Contents for Black Horse Model BH129

  • Page 1 Instruction Manual book Item code:BH129 SPECIFICATION      Wingspan : 2,200 mm 86.61 in.      Length 1,760 mm 69.29 in.      Weight 7.4 kg 16.28 Lbs.      Radio 07 channes.

  • Page 2: Parts List

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your Jodel Robin DR400. Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL REPLACEMENT LARGE PARTS A.Cowling. E. Rudder B.Wing panel. F1. Aluminium tube wing. C.Fuselage. F2. Aluminium tube horizontal stabilizer. D.Horizontal stabilizer. G. Decal sheets. REPLACEMENT SMALL PARTS 4x15mm. 4x15mm. 3x20mm. 4x8mm.

  • Page 5: Installing The Aileron Servos

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL I. AILERON. Servo tray. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. Remove covering. Servo tray. Bottom side Top side Secure.

  • Page 6: Installing The Aileron Linkages

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL 2x10mm. A+B Epoxy PLUS glue Secure Control horn of the aileron. Repeat the procedure for the other wing half. INSTALLING THE AILERON CONTROL HORN. Repeat the procedure for the other wing...
  • Page 7 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Thread Secure. Electric wire Repeat the procedure for the other wing half. II. FLAP SERVO. 2x10mm. 1.INSTALLING THE FLAP SERVOS. Secure. Flap...
  • Page 8 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL 2.INSTALLING THE FLAP CONTROL HORN. Flap control horn A+B Epoxy PLUS glue Secure. Flap control horn. 3. INSTALLING THE FLAP LINKAGES. Installing the flap linkages as pictures below. M3 lock nut...
  • Page 9 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL MAIN GEAR INSTALATION. 4x 15mm PARTS REQUIRED 4x15mm 4x15mm 4x8mm Secure. 5x40mm 4x8mm 4x15mm...
  • Page 10 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL 4x 8mm Secure. Secure. Drill a hole hole 7mm Secure 5x 40mm...

  • Page 11: Installing The Engine Mount

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Bottom side. Secure. Repeat the procedure for the other gear. INSTALLING THE ENGINE MOUNT. See pictures below: Front view. 5x 70mm INSTALLING THE THROTTLE CABLE.  1. Install one adjustable metal connector...

  • Page 12: Installing The Stopper Assembly

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL  4. Carefully bend the third nylon tube down at a 45 degree angle (using a cigarette lighter). This tube will be vent tube to the fueling valve. Throttle cable.
  • Page 13 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL  5) Test fit the stopper assembly into the tank. It may be necessary to remove some of the flashing around the tank opening using a modeling knife. If flashing is present, make sure none of it falls into the tank.

  • Page 14: Installing The Nose Gear

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Right side. INSTALLING THE NOSE GEAR. See pictures below: 3x 20mm 4x8mm pushrod choke. 5x 40mm pushrod choke. Front view. Left side. Bottom side.
  • Page 15 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Silicon 3x20mm Secure Secure. 5x 40mm Drill a hole 7mm.
  • Page 16 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Secure. Pull-Pull cable wire. Secure. Pull-Pull cable wire. INSTALLING THE SERVO NOSE GEAR. Servo nose gear.
  • Page 17 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL COWLING.  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. Top side bottom side.

  • Page 18: Installing The Spinner

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL 3 x 12mm Trim and cut. Secure Left wing. Machine screw Bottom side. Front view. Drill a hole INSTALLING THE SPINNER. 2.5mm Install the spinner backplate, propeller and spinner cone. The spinner cone is held in...

  • Page 19: Elevator Servo Installation

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL ELEVATOR SERVO INSTALLATION.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio sys- tem.
  • Page 20 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Left elevator Bottom side. 4x15mm Right elevator Secure.

  • Page 21: Elevator Control Horn Installa- Tion

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL ELEVATOR PUSHROD INSTALLATION. ELEVATOR CONTROL HORN INSTALLA- TION.  Elevator pushrod install as same as the way of aileron pushrod. Elevator control horn install as same as the way of aileron control horn. Please see pic- M3 lock nut tures below.

  • Page 22: Rudder Installation

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Push. Top side RUDDER INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: R u d d e r servo Elevator pushrod. Elevator pushrod. Cut off the excess.

  • Page 23: Rudder Control Horn Installation

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL A + B E p o x y PLUS glue. Top side Rudder control horn. RUDDER CONTROL HORN INSTALLATION. RUDDER PUSHROD INSTALLATION. Rudder control horn install as same as the way of aileron control horn.

  • Page 24: Rudder Pushrod

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL R u d d e r C/A glue. cable. Elevator pushrod C/A glue Botom side Plastic parts of elevator and Bottom side. rudder pushrod. Cut.

  • Page 25: Installing The Switch

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL INSTALLING THE RECEIVER AND BATTERY.       Elevator pushrod. 1. Plug the servo leads and the switch lead into the receiver. You may want to plug...

  • Page 26: Wing Attachment

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL WING ATTACHMENT. Locate the aluminium wing dihedral brace. 32mm 790mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.
  • Page 27 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL INSTALLING THE TOW SERVO. Secure.
  • Page 28 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Top side. Plastic parts for Fairing 7. Antenna...
  • Page 29 JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL Accurately mark the balance point on the top of the wing on both sides of the fuselage. The balance point is located 114 mm back from the leading edge. This is the balance point at which your model should balance for your first flights.

  • Page 30: Control Throws

    JODEL ROBIN DR400 - Item code: BH129 . INSTRUCTION MANUAL CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
