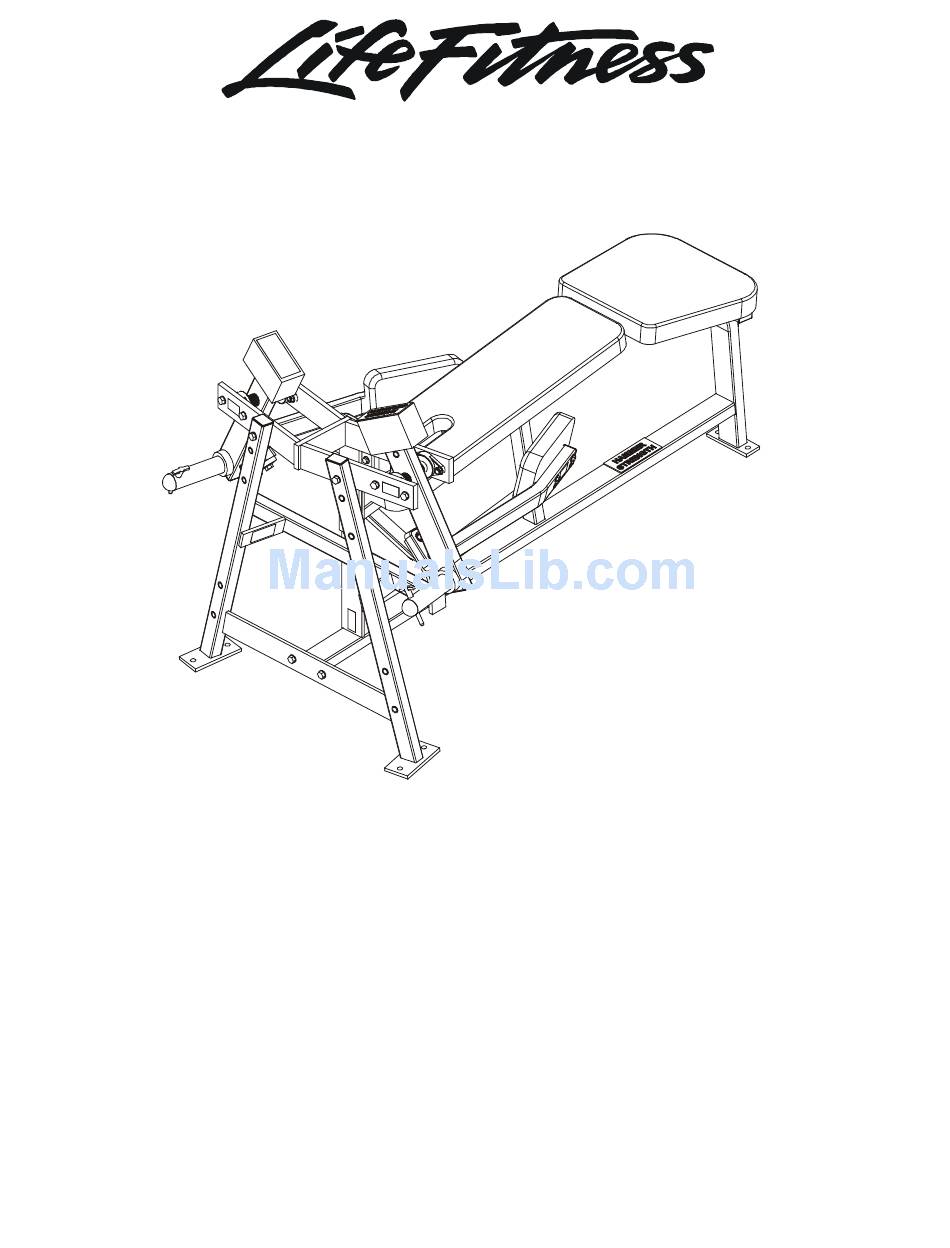

- Page 1 HAMMER STRENGTH ILRD – ISO LATERAL REAR DELTOID Customer Support Services PARTS MANUAL Page 1 of 8...
-
Page 2: Table Of Contents
ILRD – ISO LATERAL REAR DELTOID Contents PAGE ASSEMBLY COMPONENTS ...3 SEAT ASSEMBLY ...4 LEFT MOVEMENT ARM...5 FRONT FRAME ASSEMBLY...6 WORKBOX WELDMENT...7 NOTES ...8 Page 2 of 8... -
Page 3: Assembly Components
ILRD – ISO LATERAL REAR DELTOID Assembly Components ITEM NO. QTY. PART NO. DESCRIPTION ILRD-CWB-0 ASSY, ILRD WB ST ASSEMBLY ILRD-CST-0 ILRD-CFX-0 ASSY, ILRD FX MAL ASSEMBLY ILRD-CMAL-0 MAR ASSEMBLY ILRD-CMAR-0 12 WASH.5STAR 1/2" Internal Lock Washer HHB.5X1.5 1/2 X 1 1/2 Bolt NUT.5JAMFINE 1/2"... -
Page 4: Seat Assembly
ILRD – ISO LATERAL REAR DELTOID Seat Assembly ITEM NO. QTY. PART NO. DESCRIPTION ILRD-ST-0 WLDMT, ILRD ST H-NAMEPLATE Name Plate H-PEND3 1 1/2 X 3 End Cap H-PEND2 1 1/2 X 2 Endcap SERIAL NUMBER Serial Number Page 4 of 8... -
Page 5: Left Movement Arm
ILRD – ISO LATERAL REAR DELTOID Left Movement Arm, Right Movement Arm Mirror Image NOTE: LEFT MOVEMENT ARM SHOWN. RIGHT MOVEMENT ARM MIRROR IMAGE. ITEM NO. QTY. PART NO. 2 ACCORDIAN DESCRIPTION ILRD-MAL-0 WLDMT, ILRD MARM LEFT H-BENDCAP Bullet Cap... -
Page 6: Front Frame Assembly
ILRD – ISO LATERAL REAR DELTOID Front Frame Assembly ITEM NO. QTY. PART NO. 16 H-HPLUG(REG) Hole Plug DESCRIPTION ILRD-FX-0 WLDMT, ILRD FRONT FRAME WASH.5STAR 1/2" Internal Lock Washer HHB.5X1.5 1/2 X 1 1/2 Bolt H-BUMP-SML MM3 Small Bumper NUT.5JAMFINE 1/2" Jam Nut Fine... -
Page 7: Workbox Weldment
ILRD – ISO LATERAL REAR DELTOID Workbox Weldment ITEM NO.QTY. PART NO. DESCRIPTION ILRD-WB-0 WLDMT, ILRD WORKBOX WASH.5STAR 1/2" Internal Lock Washer HHB.5X1.5 1/2 X 1 1/2 Bolt H-BEAR-SML Small Bearing NUT.5JAMLOCK 1/2" Thin Lock Nut NUT.5JAMFINE 1/2" Jam Nut Fine... -
Page 8: Notes
ILRD – ISO LATERAL REAR DELTOID NOTES Page 8 of 8...
