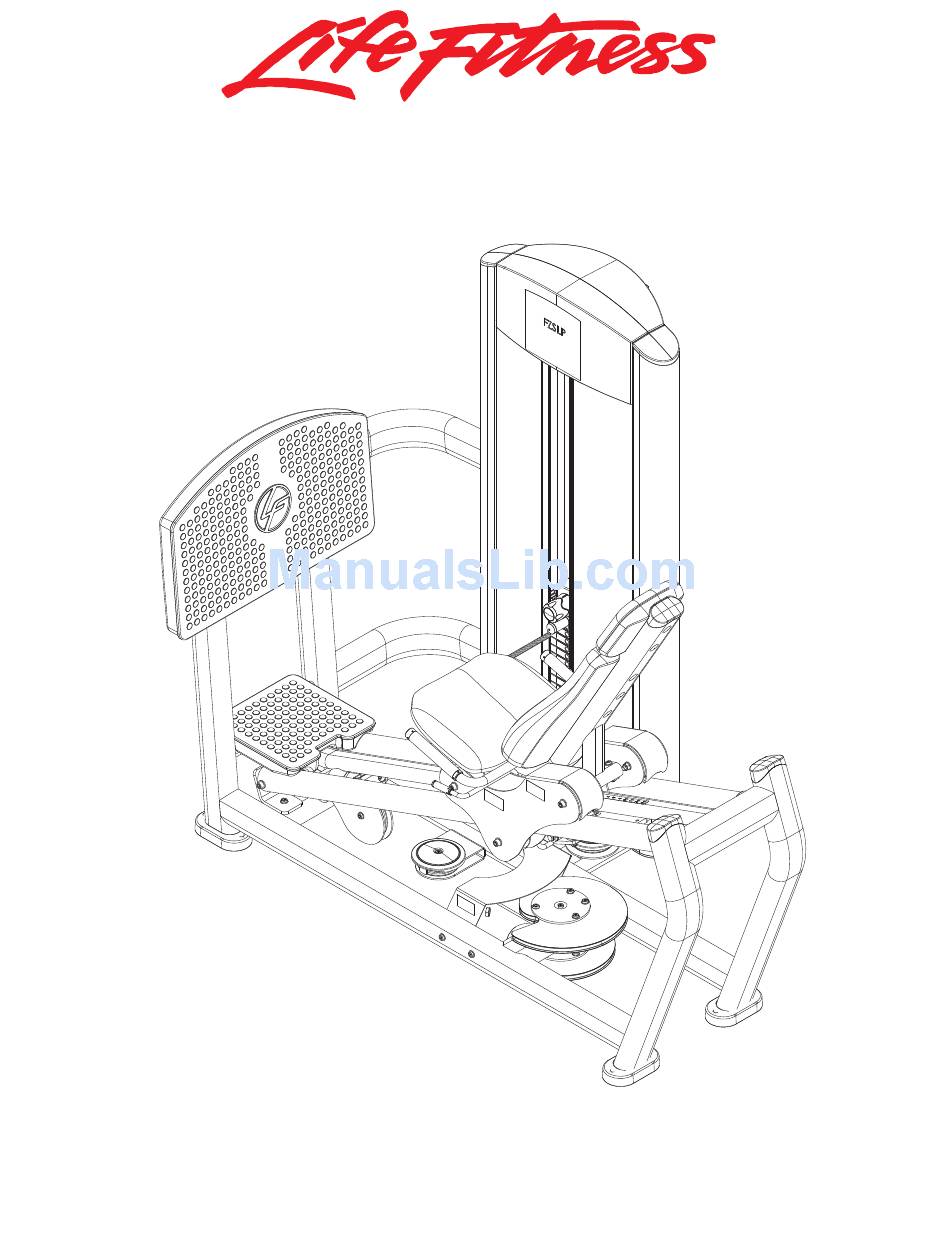

- Page 1 SIGNATURE SERIES FZSLP SEATED LEG PRESS Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
FZSLP SEATED LEG PRESS CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND SEAT ADJUSTMENT ASSEMBLY SEAT ADJUSTMENT ASSEMBLY LEGEND ADJUSTER HANDLE ASSEMBLY LOWER CABLE ASSEMBLY HIGH-19 TOWER ASSEMBLY PLASTIC TOWER ASSEMBLY HIGH-19 WEIGHT STACK ASSEMBLY 5 LB. INCREMENT WEIGHT ASSEMBLY 10 LB. -
Page 3: Component Assembly
FZSLP SEATED LEG PRESS COMPONENT ASSEMBLY ________________________________________ Page 3 46 72 SEE PAGE 5 FOR LEGEND Top Pulley... -
Page 4: Component Assembly Ii
FZSLP SEATED LEG PRESS COMPONENT ASSEMBLY II ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Component Assembly Legend
3236215 SCREW, M10 X1.5 90MM 3236207 SCREW, M10 X1.5 50MM 3238601 M10X1.5 THREADED INSERT (HEX) 7592601 ASSY, FZSLP RND CAM (LOWER) 3236214 SCREW, M10 X1.5 85MM 3235801 GRIP, 1.00 ID X .125 X 7 7322301 PLATE, 1.97 OD X .44 ID 10GA... -
Page 6: Fzslp Seated Leg Press
FZSLP SEATED LEG PRESS SEAT ADJUSTMENT ASSEMBLY - 7422901 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Seat Adjustment Assembly Legend
FZSLP SEATED LEG PRESS SEAT ADJUSTMENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7409095 WLDMT, FZ/PS-SLP SEAT ADJ SG 7778501 BLOCK, FZ/PS-SLP DELRIN 7409502 WLDMT, FZ/PS-SLP ADJ PLATED 7414301 STUD, M10 BALL END M10 X 1.5 7354301 SPACER, 7/16 ID X .75 OD X 1 3236601 WASHER, 3/8 SAE SS 3236205 SCREW, M10 X1.5 40MM... -
Page 8: Adjuster Handle Assembly
FZSLP SEATED LEG PRESS ADJUSTER HANDLE ASSEMBLY - 7450701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7412295 WLDMT, FZ/PS-SLP LEVER SG 3104901 .75" ID 1.00" OD BRONZE BUSHING 7324802 SHAFT, TAPPED 0.75 DIA X 1.800 Page 8... -
Page 9: Lower Cam Assembly
FZSLP SEATED LEG PRESS LOWER CAM ASSEMBLY - 7592601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7511495 WLDMT, FZ/PS-SLP CAM SHAFT SG 7511501 SPACER, FZ/PS INTERNAL .403 7511502 SPACER, FZ/PS INTERNAL 1.845 3243201 BEARING, 6007 BALL 7414401 CAM, FZ/PS-SLP RND... -
Page 10: High-19 Tower Assembly
FZSLP SEATED LEG PRESS HIGH-19 TOWER ASSEMBLY - 7420501 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7420201 ASSY, WEIGHT STACK HIGH-19 7326301 CAP, D-TUBE-BTM 7419901 ASSY, TOWER PLASTICS-HIGH Page 10... -
Page 11: Plastic Tower Assembly
FZSLP SEATED LEG PRESS PLASTIC TOWER ASSEMBLY - 7419901 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7318601 COVER, TOWER- TOP FRONT 7318701 COVER, TOWER- TOP REAR 7318801 COVER, TOWER- BOTTOM FRONT 7318901 COVER, TOWER- BOTTOM REAR 3236501 M4 X 0.7 PHL PAN MS ST ZN... -
Page 12: High-19 Weight Stack Assembly
FZSLP SEATED LEG PRESS HIGH-19 WEIGHT STACK ASSEMBLY - 7420201 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7350801 ASSY, HEAD PLATE (19) 7328401 WEIGHT PLATE, 20 LB... -
Page 13: Lb. Increment Weight Assembly
FZSLP SEATED LEG PRESS 5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 13... -
Page 14: Lb. Increment Weight Assembly
FZSLP SEATED LEG PRESS 10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 14... -
Page 15: Lb. Increment Weight Assembly
FZSLP SEATED LEG PRESS 15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 15... -
Page 16: Head Plate Assembly
FZSLP SEATED LEG PRESS HEAD PLATE ASSEMBLY - 7350801 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK SEE PAGE 17 FOR LEGEND Page 16... -
Page 17: Head Plate Assembly Legend
FZSLP SEATED LEG PRESS HEAD PLATE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7326701 HEAD PLATE 7349501 STEM, 19 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 8024501 SPRING, 1/2 OD X 1-1/2 7326101 KNOB, INC WT SELECTOR... -
Page 18: Image
FZSLP SEATED LEG PRESS IMAGE ________________________________________ Page 18...
