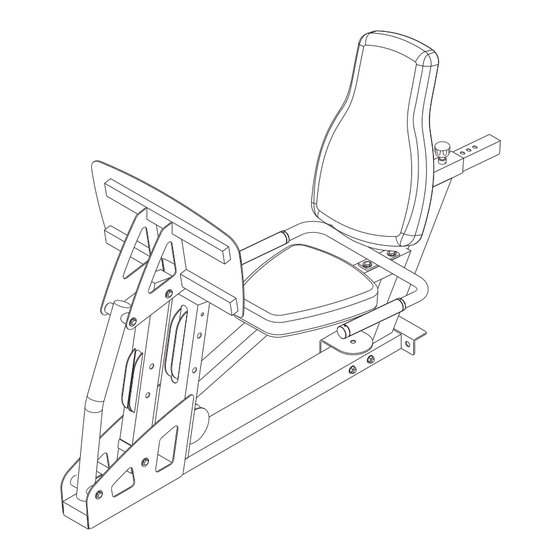

- Page 1 GLP-001 CONSUMER GYM LEG PRESS Customer Support Services PARTS MANUAL...
-
Page 2: Table Of Contents
GLP LEG PRESS ______________________________________ CONTENTS COMPONENT ASSEMBLY I COMPONENT ASSEMBLY I LEGEND COMPONENT ASSEMBLY II COMPONENT ASSEMBLY II LEGEND COMPONENT ASSEMBLY III COMPONENT ASSEMBLY IV CABLE ROUTING WEIGHT STACK ASSEMBLY SUPPLIED ACCESSORIES LAT BAR ASSEMBLY LOW ROW BAR ASSEMBLY HARDWARE BAG Page 2 PAGE... -
Page 3: Component Assembly I
GLP-001 LEG PRESS COMPONENT ASSEMBLY I ______________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8601301 ASSY, LEG PRESS FRAME ASSY, BACK ADJUST 8601701 ASSY, HANDLE 8601901 8611501 ASSY, MAIN ARM 8605701 ASSY, SECOND ARM 8605901 ASSY, FOOT PLATE 8606301 BRKT PULLEY 8594301 PAD, CONSUMER, SEAT 8594201... -
Page 4: Component Assembly Ii
GLP-001 LEG PRESS COMPONENT ASSEMBLY II ______________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8578501 CAP, END DIA 50.8 8582201 CAP, END 75 X 50 8608901 BUSHING, STEP 1 X 3/4 7128201 SHAFT, .75 OD X .52 ID X 3.960 8590601 BUMPER, 1-1/2 X 2 8601401 CAP, END, 2 X 4... -
Page 5: Component Assembly Iii
GLP-001 LEG PRESS COMPONENT ASSEMBLY III ______________________________________ ITEM NO. QTY. Page 5 PART NO. DESCRIPTION 8609901 TAPE, NON-SKID 8609801 CAP, END 1 X 2 3102801 NUT, NYLOCK 1/2-13 3102969 1/2- 13 X 4.75 HEX HEAD BOLT 7128201 SHAFT, .75 OD X .52 ID X 3.960 8608901 BUSHING, STEP 1 X 3/4 8585001... -
Page 6: Supplied Accessories
GLP-001 LEG PRESS SUPPLIED ACCESSORIES ______________________________________ ITEM NO. LIFE FITNESS GLP-001 LEG PRESS USER GUIDE GLP-001 LEG PRESS GLP-001 LEG PRESS GLP-001 LEG PRESS GLP-001 LEG PRESS GLP-001 LEG PRESS GLP-001 LEG PRESS QTY. PART NO. DESCRIPTION 8606201 MANUAL, USER'S, GLP... -
Page 7: Hardware Bag
GLP-001 LEG PRESS HARDWARE BAG ______________________________________ HARDWARE BAG PART NUMBER BAG CONTAINS: Item 3102969 3102904 3102514 3102801 3102802 7128201 8606101 8590601 8609001 Description 1/2- 13 X 4.75 HEX HEAD BOLT 3/8-16X3 UNS HEX FHB G2 ZN WASHER, FLAT 3/8 IN SAE ST ZN NUT, NYLOCK 1/2-13 VMI NUT, NYLOCK 3/8-16 SHAFT, .75 OD X .52 ID X 3.960...
